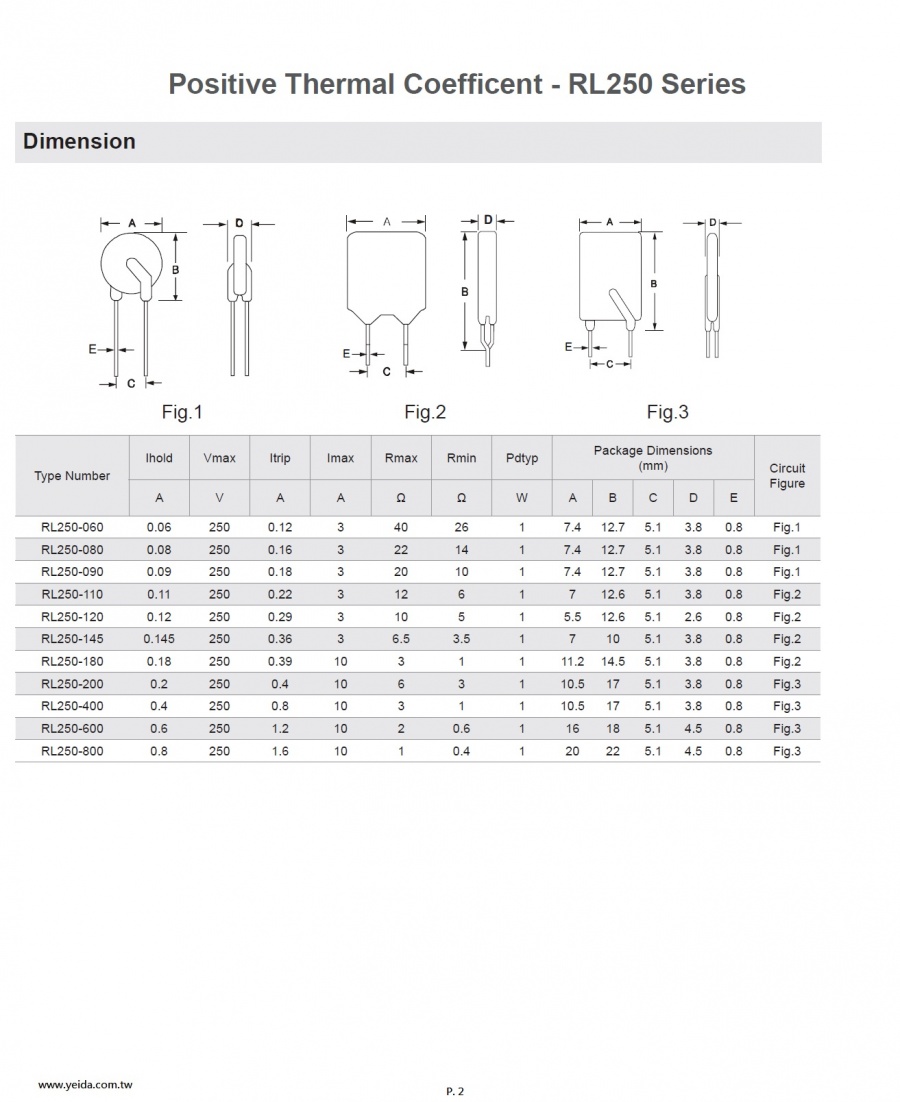

    RL250 Resettable Fuses-PPTC Positive Thermal Coefficent - RL250 Series 自恢復保險絲
    看原圖
    		代碼 YRUILON-RL250

    商品編號: YRUILON-RL250

    RL250 Resettable Fuses-PPTC Positive Thermal Coefficent - RL250 Series 自恢復保險絲



    And overcurrent protection > Resettable Fuses-PPTC

    過流與保護模塊 > 自恢復保險絲

    Positive Thermal Coefficent - RL60 Series

    Features

    1. I(hold):60~800mA
    2. 250V Operating voltages
    3. Radial leaded devices.
    4. Very high voltage surge capabilities.
    5. Available in lead-free version.
    6. Fast time–to–trip
    7. RoHS compliant, Lead- Free and Halogen-Free

    Applications


    1. Overcurrent and overtemperature
    2. protection of automotive electronics
    3. Hard disk drives
    4. PC motherboards
    5. PC peripherals
    • Point-of-sale (POS) equipment
    • PCMCIA cards
    • USB port protection
    • HDMI 1.4 Source protection
    • Computers & peripherals
    • General Electronics

    Warehouse Storage Conditions of Products

    · Storage Conditions:
    1. Storage Temperature: -10°C~+40°C
    2. Relative Humidity:≤75%RH
    3. Keep away from corrosive atmosphere and sunlight.
    · Period of Storage: 1 year

    Ih(A) It(A) Vmax(V) Imax(A) Pdmax(W) Rmin(Ω) R1max(Ω) Package
    RL72-020 0.2 0.4 75 40 0.52 1.5 4.52 RL72
    RL72-025 0.25 0.5 75 40 0.52 1 3 RL72
    RL72-030 0.3 0.6 75 40 0.59 0.76 2.13 RL72
    RL72-040 0.4 0.8 75 40 0.66 0.52 1.29 RL72
    RL72-050 0.5 1 75 40 0.8 0.41 1.17 RL72
    RL72-065 0.65 1.3 75 40 0.9 0.27 0.72 RL72
    RL72-075 0.75 1.5 75 40 0.95 0.18 0.6 RL72
    RL72-090 0.9 1.8 75 40 1 0.14 0.47 RL72
    RL72-110 1.1 2.2 75 40 1.51 0.14 0.38 RL72
    RL72-135 1.35 2.7 75 40 1.71 0.12 0.3 RL72
    RL72-160 1.6 3.2 75 40 1.98 0.09 0.22 RL72
    RL72-185 1.85 3.7 75 40 2.1 0.08 0.19 RL72
    RL72-250 2.50 5 75 40 2.5 0.05 0.13 RL72
    RL72-300 3.0 6 75 40 2.8 0.04 0.1 RL72
    RL72-375 3.75 7.5 75 40 3.2 0.03 0.08 RL72
    RL90-200 0.2 0.4 99 20 1.7 1 2.5 RL90
    RL90-250 0.25 0.5 99 20 1.75 0.8 2 RL90
    RL90-350 0.35 0.75 99 20 1.8 0.6 1.2 RL90
    RL90-550 0.55 1.1 99 20 2 0.35 0.9 RL90
    RL90-750 0.75 1.5 99 20 2.5 0.2 0.6 RL90
    RL90-900 0.9 1.8 99 20 3 0.1 0.5 RL90
    RL135-050 0.05 0.12 135 1 0.52 18.5 65 RL135
    RL135-080 0.08 0.19 135 1.2 0.52 7.4 26 RL135
    RL135-100 0.1 0.2 135 2 0.59 5.6 20.1 RL135
    RL135-120 0.12 0.3 135 1.2 0.66 3 12 RL135
    RL135-150 0.15 0.3 135 2 0.8 2.3 10.7 RL135
    RL135-160 0.16 0.37 135 2 0.9 2.5 7.8 RL135
    RL135-170 0.17 0.34 135 2 0.95 2 10.8 RL135
    RL135-200 0.2 0.4 135 2 1 1.7 6.1 RL135



    型號/PDF Ih(A) It(A) Vmax(V) Imax(A) Pdmax(W) Rmin(Ω) R1max(Ω) Package
    RL60-010 0.1 0.2 60 40 0.38 2.5 7.5 RL60
    RL60-017 0.17 0.34 60 40 0.48 3.3 8 RL60
    RL60-020 0.2 0.4 60 40 0.41 1.83 4.4 RL60
    RL60-025 0.25 0.5 60 40 0.45 1.25 3 RL60
    RL60-030 0.3 0.6 60 40 0.49 0.88 2.1 RL60
    RL60-040 0.4 0.8 60 40 0.56 0.55 1.29 RL60
    RL60-050 0.5 1 60 40 0.77 0.5 1.17 RL60
    RL60-065 0.65 1.3 60 40 0.88 0.31 0.72 RL60
    RL60-075 0.75 1.5 60 40 0.92 0.25 0.6 RL60
    RL60-090 0.90 1.8 60 40 0.99 0.2 0.47 RL60
    RL60-110 1.1 2.2 60 40 1.5 0.15 0.38 RL60
    RL60-135 1.35 2.7 60 40 1.7 0.12 0.3 RL60
    RL60-160 1.60 3.2 60 40 1.9 0.09 0.22 RL60
    RL60-185 1.85 3.7 60 40 2.1 0.08 0.19 RL60
    RL60-250 2.5 5 60 40 2.5 0.05 0.13 RL60
    RL60-300 3.0 6 60 40 2.8 0.04 0.1 RL60
    RL60-375 3.75 7.5 60 40 3.2 0.03 0.08 RL60
    RL250-030 0.03 0.06 250/60 1 1 35 90 RL250
    RL250-040 0.04 0.08 250/60 3 1 27 65 RL250
    RL250-060 0.06 0.12 250/60 3 1 20 45 RL250
    RL250-080 0.08 0.16 250/60 3 1 14 33 RL250
    RL250-090 0.09 0.18 250/60 3 1 7 20 RL250
    RL250-110 0.11 0.22 250/60 3 1 5 14 RL250
    RL250-120 0.12 0.24 250/60 3 1 8 16 RL250
    RL250-145 0.145 0.29 250/60 3 1 5.4 14 RL250
    RL250-180 0.18 0.36 250/60 10 1 1 4.5 RL250
    RL250-200 0.2 0.4 250/60 10 1 0.8 3 RL250
    RL250-400 0.4 0.8 250/60 10 1 0.7 3 RL250
    RL250-600 0.6 1.2 250/60 10 1 0.6 2 RL250
    RL250-800 0.8 1.6 250/60 10 1 0.4 1 RL250
    RL600-150 0.15 0.3 600/60 3 1 6 22 RL600
    RL600-160 0.16 0.37 600/60 3 1.4 2.5 7.8 RL600
    RLVR240-012 0.12 0.3 240 1 1 3 6.5 RLVR240
    RLVR240-016 0.16 0.37 240 3 1.5 2.5 4.1 RLVR240
    RLVR240-025 0.25 0.56 240 3 1.5 1.3 2.1 RLVR240
    RLVR240-033 0.33 0.74 240 3 1 0.5 0.77 RLVR240
    RLVR240-040 0.4 0.9 240 3 1.5 0.6 0.97 RLVR240
    RLVR240-055 0.55 1.25 240
