    Gas Discharge Tubes - SMD3216 Series 陶瓷氣體放電管
    看原圖
    		YRUILON-SMD3216

    商品編號: YRUILON-SMD3216

    Gas Discharge Tubes - SMD3216 Series 陶瓷氣體放電管



    Gas Discharge Tubes - SMD3216 Series 陶瓷氣體放電管

    GDT introduction:Gas discharge tubes (GDT) use noble gasses enclosed
    in ceramic tubes to provide an alternate circuit path for voltage spikes.The
    ceramic envelope and with nickel connectors allow for high loads and Ruilon
    offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA.
    The breakdown voltages of the devices have a wide range (up to 20%
    tolerance).Major applications are high frequency telecommunication
    lines,stations, security systems,HID and high quality Surge Protection
    Devices (SPD).

    GDT介紹：氣體放電管（GDT）採用封閉式高尚的氣體
    在陶瓷管，以提供電壓的備用電路路徑spikes.The
    陶瓷信封和鎳連接器可用於高負載和Ruilon
    提供了在20KA，40KA，50KA，60KA，100KA和150KA功能的產品。
    器件的擊穿電壓具有寬範圍（高達20％的
    公差）.Major應用高頻電信
    線路，車站，安全系統，HID和高品質的浪湧保護
    設備（SPD）。

    Features

    1. RoHS & HF compliant
    2. SMD Structure
    3. DC Spark-over voltage: 75-600V
    4. Low Capacitance
    5. Agency Recognition : UL
    6. Operating temperature : -30°C ~ +85°C
    Storage temperature: -40°C ~ +115°C

    Recommended Applications


    1. Cable Modem
    2. xDSL
    3. Set-Top Box
    4. TV sets
    5. Power supplier
    6. Consumer electronics

    Warehouse Storage Conditions of Products

    · Storage Conditions:
    1. Storage Temperature: -10°C~+40°C
    2. Relative Humidity:≤75%RH
    3. Keep away from corrosive atmosphere and sunlight.
    · Period of Storage: 1 year

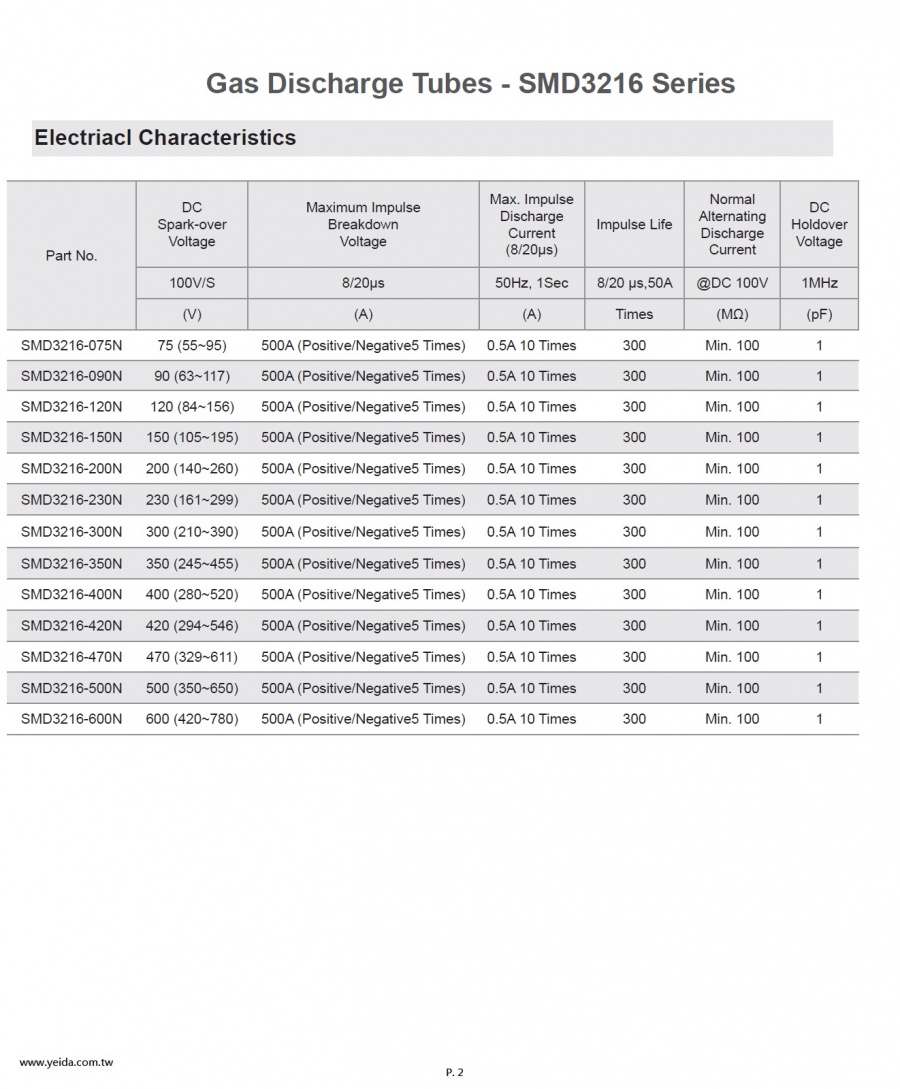

    100V/S(V) 1KV/us(V) 8/20us(KA) Times(100A) Cj(pF) 50Hz,1sec(A) Package
    SMD3216-075N 75 700 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-090N 90 700 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-120N 120 700 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-150N 150 700 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-200N 200 700 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-230N 230 700 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-300N 300 700 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-350N 350 700 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-400N 400 700 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-420N 420 800 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-470N 470 900 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-500N 500 1000 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD3216-600N 600 1100 0.5 300 0.8 0.5 3.2*1.6*1.6MM
    SMD4532-070NF 70 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-075NF 75 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-090NF 90 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-120NF 120 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-150NF 150 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-200NF 200 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-230NF 230 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-300NF 300 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-350NF 350 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-400NF 400 700 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-420NF 420 800 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-470NF 470 900 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-500NF 500 1000 3 300 1 3 4.5*3.2*2.7MM
    SMD4532-600NF 600 1100 3 300 1 3 4.5*3.2*2.7MM
