    首頁 > > ALPHA-Manhattan™ Audio/Video Shielded Cable 隔離影音儀表傳輸用線

    ALPHA- Manhattan™ Audio/Video Cable (Awg 24, 22, 20 ) 300 V Braid Shield, Multiconductor, PE, PVC 影像音響銅網隔離控制电缆
    看原圖

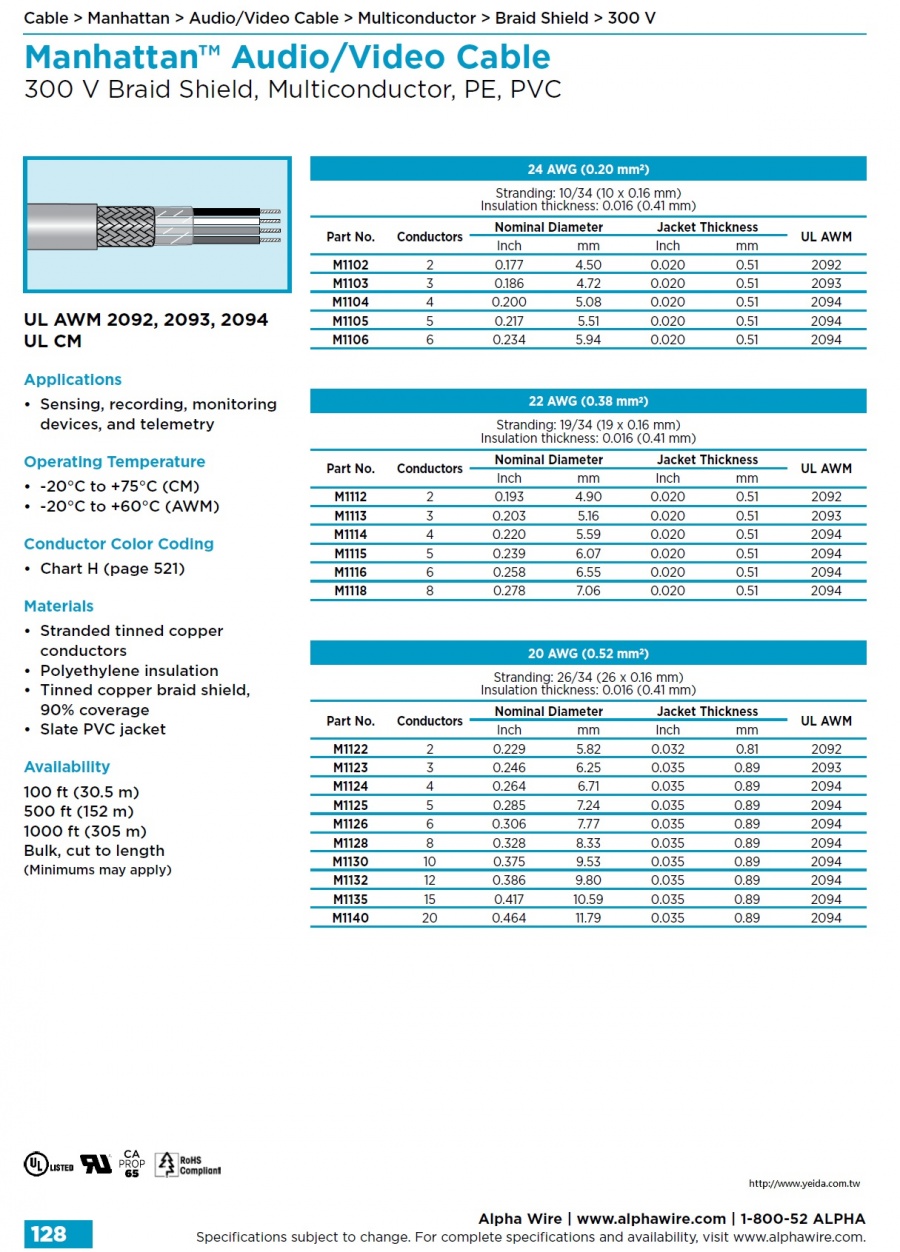

    ALPHA-M1102

    商品編號: ALPHA-M1102

    ALPHA- Manhattan™ Audio/Video Cable (Awg 24, 22, 20 ) 300 V Braid Shield, Multiconductor, PE, PVC 影像音響銅網隔離控制电缆



    Manhattan™ Audio/Video Cable
    300 V Braid Shield, Multiconductor, PE, PVC
    UL AWM 2092, 2093, 2094
    UL CM


    Applications
    • Sensing, recording, monitoring devices, and telemetry
    Operating Temperature
    • -20°C to +75°C (CM)
    • -20°C to +60°C (AWM)
    Conductor Color Coding
    • Chart H (page 521)
    Materials
    • Stranded tinned copper conductors
    • Polyethylene insulation
    • Tinned copper braid shield, 90% coverage
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)




    可靠、持久耐用的电缆是任何电气系统的核心,Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史,是深受信赖的可靠电缆。无论您需要的是一根电源线,还是在噪音环境中保持音视频信号完整性的电缆,您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室,我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

    Part # Type Shielding Voltage  AWG # of Elements  Insulation Material Jacket Material



    Jacket Diameter
      M1102 Multi-Conductor BRAID 300 24 2 PE PVC 0.155 CA Prop 65, NEC CM, UL AWM 2092
      M1103 Multi-Conductor BRAID 300 24 3 PE PVC 0.18
      M1104 Multi-Conductor BRAID 300 24 4 PE PVC 0.2
      M1105 Multi-Conductor BRAID 300 24 5 PE PVC 0.21
      M1106 Multi-Conductor BRAID 300 24 6 PE PVC 0.22
      M1112 Multi-Conductor BRAID 300 22 2 PE PVC 0.182
      M1113 Multi-Conductor BRAID 300 22 3 PE PVC 0.202
      M1114 Multi-Conductor BRAID 300 22 4 PE PVC 0.216
      M1115 Multi-Conductor BRAID 300 22 5 PE PVC 0.233
      M1116 Multi-Conductor BRAID 300 22 6 PE PVC 0.251
      M1118 Multi-Conductor BRAID 300 22 8 PE PVC 0.28
      M1122 Multi-Conductor BRAID 300 20 2 PE PVC 0.229
      M1123 Multi-Conductor BRAID 300 20 3 PE PVC 0.25
      M1124 Multi-Conductor BRAID 300 20 4 PE PVC 0.264
      M1125 Multi-Conductor BRAID 300 20 5 PE PVC 0.27
      M1126 Multi-Conductor BRAID 300 20 6 PE PVC 0.3
      M1128 Multi-Conductor BRAID 300 20 8 PE PVC 0.329
      M1130 Multi-Conductor BRAID 300 20 10 PE PVC 0.376
      M1132 Multi-Conductor BRAID 300 20 12 PE PVC 0.38
      M1135 Multi-Conductor BRAID 300 20 15 PE PVC 0.411
      M1140 Multi-Conductor BRAID 300 20 20 PE PVC 0.458 CA Prop 65, UL AWM 2094, UL CM
