    首頁 > > ALPHA-Manhattan™ Audio/Video Shielded Cable 隔離影音儀表傳輸用線

    ALPHA- Manhattan™ Audio/Video Cable (Awg 18, 16 ) 300 V Braid Shield, Multiconductor, PE, PVC 影像音響銅網隔離控制电缆
    看原圖

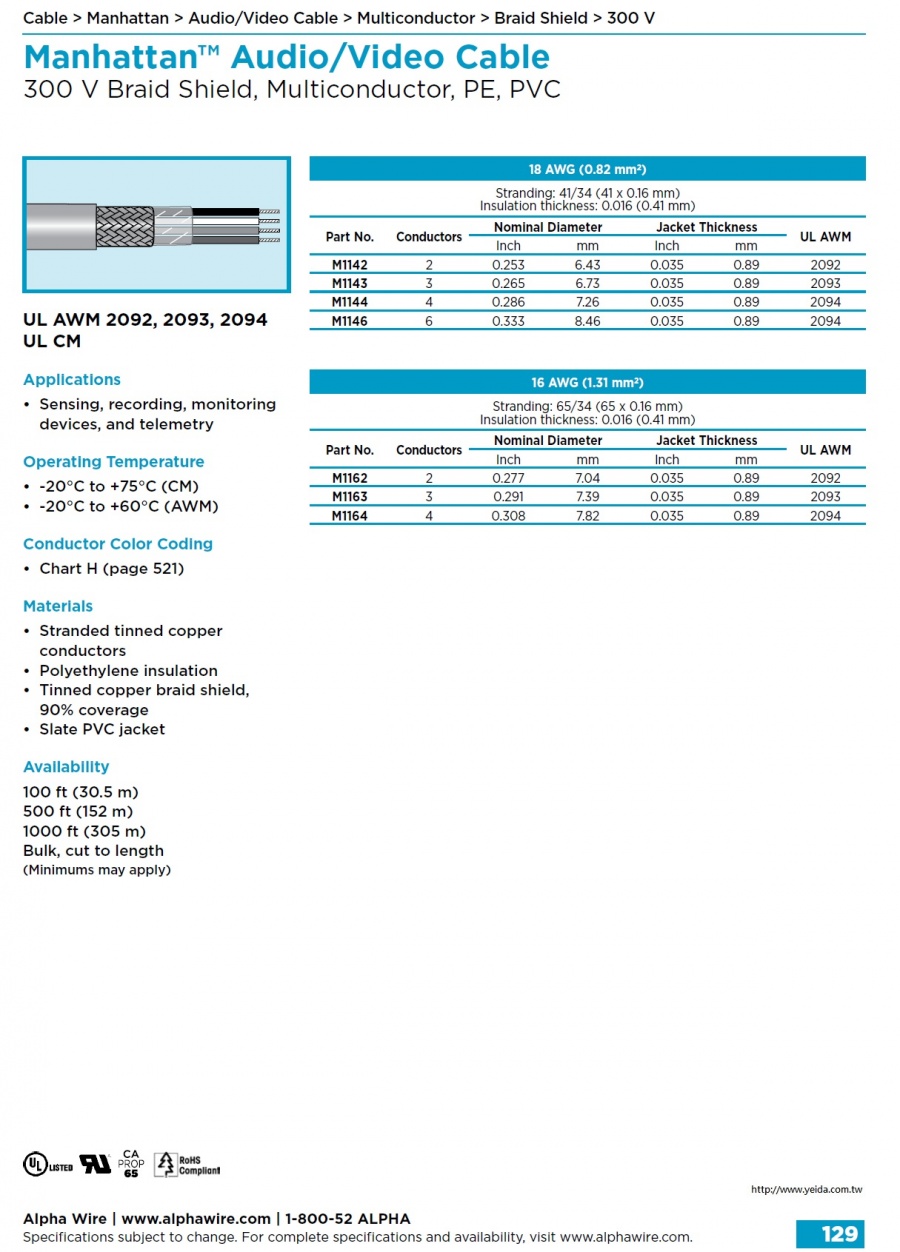

    		ALPHA-M1142

    商品編號: ALPHA-M1142

    ALPHA- Manhattan™ Audio/Video Cable (Awg 18, 16 ) 300 V Braid Shield, Multiconductor, PE, PVC 影像音響銅網隔離控制电缆


    Manhattan™ Audio/Video Cable
    300 V Braid Shield, Multiconductor, PE, PVC
    UL AWM 2092, 2093, 2094
    UL CM
    　

    Applications
    • Sensing, recording, monitoring devices, and telemetry
    Operating Temperature
    • -20°C to +75°C (CM)
    • -20°C to +60°C (AWM)
    Conductor Color Coding
    • Chart H (page 521)
    Materials
    • Stranded tinned copper conductors
    • Polyethylene insulation
    • Tinned copper braid shield, 90% coverage
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)

    可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。
    Part # Type Shielding Voltage　 AWG # of Elements　 Insulation Material Jacket Material



    		 Jacket Diameter
      M1142 Multi-Conductor BRAID 300 18 2 PE PVC 0.253 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2092, UL CM
      M1143 Multi-Conductor BRAID 300 18 3 PE PVC 0.265 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2093, UL CM
      M1144 Multi-Conductor BRAID 300 18 4 PE PVC 0.286 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2094, UL CM
      M1146 Multi-Conductor BRAID 300 18 6 PE PVC 0.333 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2094, UL CM
      M1162 Multi-Conductor BRAID 300 16 2 PE PVC 0.281 CA Prop 65, NEC CM, UL AWM 2092
      M1163 Multi-Conductor BRAID 300 16 3 PE PVC 0.296 CA Prop 65, NEC CM, UL AWM 2093
      M1164 Multi-Conductor BRAID 300 16 4 PE PVC 0.308 CA Prop 65, UL AWM 2094, UL CM
