商品編號: ALPHA-M13222

ALPHA- Manhattan™ Audio/Video Cable (Awg 24, 22 ) 300 V Foil Shield, Multiconductor, PE or SR-PVC, PVC 影像音響儀表鋁箔隔離控制电缆

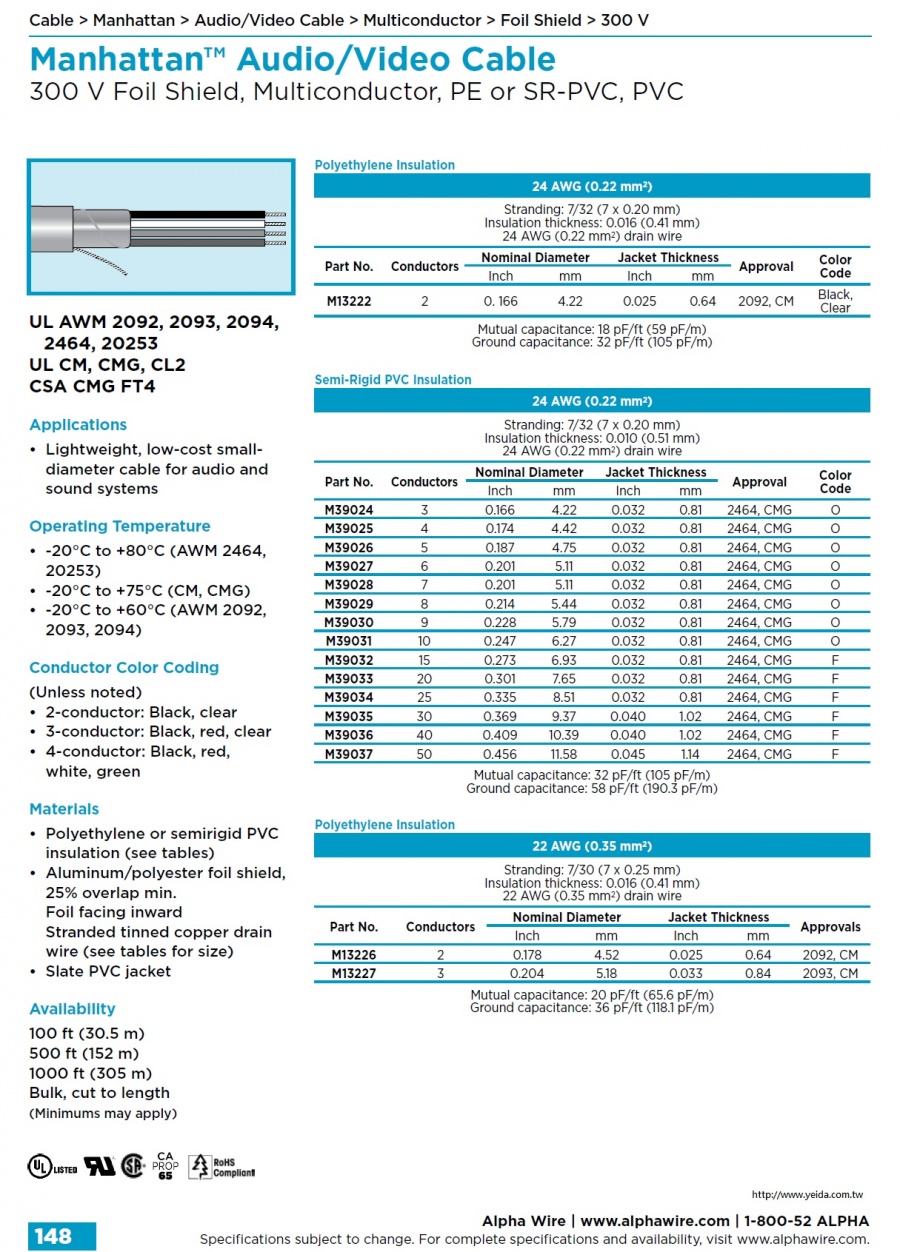

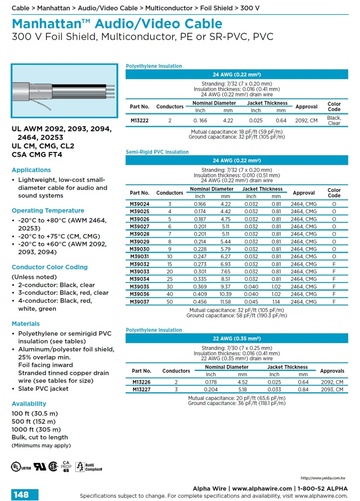

Manhattan™ Audio/Video Cable
300 V Foil Shield, Multiconductor, PE or SR-PVC, PVC
UL AWM 2092, 2093, 2094, 2464, 20253
UL CM, CMG, CL2
CSA CMG FT4
　

Applications
• Lightweight, low-cost small diameter cable for audio and sound systems
Operating Temperature
• -20°C to +80°C (AWM 2464, 20253)
• -20°C to +75°C (CM, CMG)
• -20°C to +60°C (AWM 2092, 2093, 2094)
Conductor Color Coding (Unless noted)
• 2-conductor: Black, clear
• 3-conductor: Black, red, clear
• 4-conductor: Black, red, white, green
Materials
• Polyethylene or semirigid PVC insulation (see tables)
• Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
     Stranded tinned copper drain wire (see tables for size)
• Slate PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)
