    首頁 > > ALPHA-Manhattan™ Audio/Video Shielded Cable 隔離影音儀表傳輸用線

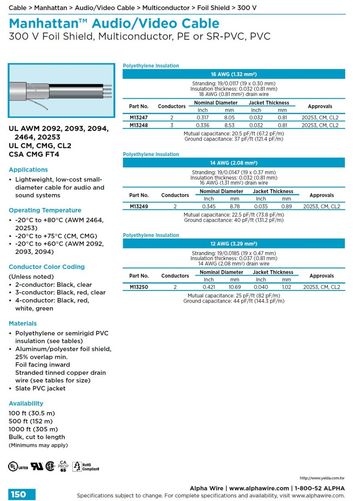

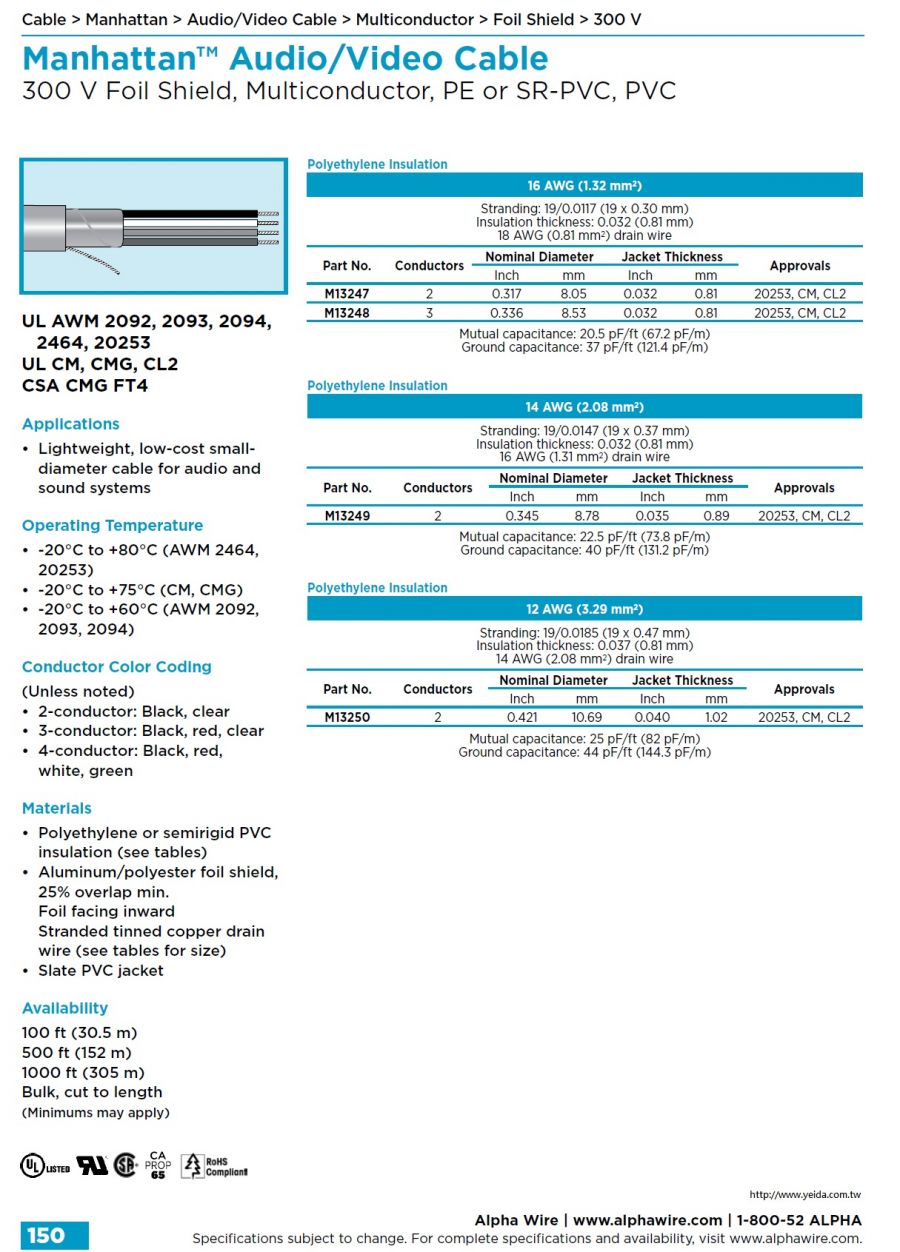

    ALPHA- Manhattan™ Audio/Video Cable (Awg 16, 14, 12 ) 300 V Foil Shield, Multiconductor, PE or SR-PVC, PVC 影像音響儀表鋁箔隔離控制电缆
    看原圖
    		ALPHA-M13247

    商品編號: ALPHA-M13247

    ALPHA- Manhattan™ Audio/Video Cable (Awg 16, 14, 12 ) 300 V Foil Shield, Multiconductor, PE or SR-PVC, PVC 影像音響儀表鋁箔隔離控制电缆


    Manhattan™ Audio/Video Cable
    300 V Foil Shield, Multiconductor, PE or SR-PVC, PVC
    UL AWM 2092, 2093, 2094,
    2464, 20253 UL CM, CMG, CL2
    CSA CMG FT4
    　

    Applications
    • Lightweight, low-cost small diameter cable for audio and sound systems
    Operating Temperature
    • -20°C to +80°C (AWM 2464, 20253)
    • -20°C to +75°C (CM, CMG)
    • -20°C to +60°C (AWM 2092, 2093, 2094)
    Conductor Color Coding (Unless noted)
    • 2-conductor: Black, clear
    • 3-conductor: Black, red, clear
    • 4-conductor: Black, red, white, green
    Materials
    • Polyethylene or semirigid PVC insulation (see tables)
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
         Stranded tinned copper drain wire (see tables for size)
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)

    Manhattan™ Audio/Video Cable
    300 V Foil Shield, Multiconductor, PE or SR-PVC, PVC
    UL AWM 2092, 2093, 2094,
    2464, 20253 UL CM, CMG, CL2
    CSA CMG FT4
    　

    Applications
    • Lightweight, low-cost small diameter cable for audio and sound systems
    Operating Temperature
    • -20°C to +80°C (AWM 2464, 20253)
    • -20°C to +75°C (CM, CMG)
    • -20°C to +60°C (AWM 2092, 2093, 2094)
    Conductor Color Coding (Unless noted)
    • 2-conductor: Black, clear
    • 3-conductor: Black, red, clear
    • 4-conductor: Black, red, white, green
    Materials
    • Polyethylene or semirigid PVC insulation (see tables)
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
         Stranded tinned copper drain wire (see tables for size)
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)
    Part # Cable Type Cable Shielding

    　

    		 Cable Voltage　 Cable AWG NumberOf Elements　 Insulation Material CableJacket Material CableJacket Diameter
      M13222 Multi-Conductor FOIL 300 24 2 PE PVC 0.168 CA Prop 65, CSA CM, UL AWM 2092, UL CM
      M13226 Multi-Conductor FOIL 300 22 2 PE PVC 0.175 CA Prop 65, CSA CM, UL AWM 2092, UL CM
      M13227 Multi-Conductor FOIL 300 22 3 PE PVC 0.195 CA Prop 65, CSA CM, UL AWM 2093, UL CM
      M13229 Multi-Conductor FOIL 300 22 2 PVC PVC 0.189 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2464, UL CMG
      M13232 Multi-Conductor FOIL 300 20 2 PE PVC 0.204 CA Prop 65, CSA CM, UL AWM 2092, UL CM
      M13233 Multi-Conductor FOIL 300 20 3 PE PVC 0.221 CA Prop 65, CSA CM, UL AWM 2093, UL CM
      M13242 Multi-Conductor FOIL 300 18 2 PE PVC 0.23 CA Prop 65, CSA CM, UL AWM 2092, UL CM
      M13243 Multi-Conductor FOIL 300 18 3 PE PVC 0.246 CA Prop 65, CSA CM, UL AWM 2093, UL CM
      M13244 Multi-Conductor FOIL 300 18 4 SR-PVC PVC 0.249 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2464, UL CMG
      M13247 Multi-Conductor FOIL 600 16 2 PE PVC 0.314 CA Prop 65, CSA CL2, CSA FT4, UL AWM 20253, UL CM
      M13248 Multi-Conductor FOIL 600 16 3 PE PVC 0.333
      M13249 Multi-Conductor FOIL 600 14 2 PE PVC 0.345
    　 M13250 Multi-Conductor FOIL 600 12 2 PE PVC 0.418
