商品編號: ALPHA-M14429

ALPHA- Manhattan™ Audio/Video Cable (Awg 20 ) 300 V Foil Shield, Multiconductor, PVC, PVC 影像音響儀表鋁箔隔離控制电缆

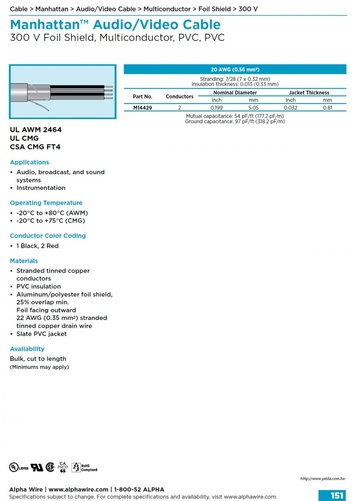

Manhattan™ Audio/Video Cable
300 V Foil Shield, Multiconductor, PVC, PVC
UL AWM 2464 UL CMG
CSA CMG FT4

Applications
• Audio, broadcast, and sound systems
• Instrumentation
Operating Temperature
• -20°C to +80°C (AWM)
• -20°C to +75°C (CMG)
Conductor Color Coding
• 1 Black, 2 Red
Materials
• Stranded tinned copper conductors
• PVC insulation
• Aluminum/polyester foil shield, 25% overlap min.
     Foil facing outward 22 AWG (0.35 mm2) stranded
     tinned copper drain wire
• Slate PVC jacket
Availability
Bulk, cut to length
(Minimums may apply)

可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。
