商品編號: ALPHA-M14461
ALPHA- Manhattan™ Audio/Video Microphone Cable 300 V Braid Shield, PVC, PVC 影像音響麥克風電線

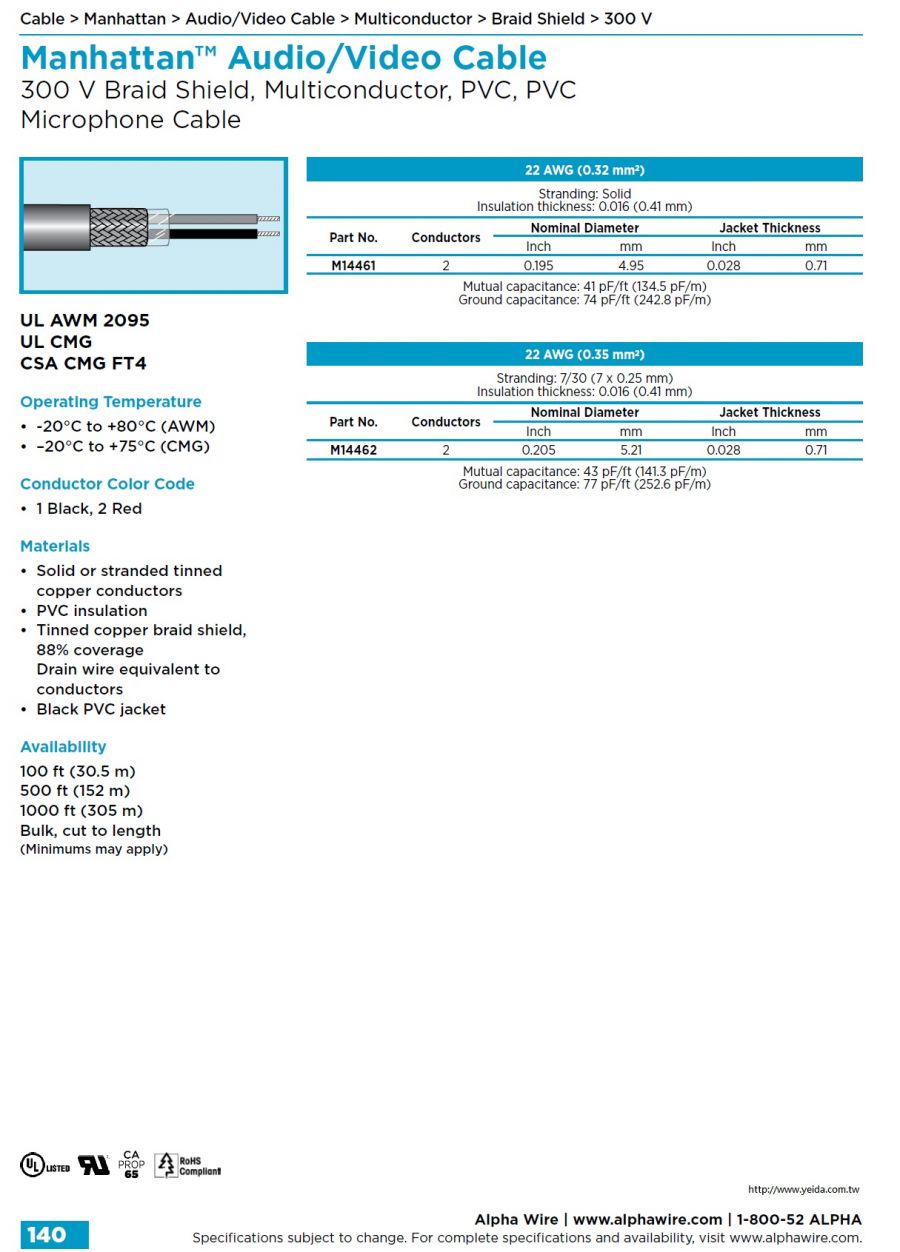

Manhattan™ Audio/Video Cable
300 V Braid Shield, Multiconductor, PVC, PVC
Microphone Cable
UL AWM 2095 UL CMG
CSA CMG FT4
Operating Temperature
• -20°C to +80°C (AWM)
• –20°C to +75°C (CMG)
Conductor Color Code
• 1 Black, 2 Red
Materials
• Solid or stranded tinned copper conductors
• PVC insulation
• Tinned copper braid shield, 88% coverage
Drain wire equivalent to conductors
• Black PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)
可靠、持久耐用的电缆是任何电气系统的核心,Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史,是深受信赖的可靠电缆。无论您需要的是一根电源线,还是在噪音环境中保持音视频信号完整性的电缆,您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。
From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.
从对讲机系统到广播播音室,我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。
Part # |
Cable Type |
Cable
Shielding
|
Cable Voltage |
AWG |
Number Of Elements |
Insulation Material |
Jacket Material |
OD |
|
M14461 |
Conductor |
BRAID |
300 |
22 |
2 |
PVC |
PVC |
0.195 |
CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095, UL CMG |
|
M14462 |
Conductor |
BRAID |
300 |
22 |
2 |
PVC |
PVC |
0.205 |
|
|
M3202 |
Multi-Conductor |
BRAID |
300 |
22 |
2 |
PVC |
PVC |
0.175 |
CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095 |
|
M3204 |
Multi-Conductor |
BRAID |
300 |
22 |
4 |
PVC |
PVC |
0.199 |
|
|
M3261 |
Conductor |
Spiral Tin Cu Wrap |
300 |
22 |
1 |
PVC |
PVC |
0.12 |
CA Prop 65, CSA CMG, CSA FT4, UL AWM 1108, UL CMG |
|
M3262 |
Multi-Conductor |
Spiral Tin Cu Wrap |
300 |
22 |
2 |
PVC |
PVC |
0.17 |
CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095, UL CMG |
|
M3263 |
Multi-Conductor |
Spiral Tin Cu Wrap |
300 |
22 |
3 |
PVC |
PVC |
0.175 |
|
M3264 |
Multi-Conductor |
Spiral Tin Cu Wrap |
300 |
22 |
4 |
PVC |
PVC |
0.19 |
|
M3266 |
Multi-Conductor |
Spiral Tin Cu Wrap |
300 |
22 |
6 |
PVC |
PVC |
0.235
|
|
|
