ALPHA- Manhattan™ Audio/Video Cable (Awg 24+22, 22) 300 V Unshielded and Shielded, Multiconductor Composite PVC/PE/PP, PVC 複合式影像音響無隔+鋁箔隔離控制电缆

ALPHA-M14477

商品編號: ALPHA-M14477

ALPHA- Manhattan™ Audio/Video Cable (Awg 24+22, 22) 300 V Unshielded and Shielded, Multiconductor Composite PVC/PE/PP, PVC 複合式影像音響無隔+鋁箔隔離控制电缆

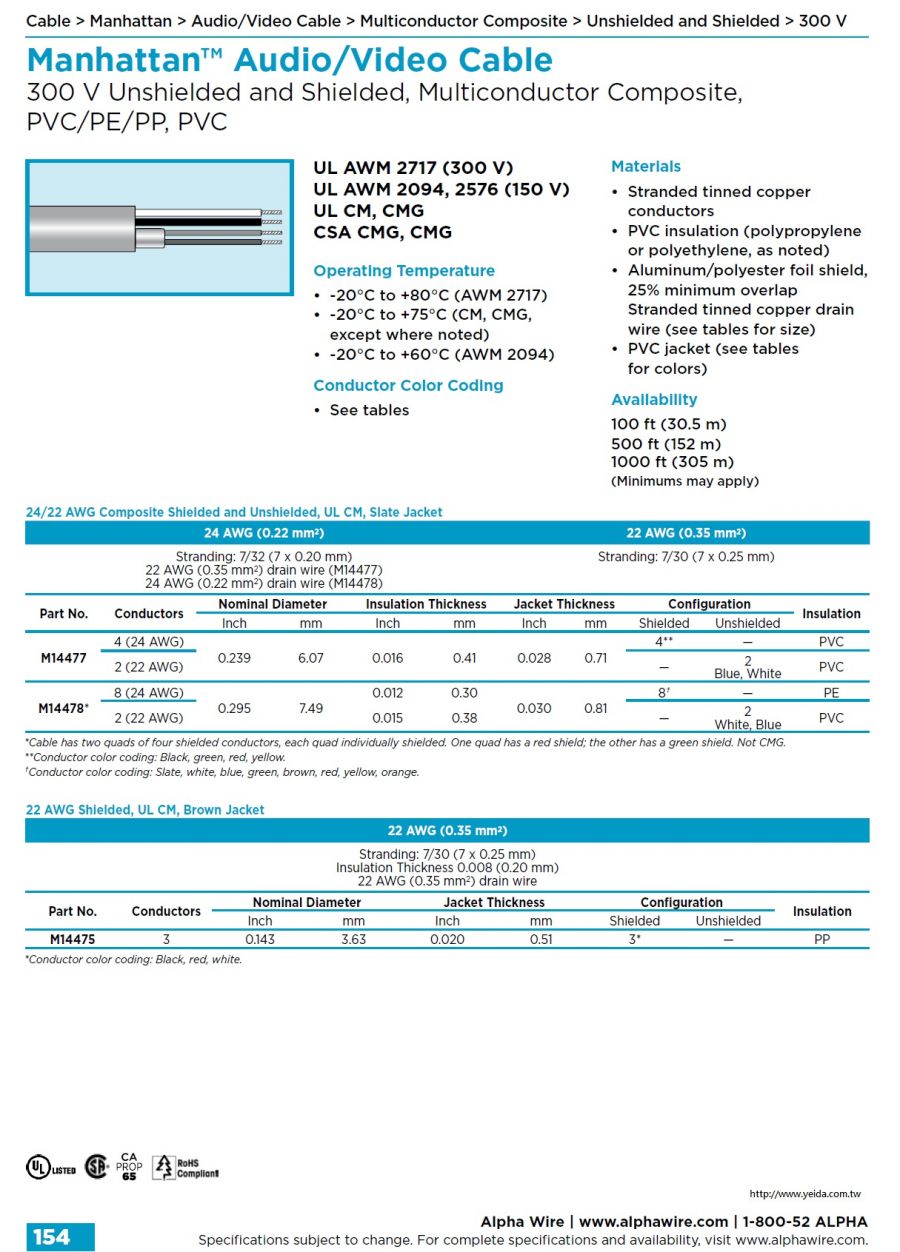

Manhattan™ Audio/Video Cable
300 V Unshielded and Shielded, Multiconductor Composite,
PVC/PE/PP, PVC
UL AWM 2717 (300 V)
UL AWM 2094, 2576 (150 V)
UL CM, CMG
CSA CMG, CMG

Operating Temperature
• -20°C to +80°C (AWM 2717)
• -20°C to +75°C (CM, CMG, except where noted)
• -20°C to +60°C (AWM 2094)
Conductor Color Coding
• See tables
Materials
• Stranded tinned copper conductors
• PVC insulation (polypropylene or polyethylene, as noted)
• Aluminum/polyester foil shield, 25% minimum overlap
Stranded tinned copper drain wire (see tables for size)
• PVC jacket (see tables for colors)
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
(Minimums may apply)

可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

Cable Type	Cable Shielding	Cable Voltage	Cable AWG	NumberOf Elements	Insulation Material	CableJacket Material	CableJacket Diameter
M14327	Multi-Conductor	FOIL	300	22	2	SR-PVC	PVC	0.139	CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
M14328	Multi-Conductor	FOIL	300	24	2	SR-PVC	PVC	0.127
M14429	Multi-Conductor	FOIL	300	20	2	PVC	PVC	0.199	CA Prop 65, CSA CMG, CSA FT4, REACH Regulation (EC 1907/2006), UL AWM 2464, UL CMG
M14461	Conductor	BRAID	300	22	2	PVC	PVC	0.195	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095, UL CMG
M14462	Conductor	BRAID	300	22	2	PVC	PVC	0.205
M14474	Multi-Conductor	Foil/Unshielded	300	22	2	PP	PVC	0.215	CA Prop 65, CSA - C(UL) TYPE CM, UL AWM 2717, UL CM
M14475	Multi-Conductor	FOIL	200	22	3	PVC	PVC	0.145	CA Prop 65, UL CM
M14476	Multi-Conductor	Foil/Unshielded	200	22	4	PP	PVC	0.205	CA Prop 65
M14477	Multi-Conductor	Foil/Unshielded	300	24+22	6	PVC	PVC	0.236	CA Prop 65, UL CM
M14478	Multi-Conductor	Foil/Unshielded	350	24+22	8	PP	PVC	0.29	CA Prop 65
M14604	Multi-Pair	UNSHIELDED	300	20	4	PP	PVC	0.365	CA Prop 65, CSA CMG, UL CMG, UL VW-1

	M4325	Multi-Conductor	FOIL	300	22	2	SR-PVC	PVC	0.125	CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
	M4326	Multi-Conductor	FOIL	300	22	2	SR-PVC	PVC	0.139

M4451	Multi-Conductor	2 Shielded, 2 Unshielded	300	22	4	PE	PVC	0.165	CSA CM, UL CM
M4452	Multi-Conductor	2 Shielded, 2 Unshielded	300	20	4	PVC	PVC	0.226	CSA CM, UL CM
M4473	Multi-Pair	UNSHIELDED	300	22	2	PP	PVC	0.228	CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
M4475	Multi-Conductor	1 Unshielded, 2 Shielded	300	22	3	PVC	PVC	0.199	CSA CM, UL CM
