ALPHA- Manhattan™ Audio/Video Cable (Awg 22, 20, 18, 16 ) 300 V Braid Shield, Multiconductor, PVC, PVC 柔軟堅韌銅網隔離影像音響儀表控制电缆

ALPHA-M3202

商品編號: ALPHA-M3202

ALPHA- Manhattan™ Audio/Video Cable (Awg 22, 20, 18, 16 ) 300 V Braid Shield, Multiconductor, PVC, PVC 柔軟堅韌銅網隔離影像音響儀表控制电缆

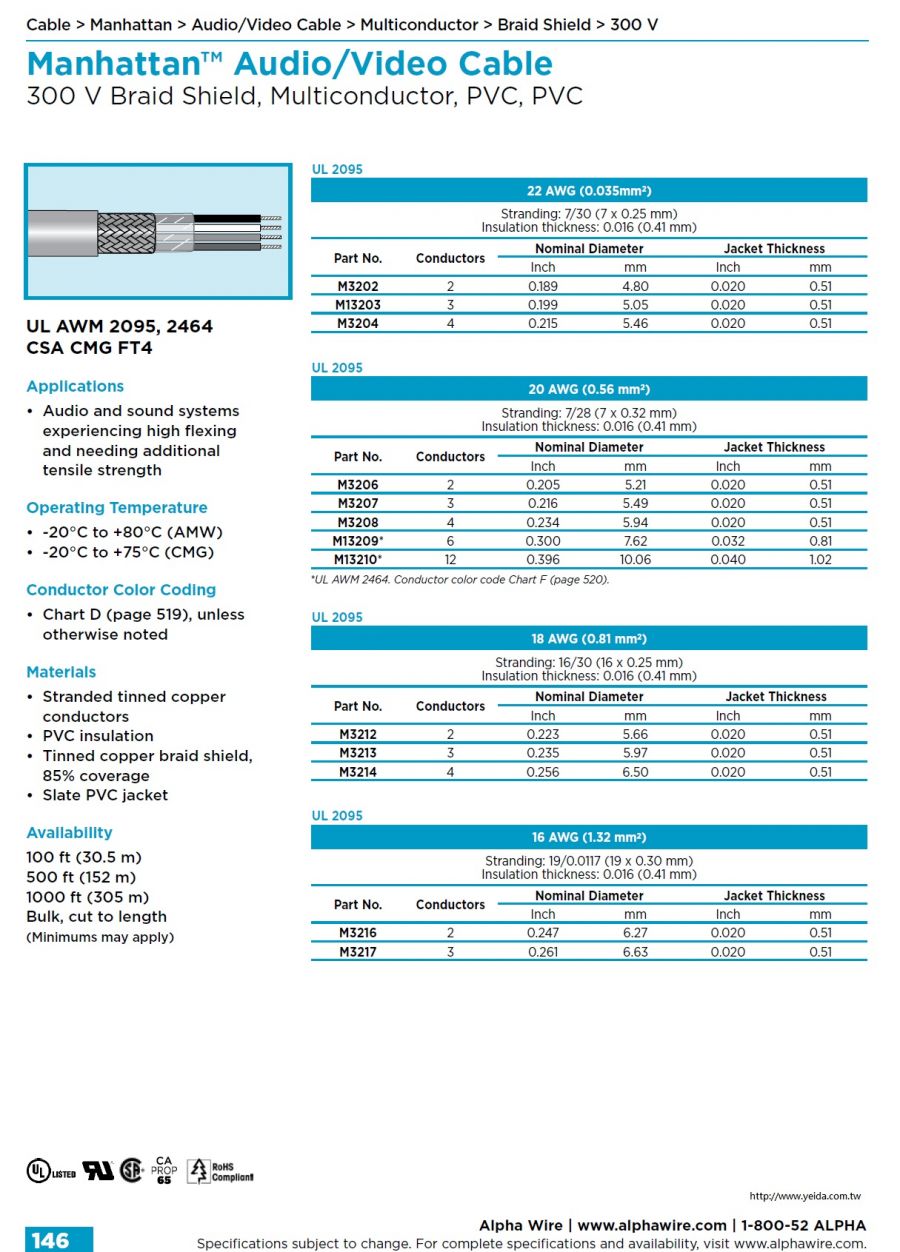

Manhattan™ Audio/Video Cable
300 V Braid Shield, Multiconductor, PVC, PVC
UL AWM 2095, 2464
CSA CMG FT4

Applications
• Audio and sound systems experiencing high flexing
and needing additional tensile strength
Operating Temperature
• -20°C to +80°C (AMW)
• -20°C to +75°C (CMG)
Conductor Color Coding
• Chart D (page 519), unless otherwise noted
Materials
• Stranded tinned copper conductors
• PVC insulation
• Tinned copper braid shield, 85% coverage
• Slate PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)

可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

Cable Type	Cable Shielding	Cable Voltage	Cable AWG	NumberOf Elements	Insulation Material	CableJacket Material	CableJacket Diameter
M3212	Multi-Conductor	BRAID	300	18	2	PVC	PVC	0.235	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095
M3213	Multi-Conductor	BRAID	300	18	3	PVC	PVC	0.245
M3214	Multi-Conductor	BRAID	300	18	4	PVC	PVC	0.255
M3216	Multi-Conductor	BRAID	300	16	2	PVC	PVC	0.25
M3217	Multi-Conductor	BRAID	300	16	3	PVC	PVC	0.255

M3202	Multi-Conductor	BRAID	300	22	2	PVC	PVC	0.175
M3204	Multi-Conductor	BRAID	300	22	4	PVC	PVC	0.199
M3206	Multi-Conductor	BRAID	300	20	2	PVC	PVC	0.2
M3207	Multi-Conductor	BRAID	300	20	3	PVC	PVC	0.22
M3208	Multi-Conductor	BRAID	300	20	4	PVC	PVC	0.23
