ALPHA- Manhattan™ Audio/Video Cable (Awg 18, 20, 22 ) 300 V Spiral Wrap Copper Shield, Multiconductor, PVC, PVC 影像音響銅線螺旋纏繞隔離控制电缆

ALPHA-M3261

商品編號: ALPHA-M3261

ALPHA- Manhattan™ Audio/Video Cable (Awg 18, 20, 22 ) 300 V Spiral Wrap Copper Shield, Multiconductor, PVC, PVC 影像音響銅線螺旋纏繞隔離控制电缆

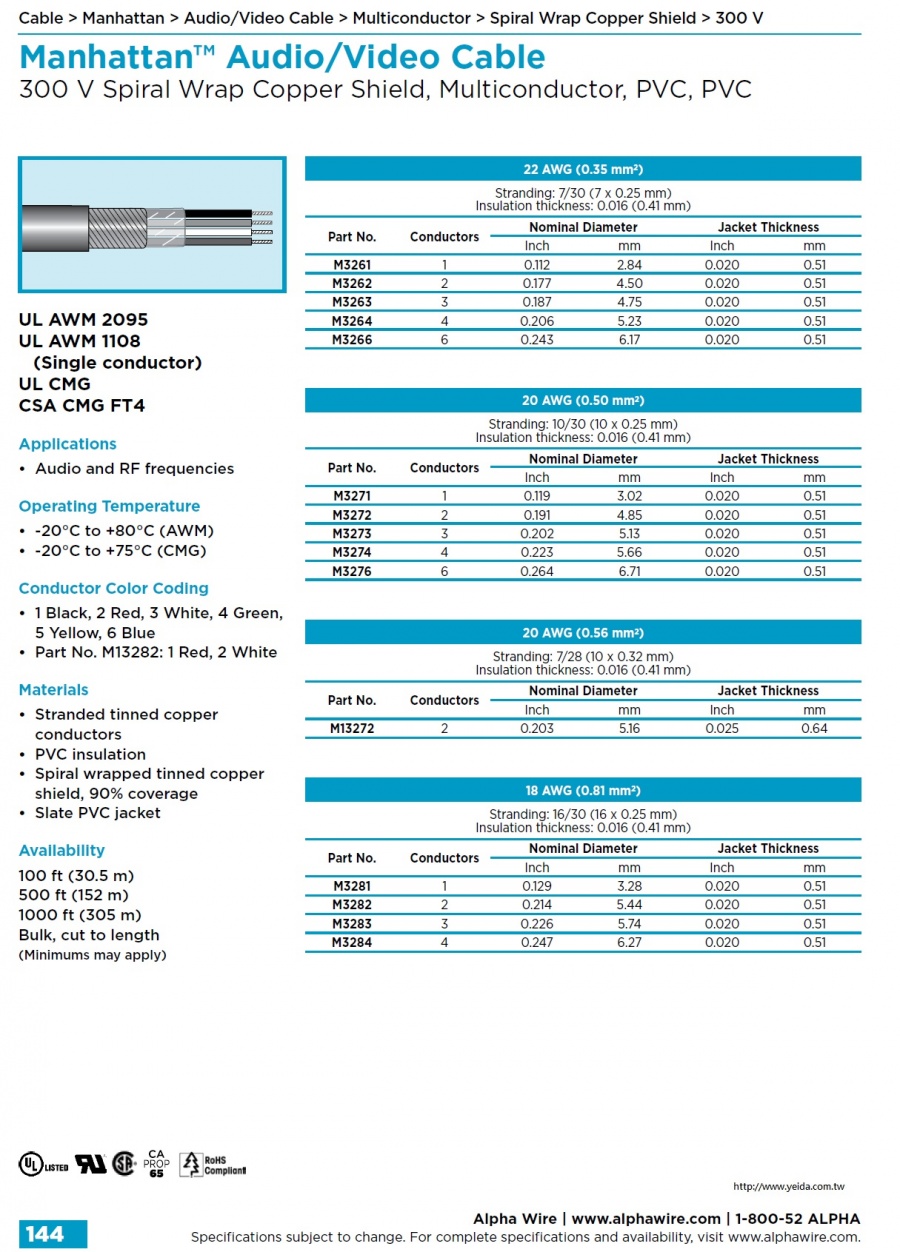

Manhattan™ Audio/Video Cable
300 V Spiral Wrap Copper Shield, Multiconductor, PVC, PVC
UL AWM 2095
UL AWM 1108 (Single conductor)
UL CMG
CSA CMG FT4
　

Applications
• Audio and RF frequencies
Operating Temperature
• -20°C to +80°C (AWM)
• -20°C to +75°C (CMG)
Conductor Color Coding
• 1 Black, 2 Red, 3 White, 4 Green, 5 Yellow, 6 Blue
• Part No. M13282: 1 Red, 2 White
Materials
• Stranded tinned copper conductors
• PVC insulation
• Spiral wrapped tinned copper shield, 90% coverage
• Slate PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)

可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

Cable Type	Cable Shielding	Cable Voltage	Cable AWG	NumberOf Elements	Insulation Material	CableJacket Material	CableJacket Diameter
M3261	Conductor	Spiral Tin Cu Wrap	300	22	1	PVC	PVC	0.12	CA Prop 65, CSA CMG, CSA FT4, UL AWM 1108, UL CMG
M3262	Multi-Conductor	Spiral Tin Cu Wrap	300	22	2	PVC	PVC	0.17	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095, UL CMG
M3263	Multi-Conductor	Spiral Tin Cu Wrap	300	22	3	PVC	PVC	0.175
M3264	Multi-Conductor	Spiral Tin Cu Wrap	300	22	4	PVC	PVC	0.19
M3266	Multi-Conductor	Spiral Tin Cu Wrap	300	22	6	PVC	PVC	0.235
M3271	Conductor	Spiral Tin Cu Wrap	300	20	1	PVC	PVC	0.13	CA Prop 65, CSA CMG, CSA FT4, UL AWM 1108, UL CMG
M3272	Multi-Conductor	Spiral Tin Cu Wrap	300	20	2	PVC	PVC	0.195	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095, UL CMG
M3273	Multi-Conductor	Spiral Tin Cu Wrap	300	20	3	PVC	PVC	0.21
M3274	Multi-Conductor	Spiral Tin Cu Wrap	300	20	4	PVC	PVC	0.225
M3276	Multi-Conductor	Spiral Tin Cu Wrap	300	20	6	PVC	PVC	0.265
M3281	Conductor	Spiral Tin Cu Wrap	300	18	1	PVC	PVC	0.145	CA Prop 65, CSA CMG, CSA FT4, UL AWM 1108, UL CMG
M3282	Multi-Conductor	Spiral Tin Cu Wrap	300	18	2	PVC	PVC	0.21	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095, UL CMG
M3283	Multi-Conductor	Spiral Tin Cu Wrap	300	18	3	PVC	PVC	0.23
M3284	Multi-Conductor	Spiral Tin Cu Wrap	300	18	4	PVC	PVC	0.255
M3287	Multi-Conductor	Spiral Tin Cu Wrap	300	16	2	PVC	PVC	0.25	CA Prop 65, UL AWM 2095
M3288	Multi-Conductor	Spiral Tin Cu Wrap	300	16	3	PVC	PVC	0.255
M3289	Multi-Conductor	Spiral Tin Cu Wrap	300	14	2	PVC	PVC	0.295	CA Prop 65
M3290	Multi-Conductor	Spiral Tin Cu Wrap	300	14	3	PVC	PVC	0.3	CA Prop 65
M33218	Multi-Conductor	BRAID	450	14	2	PVC	PVC	0.29	CA Prop 65
