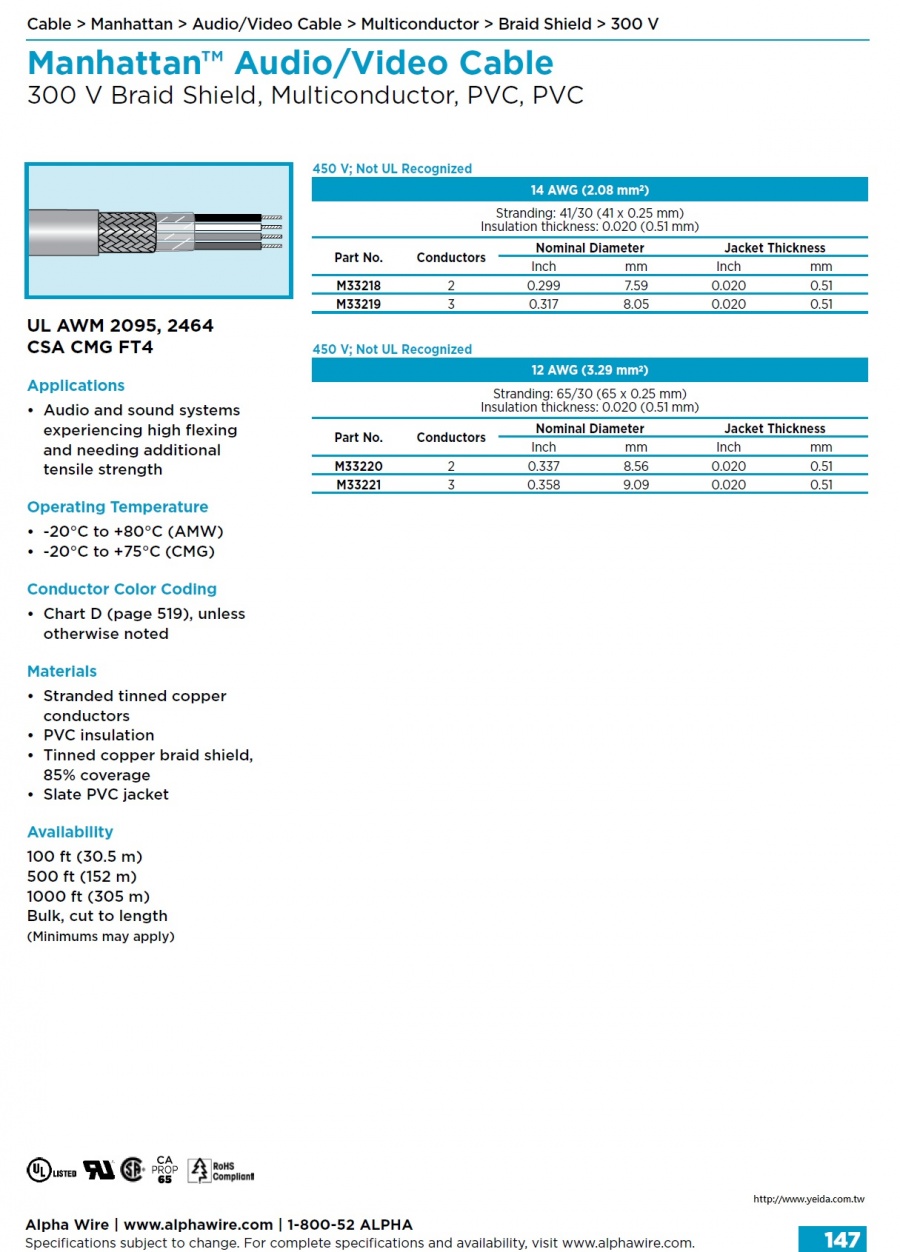

Manhattan™ Audio/Video Cable
300 V Braid Shield, Multiconductor, PVC, PVC
UL AWM 2095, 2464
CSA CMG FT4
　

Applications
• Audio and sound systems experiencing high flexing
     and needing additional tensile strength
Operating Temperature
• -20°C to +80°C (AMW)
• -20°C to +75°C (CMG)
Conductor Color Coding
• Chart D (page 519), unless otherwise noted
Materials
• Stranded tinned copper conductors
• PVC insulation
• Tinned copper braid shield, 85% coverage
• Slate PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)
