ALPHA- Manhattan™ Audio/Video Microphone Cable Braid or Spiral Shield, Single Conductor, PE, PVC 影像音響麥克風電線

ALPHA-M3601

商品編號: ALPHA-M3601

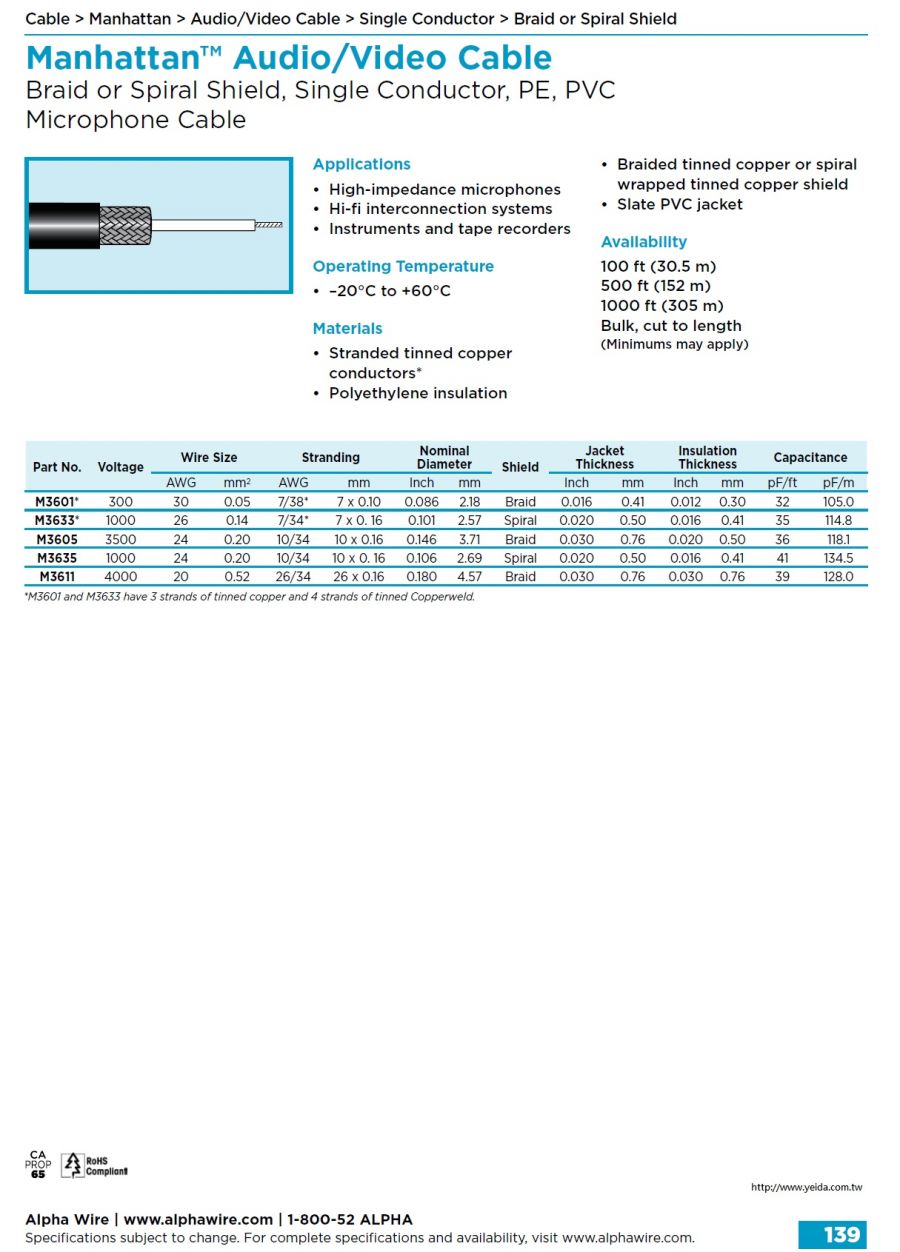

ALPHA- Manhattan™ Audio/Video Microphone Cable Braid or Spiral Shield, Single Conductor, PE, PVC 影像音響麥克風電線

Manhattan™ Audio/Video Cable
Braid or Spiral Shield, Single Conductor, PE, PVC
Microphone Cable

Applications
• High-impedance microphones
• Hi-fi interconnection systems
• Instruments and tape recorders
Operating Temperature
• –20°C to +60°C
Materials
• Stranded tinned copper conductors*
• Polyethylene insulation
• Braided tinned copper or spiral wrapped tinned copper shield
• Slate PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)

可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

Cable Type	Cable Shielding	Cable Voltage	AWG	Number Of Elements	Insulation Material	Jacket Material	OD
M3247	Multi-Conductor	FOIL	300	16	2	PE	PVC	0.245	CSA - CMG, CSA - FT4, UL - CMG, UL AWM 2092
M3248	Multi-Conductor	FOIL	300	16	3	PE	PVC	0.249	CSA CMG, CSA FT4, UL - CMG, UL AWM 2093
M3249	Multi-Conductor	FOIL	150	14	2	PE	PVC	0.31	UL CL2
M3250	Multi-Conductor	FOIL	150	12	2	PE	PVC	0.34	UL CL2
M3601	Conductor	BRAID	300	30	1	PE	PVC	0.086	CA Prop 65, REACH Regulation (EC 1907/2006)
M3605	Conductor	BRAID	3500	24	1	PE	PVC	0.146
M3611	Conductor	BRAID	4000	20	1	PE	PVC	0.18
M3633	Conductor	SPIRAL	1000	26	1	PE	PVC	0.101
M3635	Conductor	SPIRAL	1000	24	1	PE	PVC	0.106
M4451	Multi-Conductor	2 Shielded, 2 Unshielded	300	22	4	PE	PVC	0.165	CSA CM, UL CM
