    首頁 > > ALPHA-Manhattan™ Audio/Video Shielded Cable 隔離影音儀表傳輸用線

    ALPHA- Manhattan™ Audio/Video Cable (Awg 22, 20 ) Individually Foil Shielded Pairs, Multipair, PP/PE/SR-PVC, PVC對型個別鋁箔隔離影像音響訊號傳輸控制电缆

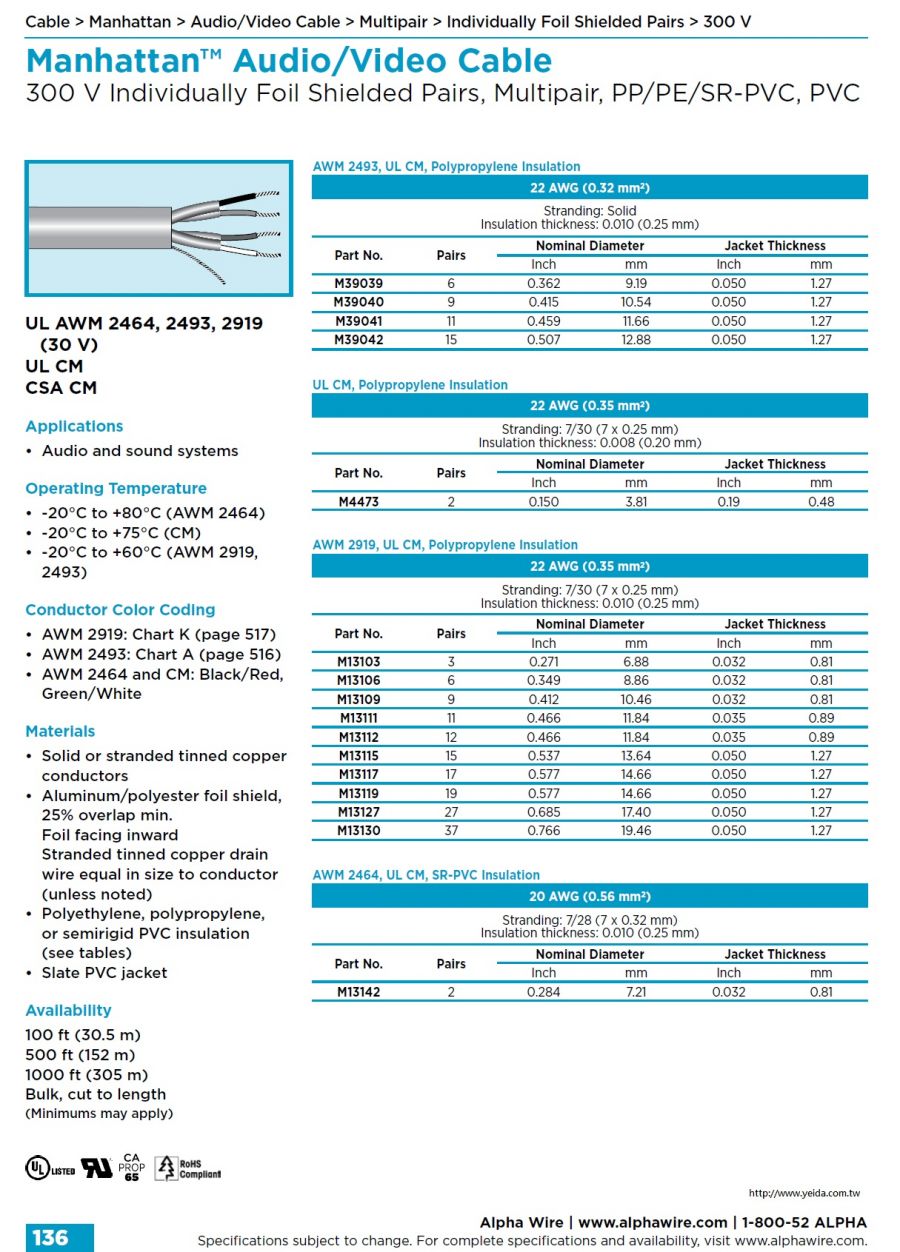

    看原圖
    		ALPHA-M39039

    商品編號: ALPHA-M39039

    ALPHA- Manhattan™ Audio/Video Cable (Awg 22, 20 ) Individually Foil Shielded Pairs, Multipair, PP/PE/SR-PVC, PVC對型個別鋁箔隔離影像音響訊號傳輸控制电缆


    Manhattan™ Audio/Video Cable
    300 V Individually Foil Shielded Pairs, Multipair, PP/PE/SR-PVC, PVC
    UL AWM 2464, 2493, 2919 (30 V)
    UL CM CSA CM
    Applications
    • Audio and sound systems Operating Temperature
    • -20°C to +80°C (AWM 2464)
    • -20°C to +75°C (CM)
    • -20°C to +60°C (AWM 2919, 2493)
    Conductor Color Coding
    • AWM 2919: Chart K (page 517)
    • AWM 2493: Chart A (page 516)
    • AWM 2464 and CM: Black/Red, Green/White
    Materials
    • Solid or stranded tinned copper conductors
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
         Stranded tinned copper drain wire equal in size to conductor (unless noted)
    • Polyethylene, polypropylene, or semirigid PVC insulation (see tables)
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)



    可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。
    Part # Type Shielding Voltage　 AWG # of Elements　 Insulation Material Jacket Material



    		 Jacket Diameter
      M13106 Multi-Pair FOIL 30 22 6 PP PVC 0.349 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2919, UL CM
      M13109 Multi-Pair FOIL 30 22 9 PP PVC 0.412 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2919, UL CM
      M13111 Multi-Pair FOIL 30 22 11 PP PVC 0.466 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2919, UL CM
      M13112 Multi-Pair FOIL 30 22 12 PP PVC 0.466
      M13115 Multi-Pair FOIL 30 22 15 PP PVC 0.537
      M13117 Multi-Pair FOIL 30 22 17 PP PVC 0.577
      M13119 Multi-Pair FOIL 30 22 19 PP PVC 0.577
      M13127 Multi-Pair FOIL 30 22 27 PP PVC 0.685
      M13130 Multi-Pair FOIL 30 22 37 PP PVC 0.766
      M39039 Multi-Pair FOIL 300 22 6 PP PVC 0.362 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2493, UL CM
      M39040 Multi-Pair FOIL 300 22 9 PP PVC 0.415
      M39041 Multi-Pair FOIL 300 22 11 PP PVC 0.459
      M39042 Multi-Pair FOIL 300 22 15 PP PVC 0.507
      M4473 Multi-Pair UNSHIELDED 300 22 2 PP PVC 0.228 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
      M13142 Multi-Pair FOIL 300 20 2 SR-PVC PVC 0.284 CA Prop 65, CSA CMG, REACH Regulation (EC 1907/2006), UL AWM 2464, UL CMG
      M13143 Multi-Pair FOIL 300 20 3 PE PVC 0.324 CA Prop 65, CSA CMG, CSA FT4, REACH Regulation (EC 1907/2006), UL AWM 2919, UL CMG
      M13146 Multi-Pair FOIL 300 20 6 PE PVC 0.448
      M13149 Multi-Pair FOIL 300 20 9 PP PVC 0.522
      M13151 Multi-Pair FOIL 300 20 11 PE PVC 0.579
      M13152 Multi-Pair FOIL 300 20 12 PE PVC 0.598
      M13155 Multi-Pair FOIL 300 20 15 PE PVC 0.65



    Part # Type Shielding Voltage　 AWG # of Elements　 Insulation Material Jacket Material



    		 Jacket Diameter
      M13106 Multi-Pair FOIL 30 22 6 PP PVC 0.349 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2919, UL CM
      M13109 Multi-Pair FOIL 30 22 9 PP PVC 0.412 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2919, UL CM
      M13111 Multi-Pair FOIL 30 22 11 PP PVC 0.466 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2919, UL CM
      M13112 Multi-Pair FOIL 30 22 12 PP PVC 0.466
      M13115 Multi-Pair FOIL 30 22 15 PP PVC 0.537
      M13117 Multi-Pair FOIL 30 22 17 PP PVC 0.577
      M13119 Multi-Pair FOIL 30 22 19 PP PVC 0.577
      M13127 Multi-Pair FOIL 30 22 27 PP PVC 0.685
      M13130 Multi-Pair FOIL 30 22 37 PP PVC 0.766
      M39039 Multi-Pair FOIL 300 22 6 PP PVC 0.362 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2493, UL CM
      M39040 Multi-Pair FOIL 300 22 9 PP PVC 0.415
      M39041 Multi-Pair FOIL 300 22 11 PP PVC 0.459
      M39042 Multi-Pair FOIL 300 22 15 PP PVC 0.507
      M4473 Multi-Pair UNSHIELDED 300 22 2 PP PVC 0.228 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
      M13142 Multi-Pair FOIL 300 20 2 SR-PVC PVC 0.284 CA Prop 65, CSA CMG, REACH Regulation (EC 1907/2006), UL AWM 2464, UL CMG
      M13143 Multi-Pair FOIL 300 20 3 PE PVC 0.324 CA Prop 65, CSA CMG, CSA FT4, REACH Regulation (EC 1907/2006), UL AWM 2919, UL CMG
      M13146 Multi-Pair FOIL 300 20 6 PE PVC 0.448
      M13149 Multi-Pair FOIL 300 20 9 PP PVC 0.522
      M13151 Multi-Pair FOIL 300 20 11 PE PVC 0.579
      M13152 Multi-Pair FOIL 300 20 12 PE PVC 0.598
      M13155 Multi-Pair FOIL 300 20 15 PE PVC 0.65
