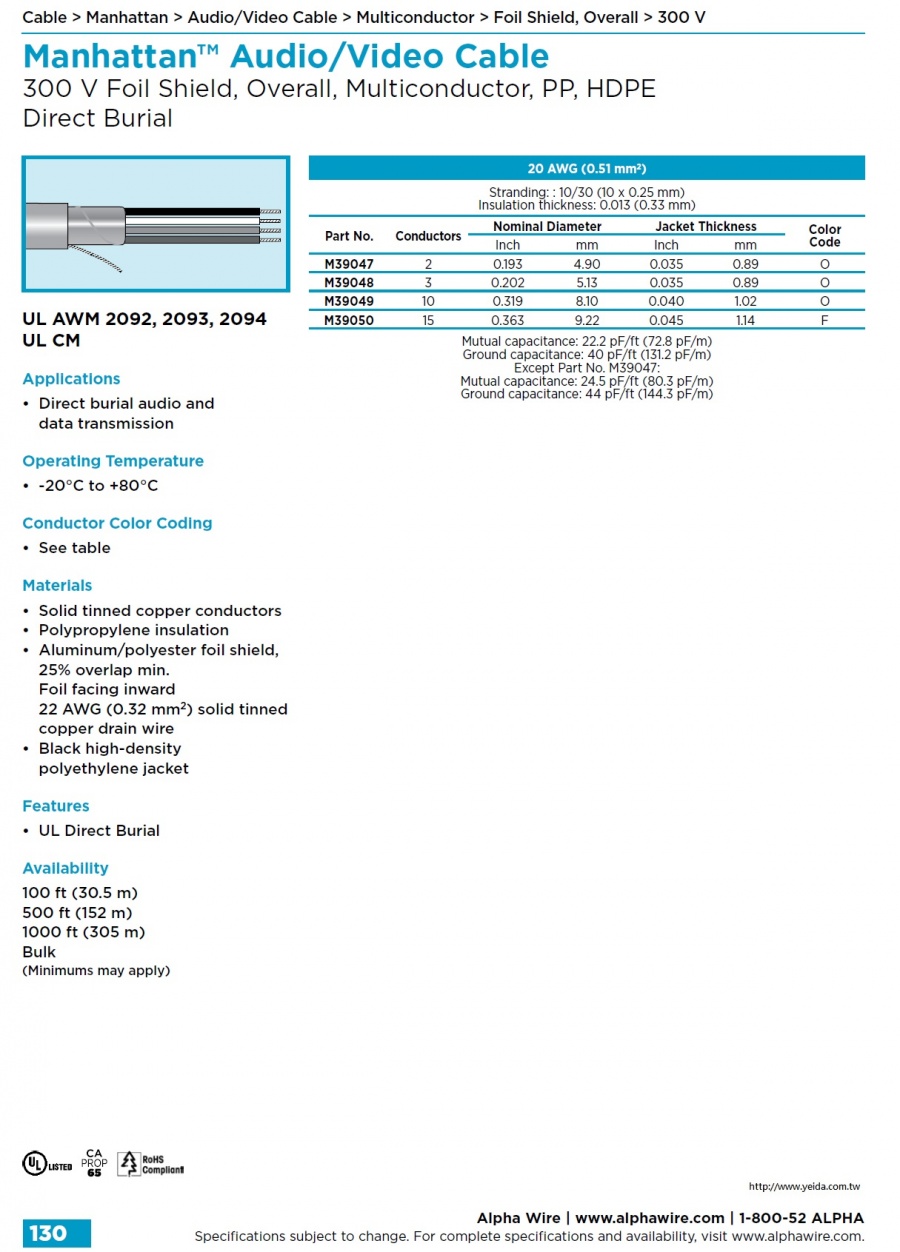

Manhattan™ Audio/Video Cable
300 V Foil Shield, Overall, Multiconductor, PP, HDPE
Direct Burial
UL AWM 2092, 2093, 2094 UL CM
　

Applications
• Direct burial audio and data transmission
Operating Temperature
• -20°C to +80°C
Conductor Color Coding
• See table
Materials
• Solid tinned copper conductors
• Polypropylene insulation
• Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
     22 AWG (0.32 mm2) solid tinned copper drain wire
• Black high-density polyethylene jacket
Features
• UL Direct Burial
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk
(Minimums may apply)

Mutual capacitance: 22.2 pF/ft (72.8 pF/m)
Ground capacitance: 40 pF/ft (131.2 pF/m)
Except Part No. M39047:
Mutual capacitance: 24.5 pF/ft (80.3 pF/m)
Ground capacitance: 44 pF/ft (144.3 pF/m)
