ALPHA- Manhattan™ Audio/Video Cable (Awg 20 ) 350 V Individually Foil Shielded Pairs, Multipair, PP, HDPE Direct Burial 可直埋影像音響個別鋁箔隔離訊號傳輸控制电缆

ALPHA-M39051

商品編號: ALPHA-M39051

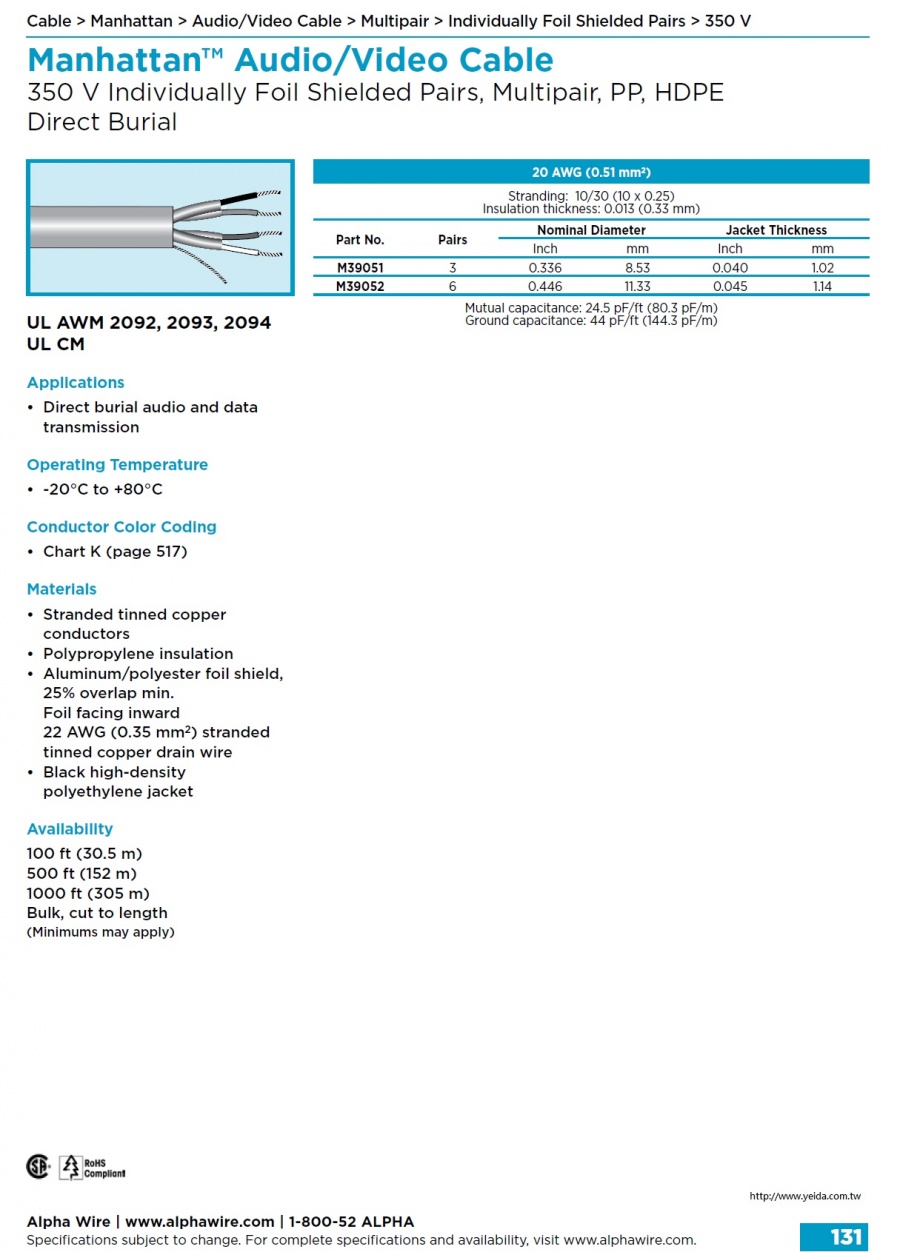

ALPHA- Manhattan™ Audio/Video Cable (Awg 20 ) 350 V Individually Foil Shielded Pairs, Multipair, PP, HDPE Direct Burial 可直埋影像音響個別鋁箔隔離訊號傳輸控制电缆

Manhattan™ Audio/Video Cable
350 V Individually Foil Shielded Pairs, Multipair, PP, HDPE
Direct Burial
UL AWM 2092, 2093, 2094 UL CM
　

Applications
• Direct burial audio and data transmission
Operating Temperature
• -20°C to +80°C
Conductor Color Coding
• Chart K (page 517)
Materials
• Stranded tinned copper conductors
• Polypropylene insulation
• Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
22 AWG (0.35 mm2) stranded tinned copper drain wire
• Black high-density polyethylene jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)

Mutual capacitance: 24.5 pF/ft (80.3 pF/m)
Ground capacitance: 44 pF/ft (144.3 pF/m)

可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

Type	Shielding	Voltage	AWG	# of Elements	Insulation Material	Jacket Material	Jacket Diameter
M39031	Multi-Conductor	FOIL	300	24	10	SR-PVC	PVC	0.244	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2464, UL CMG
M39032	Multi-Conductor	FOIL	300	24	15	SR-PVC	PVC	0.286
M39033	Multi-Conductor	FOIL	300	24	20	SR-PVC	PVC	0.319
M39034	Multi-Conductor	FOIL	300	24	25	SR-PVC	PVC	0.34
M39035	Multi-Conductor	FOIL	300	24	30	SR-PVC	PVC	0.38
M39036	Multi-Conductor	FOIL	300	24	40	SR-PVC	PVC	0.273
M39037	Multi-Conductor	FOIL	300	24	50	SR-PVC	PVC	0.49
M39039	Multi-Pair	FOIL	300	22	6	PP	PVC	0.362	CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2493, UL CM
M39040	Multi-Pair	FOIL	300	22	9	PP	PVC	0.415
M39041	Multi-Pair	FOIL	300	22	11	PP	PVC	0.459
M39042	Multi-Pair	FOIL	300	22	15	PP	PVC	0.507
M39047	Multi-Conductor	FOIL	350	20	2	PP	PE	0.193	CA Prop 65, REACH Regulation (EC 1907/2006)
M39048	Multi-Conductor	FOIL	350	20	3	PP	PE	0.202
M39049	Multi-Conductor	FOIL	350	20	10	PP	PE	0.319
M39050	Multi-Conductor	FOIL	350	20	15	PP	PE	0.363
M39051	Multi-Conductor	FOIL	350	20	3	PP	PE	0.336
M39052	Multi-Conductor	FOIL	350	20	6	PP	PE	0.446
