    ALPHA- Manhattan™ Audio/Video Cable (Awg 22, 20 ) 300 V Unshielded and Shielded, Multiconductor Composite PVC/PE/PP, PVC 複合式 影像音響無隔+銅網隔離控制电缆

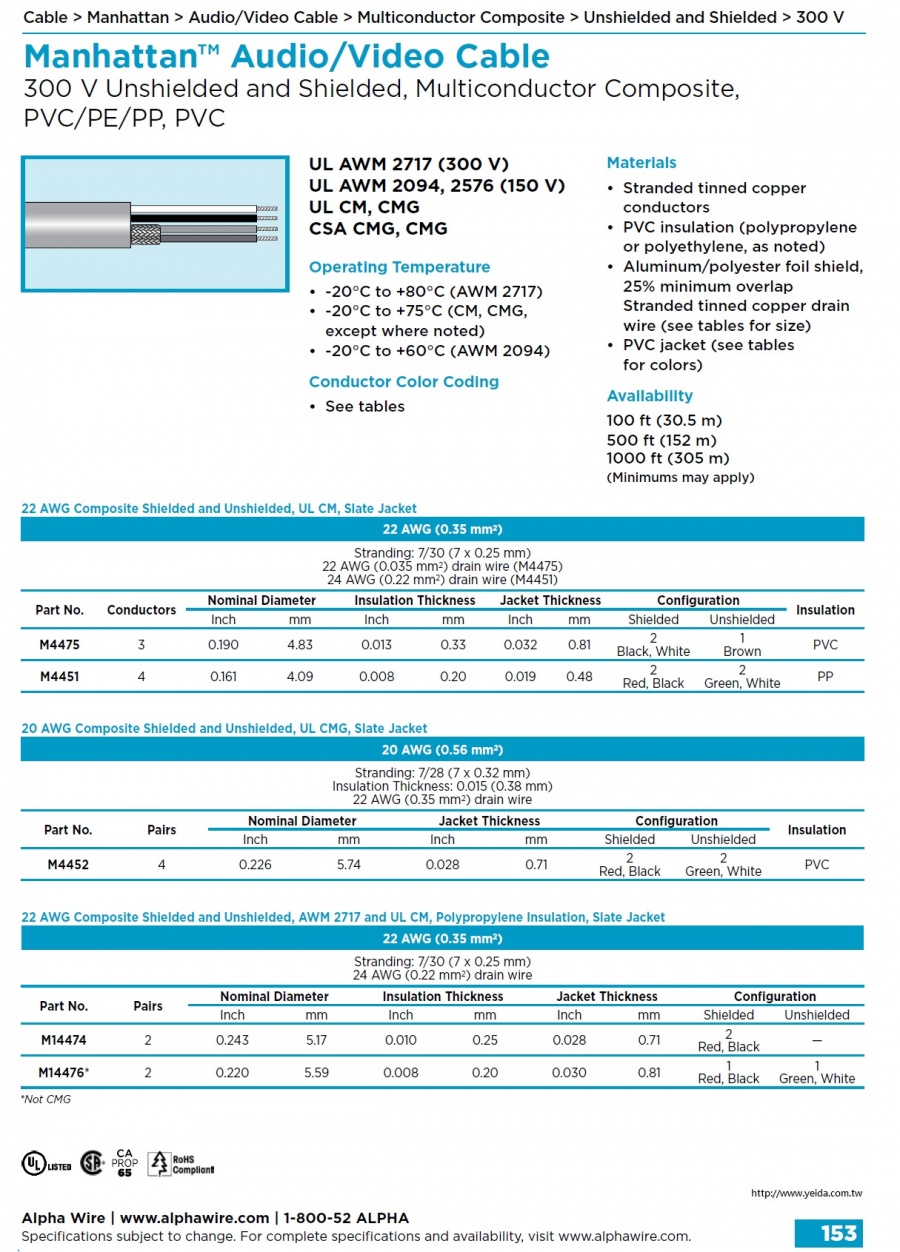

    看原圖
    		ALPHA-M4475

    商品編號: ALPHA-M4475

    ALPHA- Manhattan™ Audio/Video Cable (Awg 22, 20 ) 300 V Unshielded and Shielded, Multiconductor Composite PVC/PE/PP, PVC 複合式 影像音響無隔+銅網隔離控制电缆


    Manhattan™ Audio/Video Cable
    300 V Unshielded and Shielded, Multiconductor Composite,
    PVC/PE/PP, PVC
    UL AWM 2717 (300 V)
    UL AWM 2094, 2576 (150 V)
    UL CM, CMG
    CSA CMG, CMG

    22 AWG Composite Shielded and Unshielded, UL CM, Slate Jacket
    22 AWG Composite Shielded and Unshielded, AWM 2717 and UL CM, Polypropylene Insulation, Slate Jacket
    20 AWG Composite Shielded and Unshielded, UL CMG, Slate Jacket


    Operating Temperature
    • -20°C to +80°C (AWM 2717)
    • -20°C to +75°C (CM, CMG, except where noted)
    • -20°C to +60°C (AWM 2094)
    Conductor Color Coding
    • See tables
    Materials
    • Stranded tinned copper conductors
    • PVC insulation (polypropylene or polyethylene, as noted)
    • Aluminum/polyester foil shield, 25% minimum overlap
         Stranded tinned copper drain wire (see tables for size)
    • PVC jacket (see tables for colors)
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    (Minimums may apply)



    可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。



    Part # Cable Type Cable Shielding

    　

    		 Cable Voltage　 Cable AWG NumberOf Elements　 Insulation Material CableJacket Material CableJacket Diameter
      M13574 Multi-Conductor UNSHIELDED 300 16 4 PVC PVC 0.371 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2576, UL CM
      M13582 Multi-Conductor UNSHIELDED 300 14 2 PVC PVC 0.34 CA Prop 65, REACH Regulation (EC 1907/2006), UL AWM 2463, UL CL2
      M13584 Multi-Conductor UNSHIELDED 300 14 4 PVC PVC 0.397 CA Prop 65, REACH Regulation (EC 1907/2006), UL AWM 2463, UL CL3
      M13590 Multi-Conductor UNSHIELDED 300 12 2 PVC PVC 0.388
      M14327 Multi-Conductor FOIL 300 22 2 SR-PVC PVC 0.139 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
      M14328 Multi-Conductor FOIL 300 24 2 SR-PVC PVC 0.127 　
      M14429 Multi-Conductor FOIL 300 20 2 PVC PVC 0.199 CA Prop 65, CSA CMG, CSA FT4, REACH Regulation (EC 1907/2006), UL AWM 2464, UL CMG
      M14461 Conductor BRAID 300 22 2 PVC PVC 0.195 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2095, UL CMG
      M14462 Conductor BRAID 300 22 2 PVC PVC 0.205 　
      M14474 Multi-Conductor Foil/Unshielded 300 22 2 PP PVC 0.215 CA Prop 65, CSA - C(UL) TYPE CM, UL AWM 2717, UL CM
      M14475 Multi-Conductor FOIL 200 22 3 PVC PVC 0.145 CA Prop 65, UL CM
      M14476 Multi-Conductor Foil/Unshielded 200 22 4 PP PVC 0.205 CA Prop 65
      M14477 Multi-Conductor Foil/Unshielded 300 24+22 6 PVC PVC 0.236 CA Prop 65, UL CM
      M14478 Multi-Conductor Foil/Unshielded 350 24+22 8 PP PVC 0.29 CA Prop 65
      M14604 Multi-Pair UNSHIELDED 300 20 4 PP PVC 0.365 CA Prop 65, CSA CMG, UL CMG, UL VW-1
    　 M4325 Multi-Conductor FOIL 300 22 2 SR-PVC PVC 0.125 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
      M4326 Multi-Conductor FOIL 300 22 2 SR-PVC PVC 0.139 　
    　 M4451 Multi-Conductor 2 Shielded, 2 Unshielded 300 22 4 PE PVC 0.165 CSA CM, UL CM
      M4452 Multi-Conductor 2 Shielded, 2 Unshielded 300 20 4 PVC PVC 0.226 CSA CM, UL CM
      M4473 Multi-Pair UNSHIELDED 300 22 2 PP PVC 0.228 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL CM
      M4475 Multi-Conductor 1 Unshielded, 2 Shielded 300 22 3 PVC PVC 0.199 CSA CM, UL CM
