    首頁 > > ALPHA-Manhattan™ Audio/Video Unshielded Cable 影音儀表傳輸用線

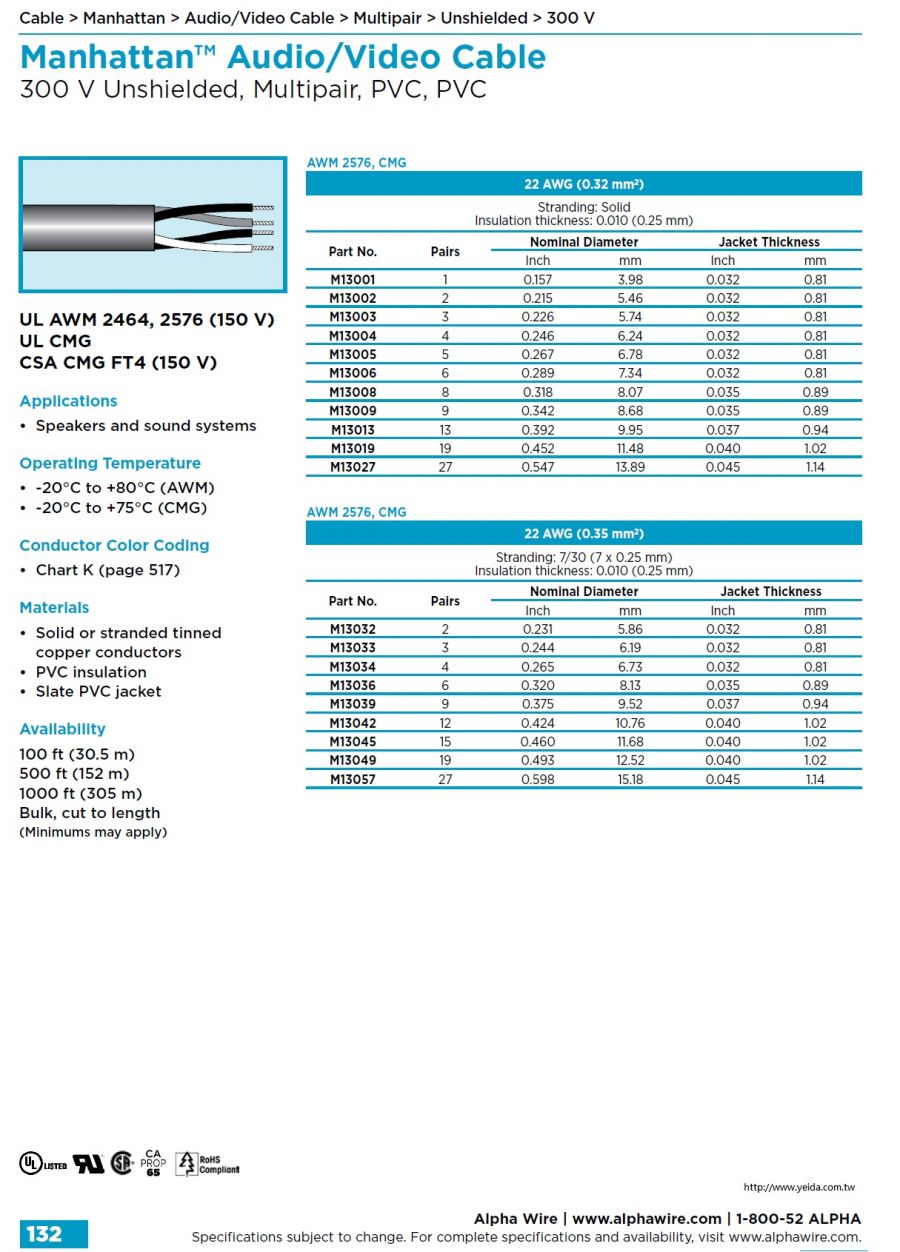

    ALPHA- Manhattan™ Audio/Video Cable (Awg 22 ) 300 V Unshielded, Multipair, PVC, PVC 對型影像音響訊號傳輸控制电缆
    看原圖
    		ALPHA-M13001

    商品編號: ALPHA-M13001

    ALPHA- Manhattan™ Audio/Video Cable (Awg 22 ) 300 V Unshielded, Multipair, PVC, PVC 對型影像音響訊號傳輸控制电缆


    Manhattan™ Audio/Video Cable
    300 V Unshielded, Multipair, PVC, PVC
    UL AWM 2464, 2576 (150 V) UL CMG
    CSA CMG FT4 (150 V)
    　

    Applications
    • Speakers and sound systems
    Operating Temperature
    • -20°C to +80°C (AWM)
    • -20°C to +75°C (CMG)
    Conductor Color Coding
    • Chart K (page 517)
    Materials
    • Solid or stranded tinned copper conductors
    • PVC insulation
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)

    可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。
    Part # Type Shielding Voltage　 AWG # of Elements　 Insulation Material Jacket Material



    		 Jacket Diameter
      M13001 Pair UNSHIELDED 150 22 1 PVC PVC 0.156 CA Prop 65, CSA CMG, CSA FT4, NEC CMG, UL AWM 2576, UL CMG, UL VW-1
      M13002 Multi-Pair UNSHIELDED 150 22 2 PVC PVC 0.23
      M13003 Multi-Pair UNSHIELDED 150 22 3 PVC PVC 0.242
      M13004 Multi-Pair UNSHIELDED 150 22 4 PVC PVC 0.264
      M13005 Multi-Pair UNSHIELDED 150 22 5 PVC PVC 0.28
      M13006 Multi-Pair UNSHIELDED 150 22 6 PVC PVC 0.289
      M13008 Multi-Pair UNSHIELDED 150 22 8 PVC PVC 0.322
      M13009 Multi-Pair UNSHIELDED 150 22 9 PVC PVC 0.345
      M13013 Multi-Pair UNSHIELDED 150 22 13 PVC PVC 0.385
      M13019 Multi-Pair UNSHIELDED 150 22 19 PVC PVC 0.44
      M13027 Multi-Pair UNSHIELDED 150 22 27 PVC PVC 0.531
      M13032 Multi-Pair UNSHIELDED 150 22 2 PVC PVC 0.244
      M13033 Multi-Pair UNSHIELDED 150 22 3 PVC PVC 0.258
      M13034 Multi-Pair UNSHIELDED 150 22 4 PVC PVC 0.278
      M13036 Multi-Pair UNSHIELDED 300 22 6 PVC PVC 0.32
      M13039 Multi-Pair UNSHIELDED 150 22 9 PVC PVC 0.385
      M13042 Multi-Pair UNSHIELDED 150 22 12 PVC PVC 0.427
      M13045 Multi-Pair UNSHIELDED 150 22 15 PVC PVC 0.442
      M13049 Multi-Pair UNSHIELDED 150 22 19 PVC PVC 0.5
      M13057 Multi-Pair UNSHIELDED 150 22 27 PVC PVC 0.575
