ALPHA- Manhattan™ Audio/Video Cable (Awg 18, 20 ) 300 V Unshielded, Multiconductor, PVC, PVC 影像音響儀表控制电缆

ALPHA-M33402

商品編號: ALPHA-M33402

ALPHA- Manhattan™ Audio/Video Cable (Awg 18, 20 ) 300 V Unshielded, Multiconductor, PVC, PVC 影像音響儀表控制电缆

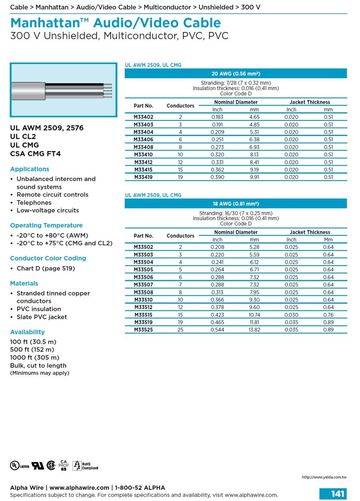

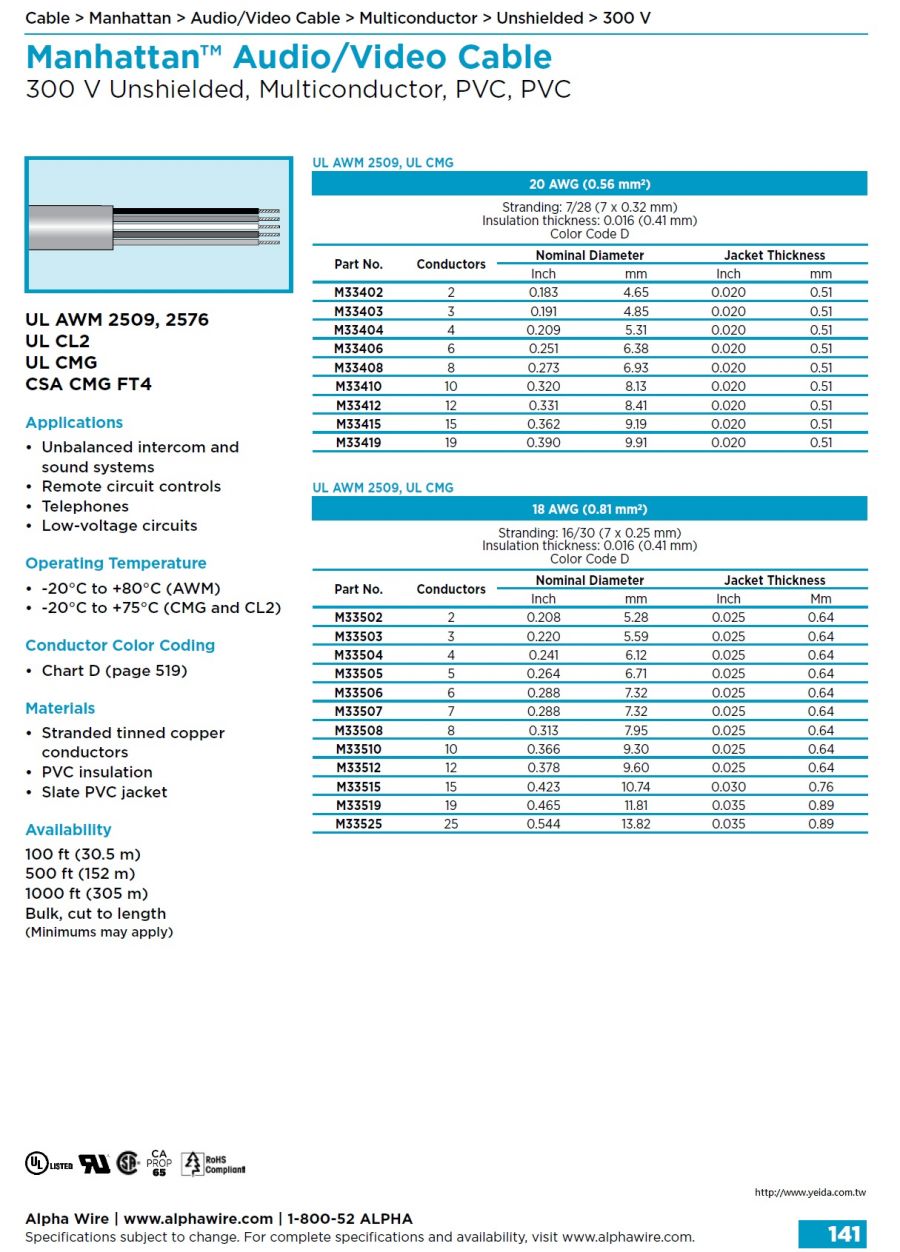

Manhattan™ Audio/Video Cable
300 V Unshielded, Multiconductor, PVC, PVC
UL AWM 2509, 2576
UL CL2 UL CMG
CSA CMG FT4
　

Applications
• Unbalanced intercom and sound systems
• Remote circuit controls
• Telephones
• Low-voltage circuits
Operating Temperature
• -20°C to +80°C (AWM)
• -20°C to +75°C (CMG and CL2)
Conductor Color Coding
• Chart D (page 519)
Materials
• Stranded tinned copper conductors
• PVC insulation
• Slate PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)

可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

Cable Type	Cable Shielding	Cable Voltage	AWG	Number Of Elements	Insulation Material	Jacket Material	OD
M13402	Multi-Conductor	UNSHIELDED	300	20	2	PVC	PVC	0.18	CA Prop 65, CSA CMG, CSA FT4, UL AWM 2509, UL CMG
M13502	Multi-Conductor	UNSHIELDED	300	18	2	PVC	PVC	0.198
M33402	Multi-Conductor	UNSHIELDED	300	20	2	PVC	PVC	0.183
M33403	Multi-Conductor	UNSHIELDED	300	20	3	PVC	PVC	0.191
M33404	Multi-Conductor	UNSHIELDED	300	20	4	PVC	PVC	0.209
M33406	Multi-Conductor	UNSHIELDED	300	20	6	PVC	PVC	0.251
M33408	Multi-Conductor	UNSHIELDED	300	20	8	PVC	PVC	0.273
M33410	Multi-Conductor	UNSHIELDED	300	20	10	PVC	PVC	0.32
M33412	Multi-Conductor	UNSHIELDED	300	20	12	PVC	PVC	0.331
M33415	Multi-Conductor	UNSHIELDED	300	20	15	PVC	PVC	0.362
M33419	Multi-Conductor	UNSHIELDED	300	20	19	PVC	PVC	0.39
M33502	Multi-Conductor	UNSHIELDED	300	18	2	PVC	PVC	0.198
M33503	Multi-Conductor	UNSHIELDED	300	18	3	PVC	PVC	0.22
M33504	Multi-Conductor	UNSHIELDED	300	18	4	PVC	PVC	0.241
M33505	Multi-Conductor	UNSHIELDED	300	18	5	PVC	PVC	0.264
M33506	Multi-Conductor	UNSHIELDED	300	18	6	PVC	PVC	0.288
M33507	Multi-Conductor	UNSHIELDED	300	18	7	PVC	PVC	0.288
M33508	Multi-Conductor	UNSHIELDED	300	18	8	PVC	PVC	0.313
M33510	Multi-Conductor	UNSHIELDED	300	18	10	PVC	PVC	0.366
M33512	Multi-Conductor	UNSHIELDED	300	18	12	PVC	PVC	0.378

M33515	Multi-Conductor	UNSHIELDED	300	18	15	PVC	PVC	0.423
M33519	Multi-Conductor	UNSHIELDED	300	18	19	PVC	PVC	0.465
M33525	Multi-Conductor	UNSHIELDED	300	18	25	PVC	PVC	0.544
