    ALPHA- Manhattan™ Audio/Video Cable (Awg 16, ) 600 V Unshielded, Multiconductor, PVC, PVC 影像音響控制电缆
    看原圖
    		ALPHA-M3704

    商品編號: ALPHA-M3704

    ALPHA- Manhattan™ Audio/Video Cable (Awg 16, ) 600 V Unshielded, Multiconductor, PVC, PVC 影像音響控制电缆

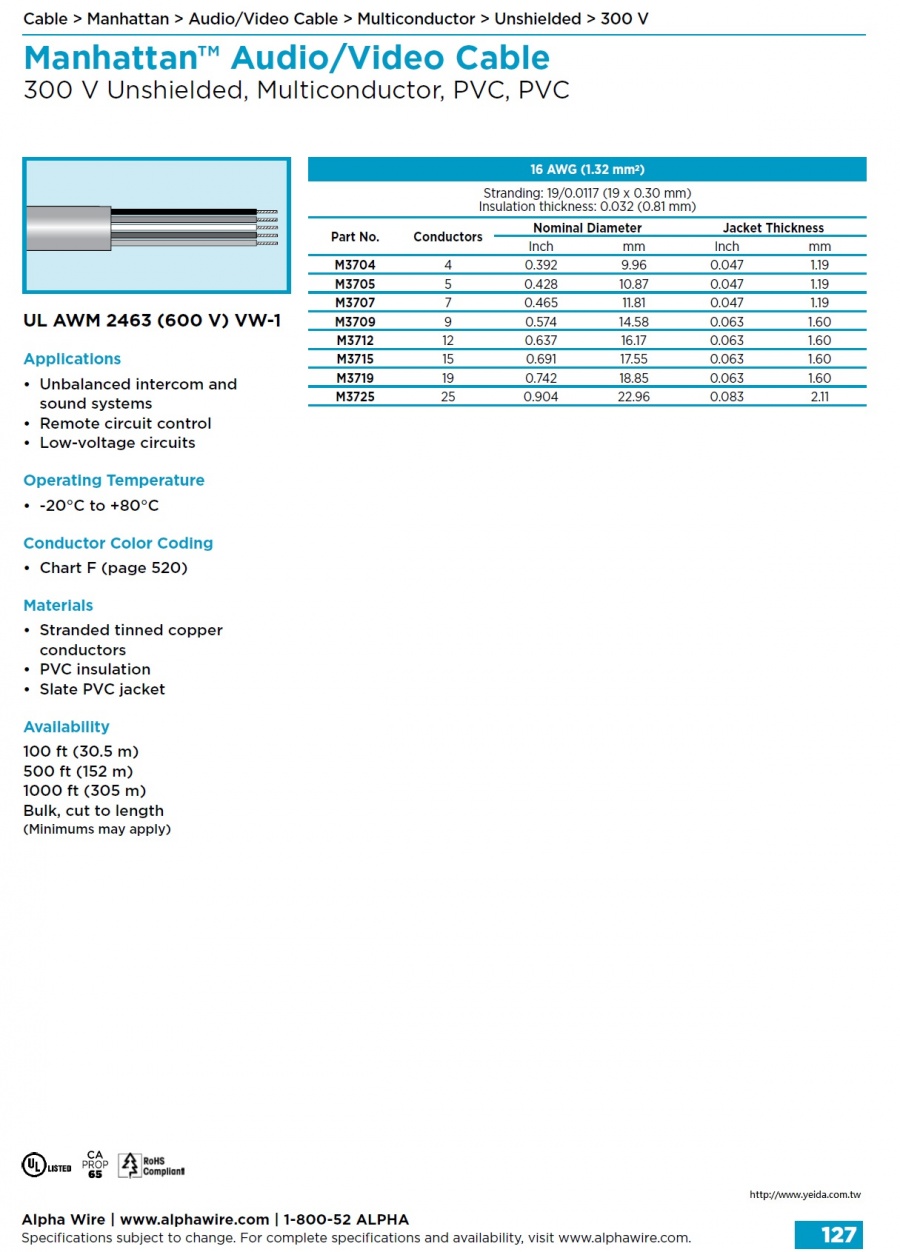

    Manhattan™ Audio/Video Cable
    300 V Unshielded, Multiconductor, PVC, PVC
    UL AWM 2463 (600 V) VW-1


    Applications
    • Unbalanced intercom and sound systems
    • Remote circuit control
    • Low-voltage circuits
    Operating Temperature
    • -20°C to +80°C
    Conductor Color Coding
    • Chart F (page 520)
    Materials
    • Stranded tinned copper
    conductors
    • PVC insulation
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)

    可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。
    Part # Type Shielding Voltage　 AWG # of Elements　 Insulation Material Jacket Material

    　

    		 Jacket Diameter
      M13572 Multi-Conductor UNSHIELDED 300 16 2 PVC PVC 0.268 CA Prop 65, CSA CM, REACH Regulation (EC 1907/2006), UL AWM 2576, UL CM
      M13574 Multi-Conductor UNSHIELDED 300 16 4 PVC PVC 0.371 　
      M33572 Multi-Conductor UNSHIELDED 300 16 2 PVC PVC 0.232 CA Prop 65, CSA CMG, CSA FT4, REACH Regulation (EC 1907/2006), UL AWM 2509, UL CMG
      M33573 Multi-Conductor UNSHIELDED 300 16 3 PVC PVC 0.246
      M33574 Multi-Conductor UNSHIELDED 300 16 4 PVC PVC 0.273
      M33576 Multi-Conductor UNSHIELDED 300 16 6 PVC PVC 0.327
      M33578 Multi-Conductor UNSHIELDED 300 16 8 PVC PVC 0.356
      M3704 Multi-Conductor UNSHIELDED 600 16 4 PVC PVC 0.393 CA Prop 65, REACH Regulation (EC 1907/2006), UL AWM 2463, UL VW-1
      M3705 Multi-Conductor UNSHIELDED 600 16 5 PVC PVC 0.428
      M3707 Multi-Conductor UNSHIELDED 600 16 7 PVC PVC 0.465
      M3709 Multi-Conductor UNSHIELDED 600 16 9 PVC PVC 0.57
      M3712 Multi-Conductor UNSHIELDED 600 16 12 PVC PVC 0.632
      M3715 Multi-Conductor UNSHIELDED 600 16 15 PVC PVC 0.684
      M3719 Multi-Conductor UNSHIELDED 600 16 19 PVC PVC 0.734
      M3725 Multi-Conductor UNSHIELDED 600 16 25 PVC PVC 0.893
