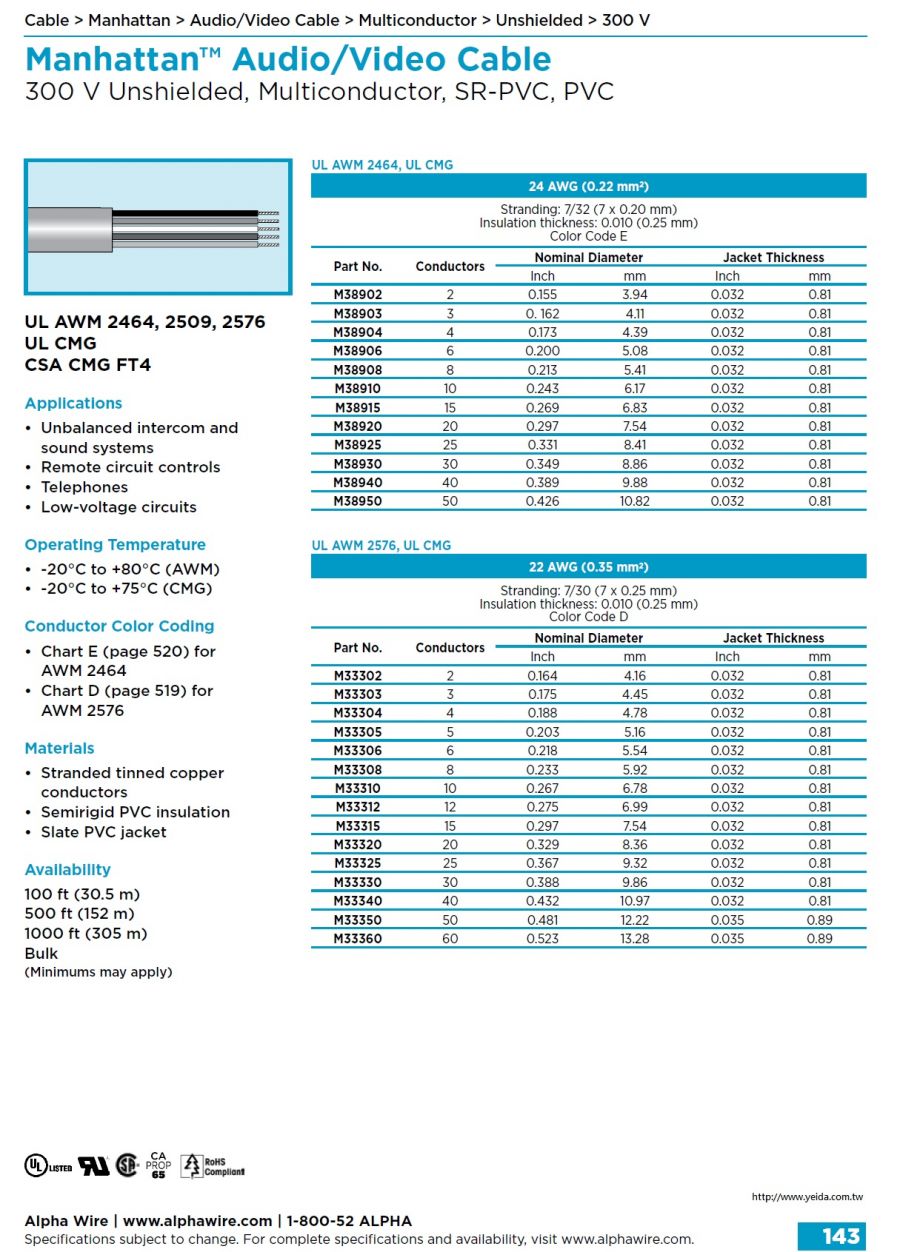

    ALPHA- Manhattan™ Audio/Video Cable (Awg 24, 22 ) 300 V Unshielded, Multiconductor, SR-PVC, PVC 影像音響儀表控制电缆
    看原圖
    		ALPHA-M38902

    商品編號: ALPHA-M38902

    ALPHA- Manhattan™ Audio/Video Cable (Awg 24, 22 ) 300 V Unshielded, Multiconductor, SR-PVC, PVC 影像音響儀表控制电缆


    Manhattan™ Audio/Video Cable
    300 V Unshielded, Multiconductor, SR-PVC, PVC
    UL AWM 2464, 2509, 2576
    UL CMG
    CSA CMG FT4
    　

    Applications
    • Unbalanced intercom and sound systems
    • Remote circuit controls
    • Telephones
    • Low-voltage circuits
    Operating Temperature
    • -20°C to +80°C (AWM)
    • -20°C to +75°C (CMG)
    Conductor Color Coding
    • Chart E (page 520) for
    AWM 2464
    • Chart D (page 519) for
    AWM 2576
    Materials
    • Stranded tinned copper conductors
    • Semirigid PVC insulation
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk
    (Minimums may apply)

    可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。



    Part # Cable Type Cable Shielding



    		 Cable Voltage　 Cable AWG NumberOf Elements　 Insulation Material CableJacket Material CableJacket Diameter
      M33302 Multi-Conductor UNSHIELDED 300 22 2 SR-PVC PVC 0.167 CA Prop 65, CSA CMG, CSA FT4, REACH Regulation (EC 1907/2006), UL AWM 2576, UL CMG
      M33303 Multi-Conductor UNSHIELDED 300 22 3 SR-PVC PVC 0.175
      M33304 Multi-Conductor UNSHIELDED 300 22 4 SR-PVC PVC 0.188
      M33305 Multi-Conductor UNSHIELDED 300 22 5 SR-PVC PVC 0.203
      M33306 Multi-Conductor UNSHIELDED 300 22 6 SR-PVC PVC 0.218
      M33308 Multi-Conductor UNSHIELDED 300 22 8 SR-PVC PVC 0.233
      M33310 Multi-Conductor UNSHIELDED 300 22 10 SR-PVC PVC 0.267
      M33312 Multi-Conductor UNSHIELDED 300 22 12 SR-PVC PVC 0.275
      M33315 Multi-Conductor UNSHIELDED 300 22 15 SR-PVC PVC 0.297
      M33320 Multi-Conductor UNSHIELDED 300 22 20 SR-PVC PVC 0.329
      M33325 Multi-Conductor UNSHIELDED 300 22 25 SR-PVC PVC 0.367
      M33330 Multi-Conductor UNSHIELDED 300 22 30 SR-PVC PVC 0.388
      M33340 Multi-Conductor UNSHIELDED 300 22 40 SR-PVC PVC 0.432
      M33350 Multi-Conductor UNSHIELDED 300 22 50 SR-PVC PVC 0.481
      M33360 Multi-Conductor UNSHIELDED 300 22 60 SR-PVC PVC 0.523
      M38902 Multi-Conductor UNSHIELDED 300 24 2 SR-PVC PVC 0.155 CA Prop 65, CSA CMG, CSA FT4, REACH Regulation (EC 1907/2006), UL AWM 2464, UL CMG
      M38903 Multi-Conductor UNSHIELDED 300 24 3 SR-PVC PVC 0.162
      M38904 Multi-Conductor UNSHIELDED 300 24 4 SR-PVC PVC 0.173
      M38906 Multi-Conductor UNSHIELDED 300 24 6 SR-PVC PVC 0.2
      M38908 Multi-Conductor UNSHIELDED 300 24 8 SR-PVC PVC 0.213
      M38910 Multi-Conductor UNSHIELDED 300 24 10 SR-PVC PVC 0.243
      M38915 Multi-Conductor UNSHIELDED 300 24 15 SR-PVC PVC 0.269
      M38920 Multi-Conductor UNSHIELDED 300 24 20 SR-PVC PVC 0.297
      M38925 Multi-Conductor UNSHIELDED 300 24 25 SR-PVC PVC 0.331
      M38930 Multi-Conductor UNSHIELDED 300 24 30 SR-PVC PVC 0.349
      M38940 Multi-Conductor UNSHIELDED 300 24 40 SR-PVC PVC 0.389
      M38950 Multi-Conductor UNSHIELDED 300 24 50 SR-PVC PVC 0.426
