    首頁 > > ALPHA-Manhattan™ Coaxial 同軸電纜

    ALPHA-9187A CA Prop 65, MIL - MIL-C-17/ RG-187A/U Teflon(PTFE) 75-Ohm 鐵氟龍鍍銀同軸電纜
    看原圖
    		代碼 ALPHA-9187A

    商品編號: ALPHA-9187A

    ALPHA-9187A CA Prop 65, MIL - MIL-C-17/ RG-187A/U Teflon(PTFE) 75-Ohm 鐵氟龍鍍銀同軸電纜

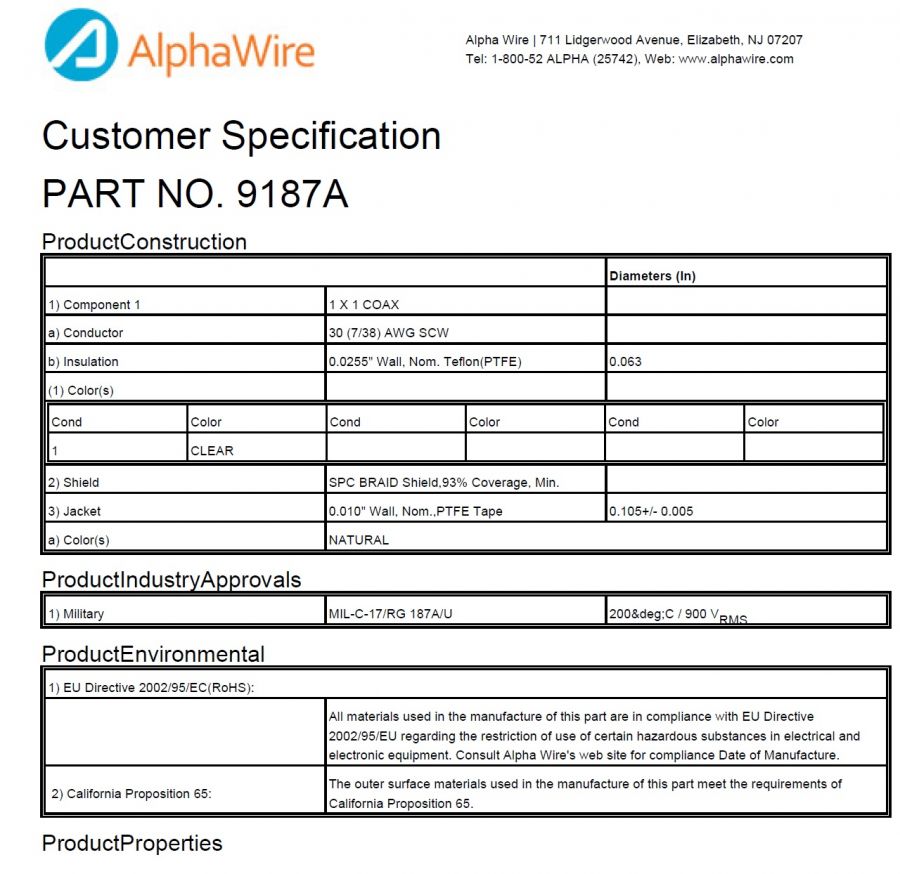

    部件号 Construction Type RG Type Impedance Shielding AWG Stranding Core Diameter Jacket Diameter Applicable Specifications
    9187A COAX 187 A/U 75 BRAID 30 7/38 0.063 0.105 CA Prop 65, MIL - MIL-C-17/RG 187A/U

    ProductConstruction

    　 Diameters (In)
    1) Component 1 1 X 1 COAX 　
    a) Conductor 30 (7/38) AWG SCW 　
    b) Insulation 0.0255" Wall, Nom. Teflon(PTFE) 0.063
    (1) Color(s) 　 　
    Cond Color Cond Color Cond Color
    1 CLEAR 　 　 　 　
    2) Shield SPC BRAID Shield,93% Coverage, Min. 　
    3) Jacket 0.010" Wall, Nom.,PTFE Tape 0.105+/- 0.005
    a) Color(s) NATURAL

    ProductIndustryApprovals

    1) Military MIL-C-17/RG 187A/U 200°C / 900 VRMS

    ProductEnvironmental

    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

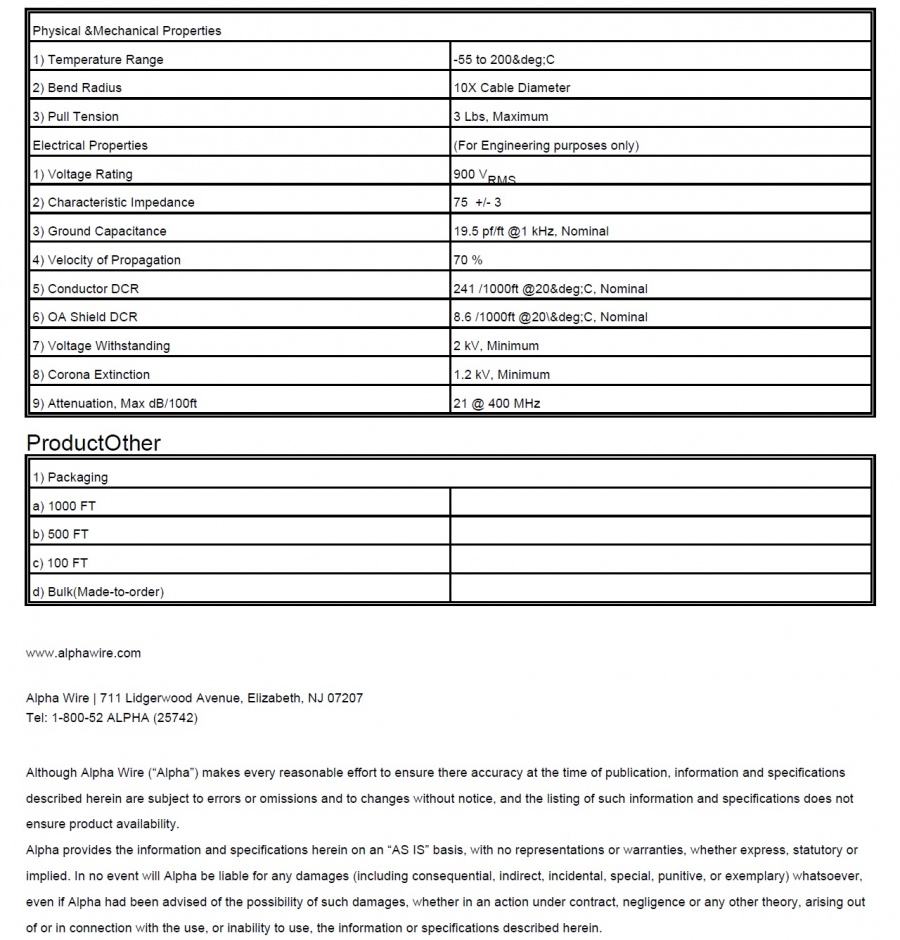

    ProductProperties

    Physical & Mechanical Properties
    1) Temperature Range -55 to 200°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 3 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 900 VRMS
    2) Characteristic Impedance 75 Ω +/- 3
    3) Ground Capacitance 19.5 pf/ft @1 kHz, Nominal
    4) Velocity of Propagation 70 %
    5) Conductor DCR 241 Ω/1000ft @20°C, Nominal
    6) OA Shield DCR 8.6 Ω/1000ft @20°C, Nominal
    7) Voltage Withstanding 2 kV, Minimum
    8) Corona Extinction 1.2 kV, Minimum
    9) Attenuation, Max dB/100ft 21 @ 400 MHz

    ProductOther

    1) Packaging
    a) 1000 FT 　
    b) 500 FT 　
    c) 100 FT 　
    d) Bulk(Made-to-order) 　

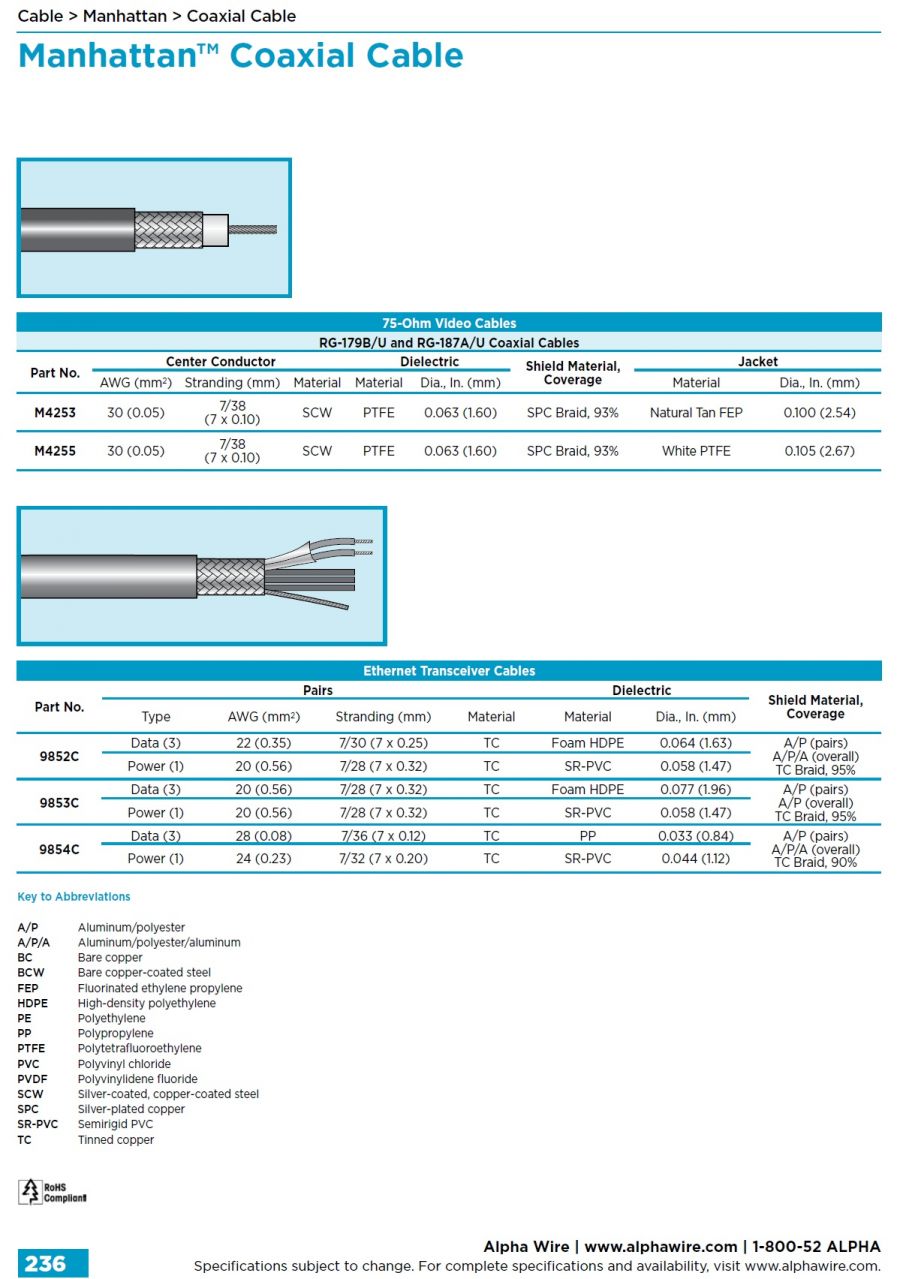

    对于全部50、75、93 和 100 欧姆同轴、双轴和三轴电缆，我们提供一系列绝缘和护套，以满足军用规格以及管理机构（例如 UL 和 CSA）的要求。对于广播级高品质视频传输，我们的精密视频电缆利用氟化乙丙烯电介质绝缘实现低电容、高传播速度以及较小的信号完整性偏差。



    Part # Construction Type RG Type　 Impedance Shielding AWG Stranding Core Diameter

    　

    		 Jacket Diameter
      9174 COAX 174/U 50 BRAID 26 7/34 0.06 0.102 CA Prop 65, MIL-C-17/RG 174 Type, UL AWM 1354
      9178B COAX 178 B/U 50 BRAID 30 7/38 0.034 0.071 CA Prop 65, MIL - MIL-C-17/RG 178B/U
      9179B COAX 179 B/U 75 BRAID 30 7/38 0.063 0.1 CA Prop 65, MIL - MIL-C-17/RG 179B/U
      9180B COAX 180 B/U 95 BRAID 30 7/38 0.102 0.141 CA Prop 65, MIL - MIL-C-17/RG 180B/U
      9187A COAX 187 A/U 75 BRAID 30 7/38 0.063 0.105 CA Prop 65, MIL - MIL-C-17/RG 187A/U
      9188A COAX 188 A/U 50 BRAID 25 7/.0067 0.06 0.105 CA Prop 65, MIL-C-17/RG 188A/U
      9196A COAX 196 A/U 50 BRAID 30 7/38 0.034 0.075 CA Prop 65, MIL - MIL-C-17/RG 196A/U
      9213 COAX 214/U 50 BRAID 13 7/.0296 0.285 0.405 CA Prop 65, MIL-C-17D/74A RG-213/U Type
      9214 COAX 214/U 50 BRAID 13 7/.0296 0.285 0.425 CSA - C(UL) TYPE CMX, MIL - MIL-C-17 / RG 214 Type, UL - AWM/STYLE 1354, UL - CMX
      9217 COAX 217/U 50 BRAID 10 1/.106 0.37 0.545 CA Prop 65, MIL-C-17D/78A RG-217/U
      9223 COAX 223/U 50 BRAID 19 1/.035 0.116 0.212 CA Prop 65, MIL-C-17D/84B RG 223/U
      9316 COAX 316/U 50 BRAID 25 7/.0067 0.06 0.098 CA Prop 65, CSA - C(UL) TYPE CMG, CSA - FT4, MIL - MIL-C-17/RG 316/U, UL AWM 1971, UL CMG
      9810 COAX Video Cable 75 FOIL/BRAID 23 Solid 0.146 0.22 CA Prop 65, MIL-C-17/RG 59/U type
      9817 PAIR Twinax 100 BRAID 20 7/28 0.236 0.33 UL AWM 2498
      9823 COAX Twinax 150 FOIL 22 19/34 0.12 0.329 CA Prop 65, UL AWM 2668
      9830 COAX 59/U 75 BRAID 22 Solid 0.146 0.242 CA Prop 65, MIL - JAN-C-17A/RG-59/U, UL AWM 1354
      9848 COAX 58/U 50 BRAID 18 Solid 0.116 0.195 CA Prop 65, MIL-C-17/RG 58/U TYPE, UL AWM 1354
      9852C PAIR Ethernet 78 FOIL/BRAID 22 7/30 　 0.34 CSA CMG, CSA FT4, UL AWM 2919, UL CM
      9853C PAIR IEEE 802.3 78 FOIL/BRAID 20 7/28 　 0.395 CSA CMG, CSA FT4, UL CL2, UL CM
      9854C PAIR Mini 78 FOIL/BRAID 28 7/36 　 0.25 CSA CMG, CSA FT4, UL AWM 2919, UL CL2
