ALPHA-M4220 CA Prop 65, MIL-C-17/ RG-108 TYPE Twinax Cables 78-Ohm 雙芯同軸電纜

ALPHA-M4220

商品編號: ALPHA-M4220

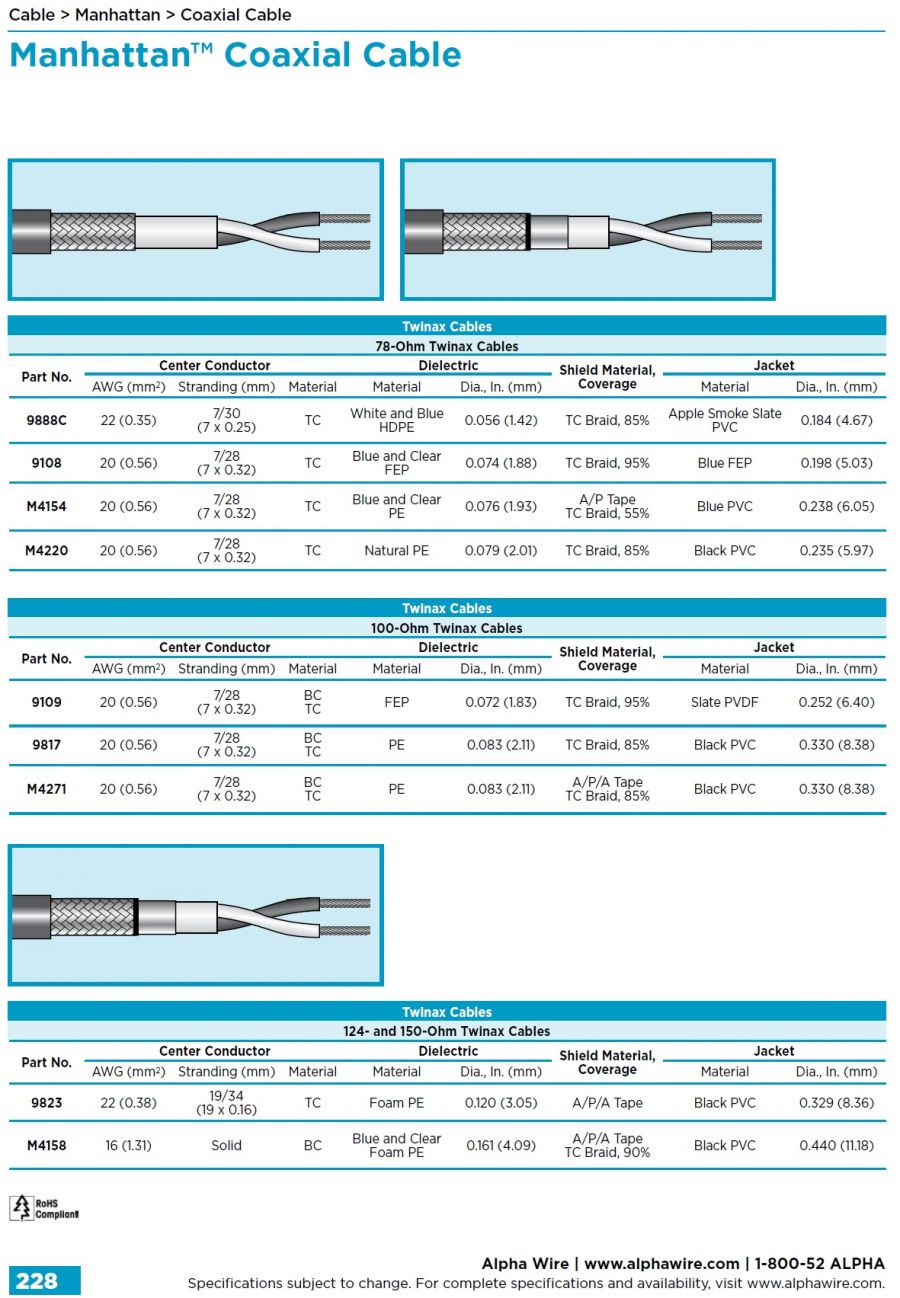

ALPHA-M4220 CA Prop 65, MIL-C-17/ RG-108 TYPE Twinax Cables 78-Ohm 雙芯同軸電纜

部件号	Construction Type	RG Type	Impedance	Shielding	AWG	Stranding	Core Diameter	Jacket Diameter	Applicable Specifications
M4220	COAX	108 A/U	78	BRAID	20	7/28	0.079	0.235	CA Prop 65, MIL-C-17/RG 108 TYPE

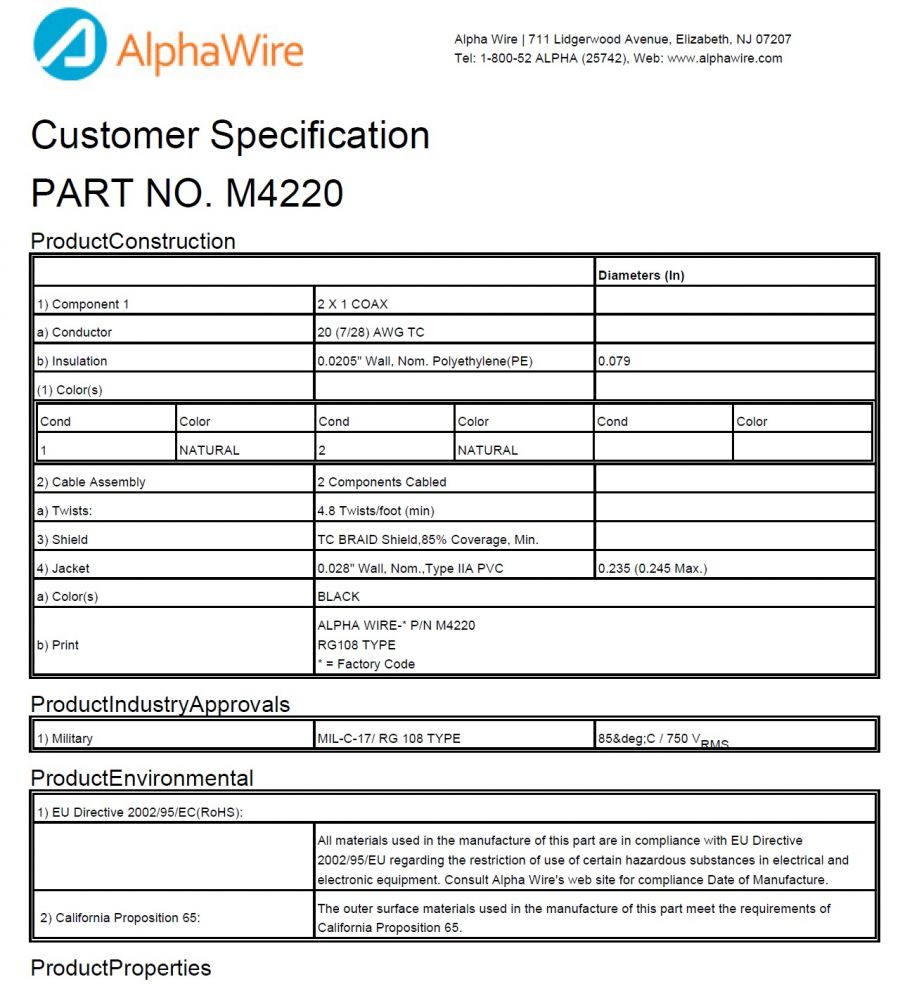

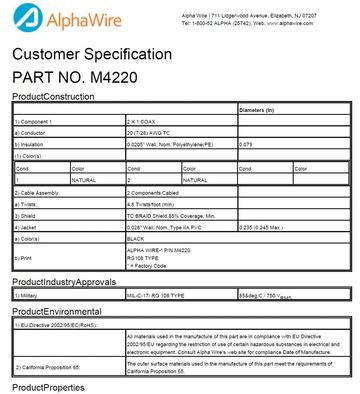

ProductConstruction

Diameters (In)

1) Component 1

2 X 1 COAX

a) Conductor

20 (7/28) AWG TC

b) Insulation

0.0205" Wall, Nom. Polyethylene(PE)

0.079

(1) Color(s)

Cond	Color	Cond	Color	Cond	Color
1	NATURAL	2	NATURAL

2) Cable Assembly

2 Components Cabled

a) Twists:

4.8 Twists/foot (min)

3) Shield

TC BRAID Shield,85% Coverage, Min.

4) Jacket

0.028" Wall, Nom.,Type IIA PVC

0.235 (0.245 Max.)

a) Color(s)

BLACK

b) Print

ALPHA WIRE-* P/N M4220
RG108 TYPE
* = Factory Code
　

ProductIndustryApprovals

1) Military

MIL-C-17/ RG 108 TYPE

85°C / 750 VRMS

ProductEnvironmental

1) EU Directive 2002/95/EC(RoHS):
	All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
2) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

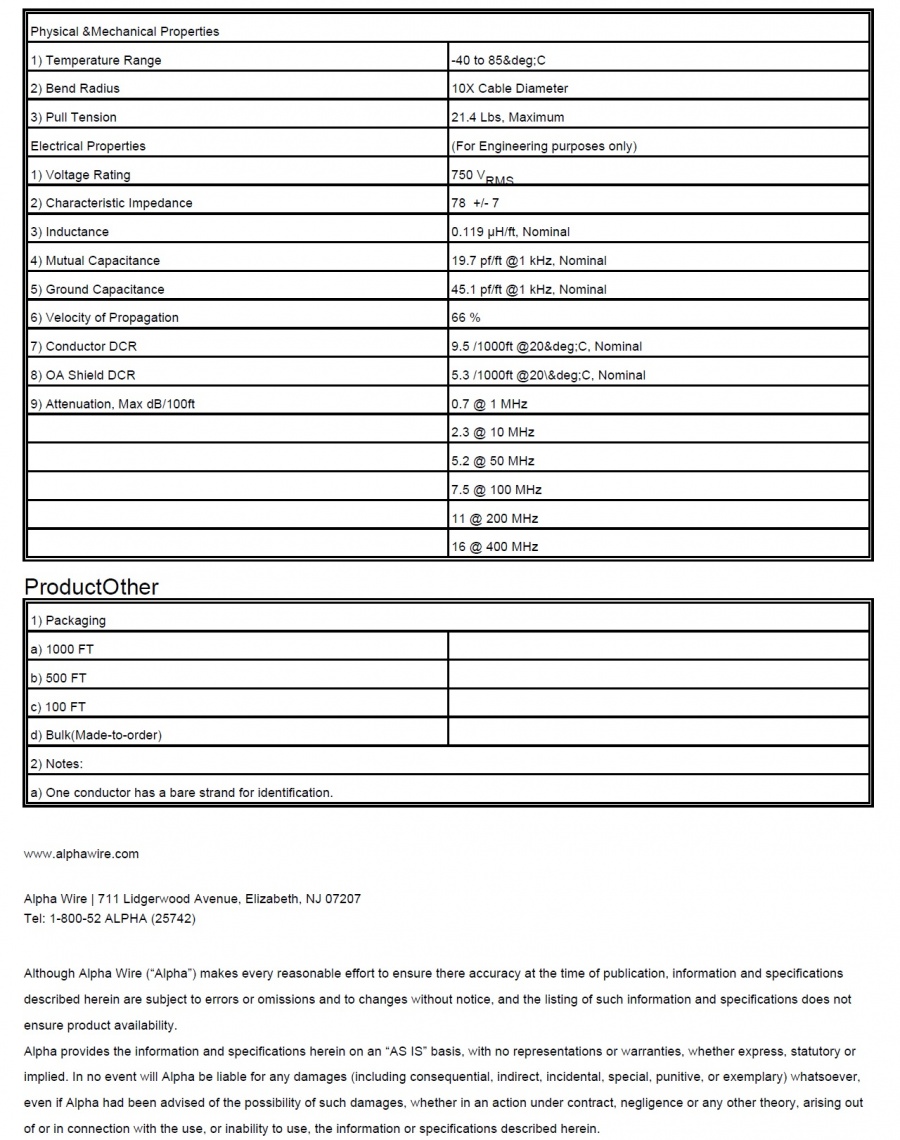

ProductProperties

Physical & Mechanical Properties
1) Temperature Range	-40 to 85°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	21.4 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	750 VRMS
2) Characteristic Impedance	78 Ω +/- 7
3) Inductance	0.119 µH/ft, Nominal
4) Mutual Capacitance	19.7 pf/ft @1 kHz, Nominal
5) Ground Capacitance	45.1 pf/ft @1 kHz, Nominal
6) Velocity of Propagation	66 %
7) Conductor DCR	9.5 Ω/1000ft @20°C, Nominal
8) OA Shield DCR	5.3 Ω/1000ft @20°C, Nominal
9) Attenuation, Max dB/100ft	0.7 @ 1 MHz
	2.3 @ 10 MHz
	5.2 @ 50 MHz
	7.5 @ 100 MHz
	11 @ 200 MHz
	16 @ 400 MHz

ProductOther

1) Packaging
a) 1000 FT
b) 500 FT
c) 100 FT
d) Bulk(Made-to-order)
2) Notes:
a) One conductor has a bare strand for identification.

对于全部50、75、93 和 100 欧姆同轴、双轴和三轴电缆，我们提供一系列绝缘和护套，以满足军用规格以及管理机构（例如 UL 和 CSA）的要求。对于广播级高品质视频传输，我们的精密视频电缆利用氟化乙丙烯电介质绝缘实现低电容、高传播速度以及较小的信号完整性偏差。

符合性证明

敬启者：

Alpha Wire 部件号：M4220

M4220 ，符合RoHS标准，以 2006/2/1 的生产为开始

兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。

危险物质	最大控制值
铅	按重量计算不得超过0.1% (1000 ppm)
汞	按重量计算不得超过0.1% (1000 ppm)
镉	按重量计算不得超过0.01% (100 ppm)
六价镉	按重量计算不得超过0.1% (1000 ppm)
聚溴联苯 (PBB)	按重量计算不得超过0.1% (1000 ppm)
聚溴二苯醚 (PBDE)
台卡二苯醚	按重量计算不得超过0.1% (1000 ppm)

Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。

Alpha Wire 公司授权代表签字：

技术及质保部总监 Dave Watson
