    首頁 > > ALPHA-Manhattan™ Control Cable控制電纜

    ALPHA- MWP PLTC/ITC/CM/CL3 • (Awg22 to 12) 2 and 3 Conductor • Foil Shielded - Overall 300V 105°C PVC- PVC 鋁箔隔離2C,3C電腦 工業自動化控制電纜

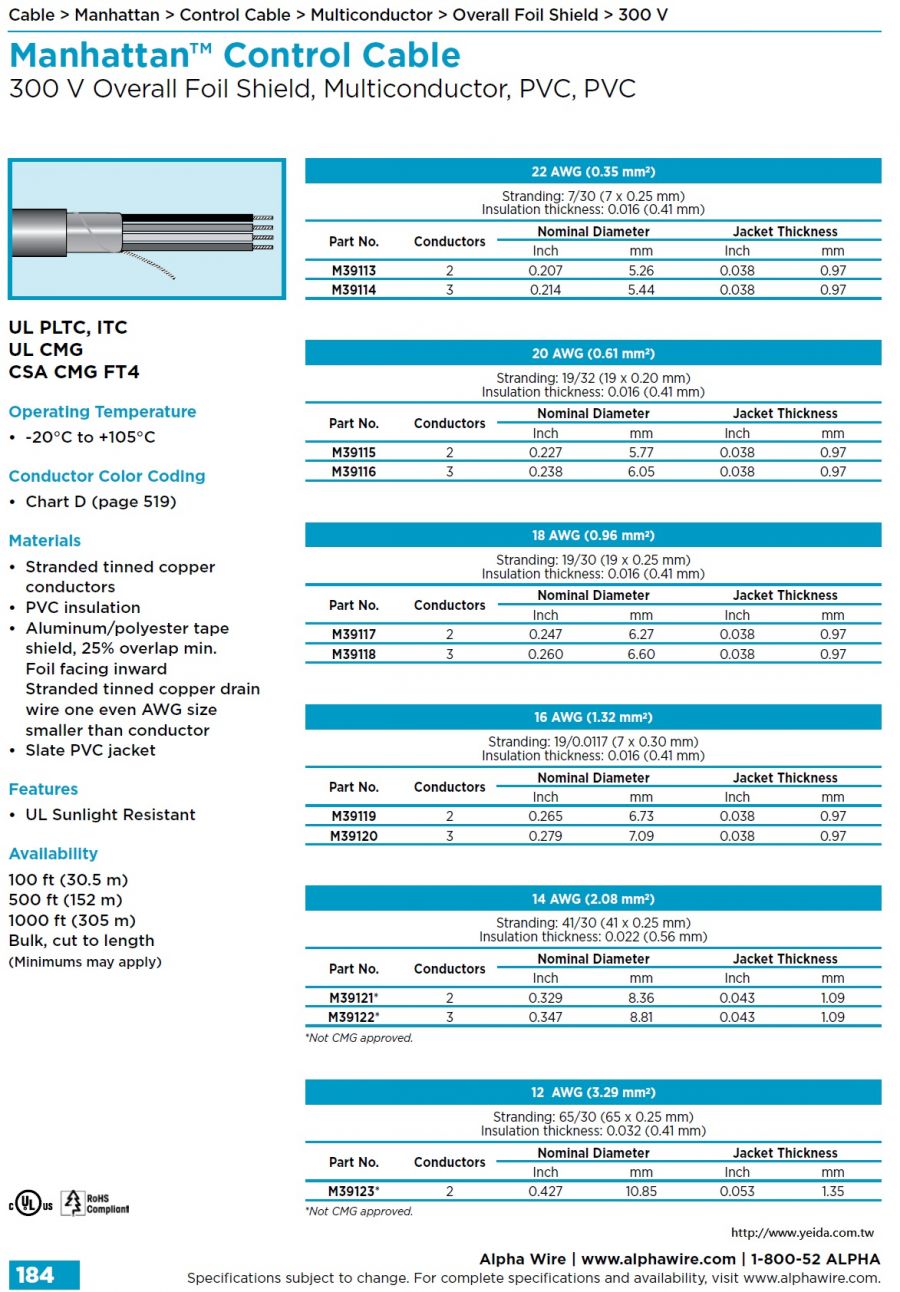

    看原圖
    ALPHA-M39113


    商品編號: ALPHA-M39113

    ALPHA- MWP PLTC/ITC/CM/CL3 • (Awg22 to 12) 2 and 3 Conductor • Foil Shielded - Overall 300V 105°C PVC- PVC 鋁箔隔離2C,3C電腦 工業自動化控制電纜



    Manhattan™ Control Cable
    300 V Overall Foil Shield, Multiconductor, PVC, PVC
    SPECIFICATIONS:
    NEC CEC
    UL Listed Subject 13, 2250
    NEC Article 800
    NEC Article 727
    NEC Article 725
    NEC Type PLTC/ITC/CM
    NEC Type PLTC/ITC/CL3
    IEEE 383 70,000 BTU
    UL 1581
    CEC/CSA - (FT-4)


    DESCRIPTION:                                                                                                                                                                 For: Industrial automation and process control


    Operating Temperature
    • -20°C to +105°C
    Conductor Color Coding
    • Chart D (page 519)
    Materials
    • Stranded tinned copper conductors
    • PVC insulation
    • Aluminum/polyester tape shield, 25% overlap min.
         Foil facing inward Stranded tinned copper drain
         wire one even AWG size smaller than conductor
    • Slate PVC jacket
    Features
    • UL Sunlight Resistant
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)

    Manhattan™ Electrical Cable

    Signal transmission made reliable

    Reliable, durable cable is the centerpiece of any electrical system and Alpha Wire’s Manhattan brand has been a trusted and reliable source of cable for over 60 years. Whether you need something as simple as a power cord or a cable which can maintain audio-video signal integrity in a noisy environment, you’ll find the breadth and depth of products to ensure an optimum solution to your application.

    Manhattan Electrical Cables Brochure

    Types of Manhattan™ Electrical Cable
    • Audio/Video

      From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    • Computer

      For precise signal transmission in computers and control applications, we offer the widest range of shielded and unshielded configurations.

    • Instrumentation

      With our broad product portfolio of single and multiple pair shielded and unshielded products, you’ll be able to satisfy any application in any environment.

    • Thermocouple

      You can find the perfect thermocouple cable based on conductor combinations JX, KX, EX, and SX, as well as insulations suited for applications up to 649°C.

    • Control

      We offer UL style TC in a variety of conductor counts, gauges, shielding options, all with durable PVC/nylon insulation and PVC jackets.

    • Plenum

      We offer a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.

    • Coaxial

      For a complete range of 50, 75, 93, and 100 ohm coaxial, twinaxial, and triaxial cables, we offer a wide range of insulations and jackets meeting the requirements of military specifications and regulatory agencies such as UL and CSA.

    • Cords/Cordsets

      For consumer and industrial devices, business and communication machines, and medical and test equipment, our cords give you everything you need for reliable plugin power.

    • High Temperature

      Alpha Wire’s Manhattan brand of high-temperature cables are available for temperatures ranging from 150°C to 540°C.

    • Security & Data

      A complete product family of security and data cables, optimized for security video, data, and monitoring applications.
