    ALPHA- MWP Power Limited Tray Cable • Multipair • Foil Shield - Individual• (Awg22, 18) 300V 105°C PVC- PVC 個別隔離電腦 工業自動化控制電纜
    看原圖
    ALPHA-M39147


    商品編號:
     ALPHA-M39147

    ALPHA- MWP Power Limited Tray Cable • Multipair • Foil Shield - Individual• (Awg22, 18) 300V 105°C PVC- PVC 個別隔離電腦 工業自動化控制電纜



    Manhattan™ Control Cable

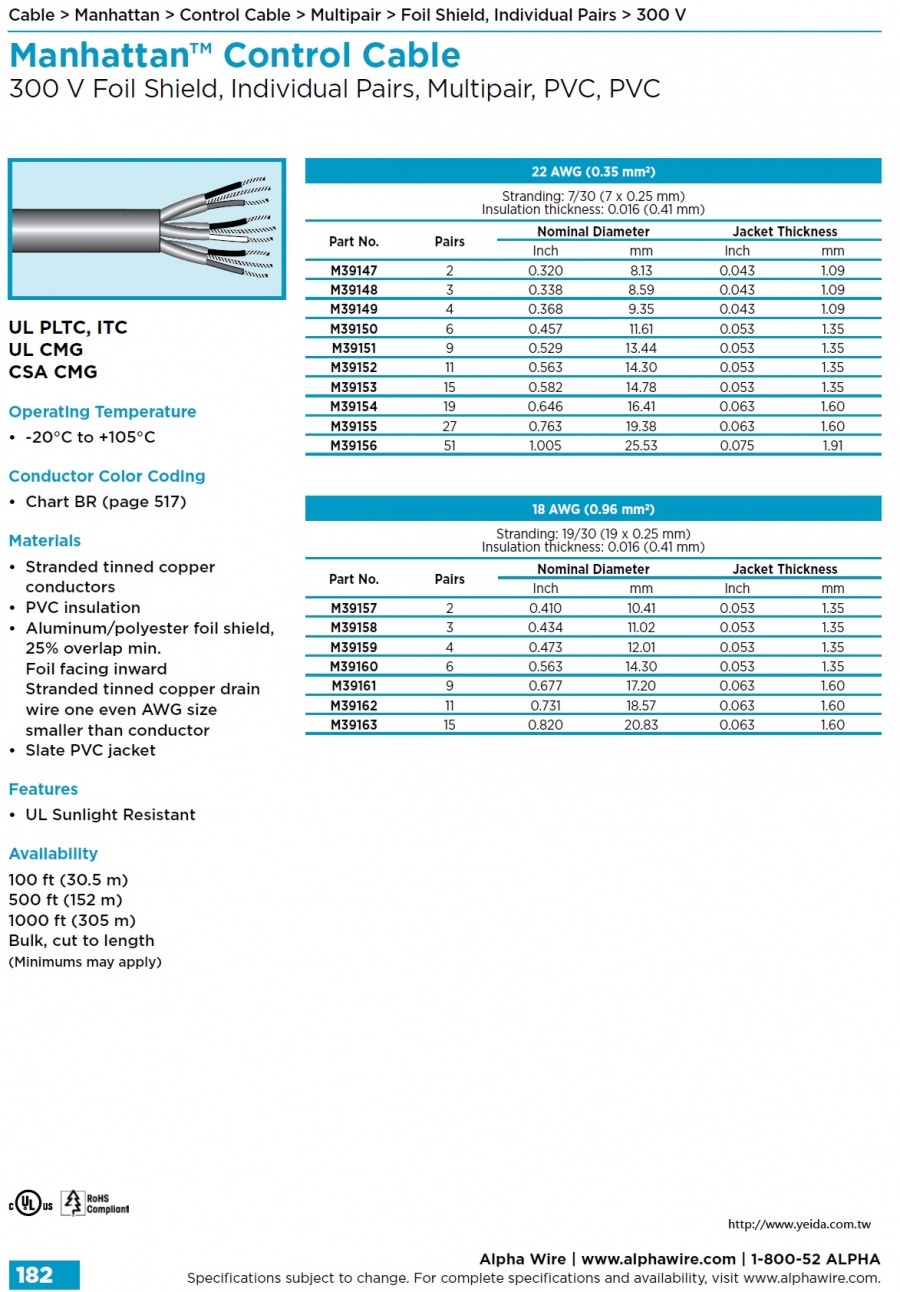

    300 V Foil Shield, Individual Pairs, Multipair, PVC, PVC
    SPECIFICATIONS:
    NEC CEC
    UL Listed Subject 13, 2250
    NEC Article 800
    NEC Article 727
    NEC Article 725
    NEC Type PLTC/ITC/CM
    NEC Type PLTC/ITC/CL3
    IEEE 383 70,000 BTU
    UL 1581
    CEC/CSA - (FT-4)


    DESCRIPTION:
    For: Industrial automation and process control.
    Color Code: Blk, Red. Pairs numbered for
    ICEA Method 1 K-5


    Operating Temperature
    • -20°C to +105°C
    Conductor Color Coding
    • Chart D (page 519)
    Materials
    • Stranded tinned copper conductors
    • PVC insulation
    • Aluminum/polyester foil shield, 25% overlap min.
         Foil facing inward Stranded tinned copper drain
         wire one even AWG size smaller than conductor
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)


    Manhattan™ Electrical Cable

    Signal transmission made reliable

    Reliable, durable cable is the centerpiece of any electrical system and Alpha Wire’s Manhattan brand has been a trusted and reliable source of cable for over 60 years. Whether you need something as simple as a power cord or a cable which can maintain audio-video signal integrity in a noisy environment, you’ll find the breadth and depth of products to ensure an optimum solution to your application.

    Manhattan Electrical Cables Brochure

    Types of Manhattan™ Electrical Cable
    • Audio/Video

      From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    • Computer

      For precise signal transmission in computers and control applications, we offer the widest range of shielded and unshielded configurations.

    • Instrumentation

      With our broad product portfolio of single and multiple pair shielded and unshielded products, you’ll be able to satisfy any application in any environment.

    • Thermocouple

      You can find the perfect thermocouple cable based on conductor combinations JX, KX, EX, and SX, as well as insulations suited for applications up to 649°C.

    • Control

      We offer UL style TC in a variety of conductor counts, gauges, shielding options, all with durable PVC/nylon insulation and PVC jackets.

    • Plenum

      We offer a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.

    • Coaxial

      For a complete range of 50, 75, 93, and 100 ohm coaxial, twinaxial, and triaxial cables, we offer a wide range of insulations and jackets meeting the requirements of military specifications and regulatory agencies such as UL and CSA.

    • Cords/Cordsets

      For consumer and industrial devices, business and communication machines, and medical and test equipment, our cords give you everything you need for reliable plugin power.

    • High Temperature

      Alpha Wire’s Manhattan brand of high-temperature cables are available for temperatures ranging from 150°C to 540°C.

    • Security & Data

      A complete product family of security and data cables, optimized for security video, data, and monitoring applications.

    Part # Type  Shielding Voltage  AWG # of Elements



    Jacket Material



    Insulation Material



    Jacket Diameter
    M39150 Pair UNSHIELDED 300 22 6 PVC PVC 0.457 CSA CMG, UL CMG, UL ITC, UL PLTC, UL SUN RES
    M39151 Pair UNSHIELDED 300 22 9 PVC PVC 0.529
    M39152 Pair UNSHIELDED 300 22 11 PVC PVC 0.571
    M39153 Pair UNSHIELDED 300 22 15 PVC PVC 0.591
    M39154 Pair UNSHIELDED 300 22 19 PVC PVC 0.656
    M39155 Pair UNSHIELDED 300 22 27 PVC PVC 0.775
    M39156 Pair UNSHIELDED 300 22 51 PVC PVC 1.022
    M39157 Pair UNSHIELDED 300 18 2 PVC PVC 0.41
    M39158 Pair UNSHIELDED 300 18 3 PVC PVC 0.434
    M39159 Pair UNSHIELDED 300 18 4 PVC PVC 0.473
    M39160 Pair UNSHIELDED 300 18 6 PVC PVC 0.563
    M39161 Pair UNSHIELDED 300 18 9 PVC PVC 0.677
    M39162 Pair UNSHIELDED 300 18 11 PVC PVC 0.731
    M39163 Pair UNSHIELDED 300 18 15 PVC PVC 0.82
    M39147 Pair UNSHIELDED 300 22 2 PVC PVC 0.32
    M39148 Pair UNSHIELDED 300 22 3 PVC PVC 0.338
    M39149 Pair UNSHIELDED 300 22 4 PVC PVC 0.368
