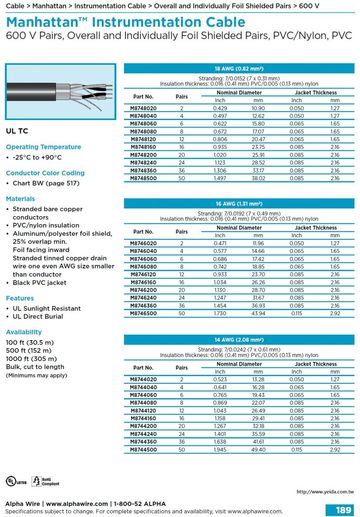

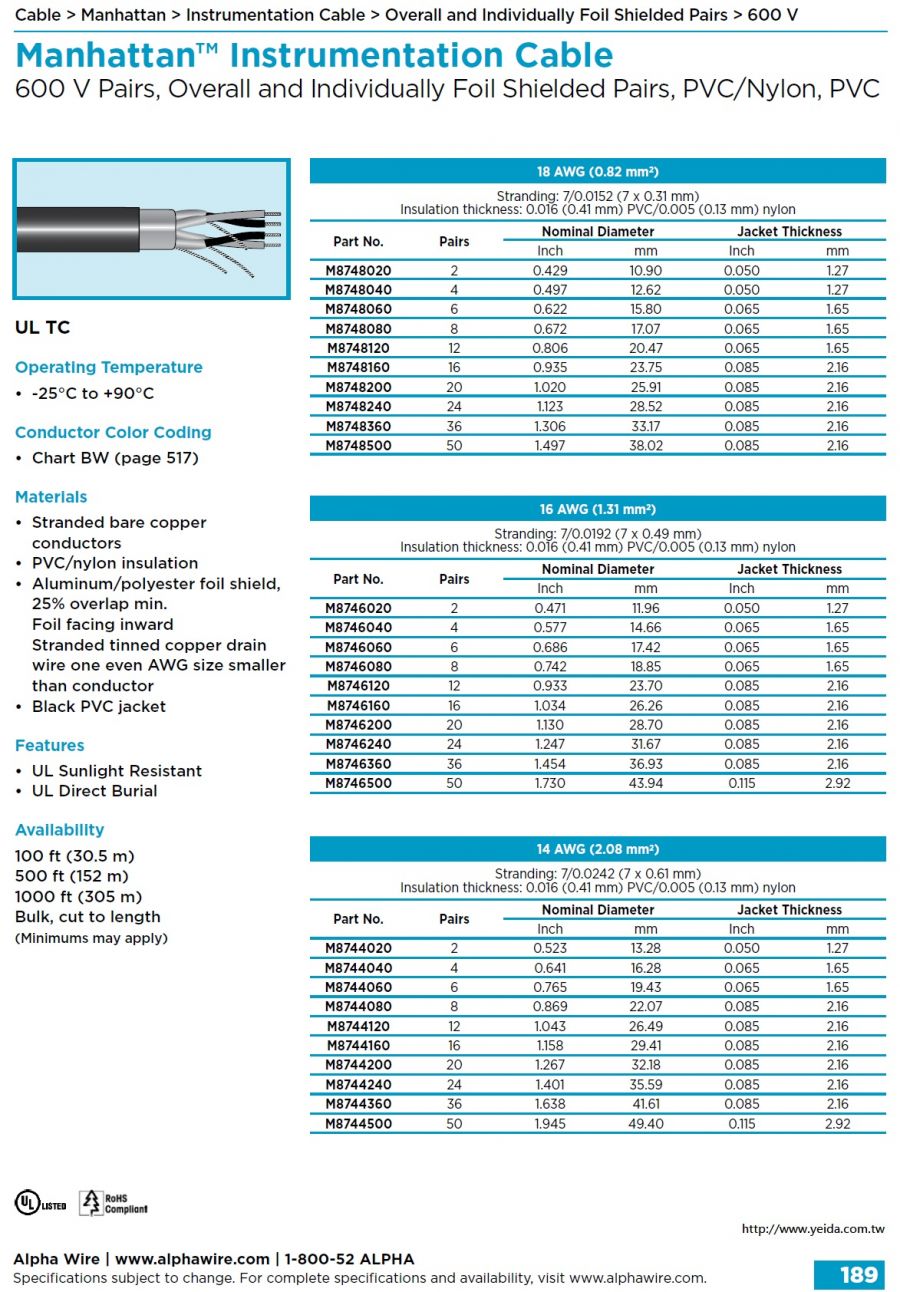

Manhattan™ Instrumentation Cable
600 V Pairs, Overall and Individually Foil Shielded Pairs, PVC/Nylon, PVC
UL TC
Operating Temperature
• -25°C to +90°C
Conductor Color Coding
• Chart BW (page 517)
Materials
• Stranded bare copper conductors
• PVC/nylon insulation
• Aluminum/polyester foil shield, 25% overlap min.
     Foil facing inward Stranded tinned copper drain
     wire one even AWG size smaller than conductor
• Black PVC jacket
Features
• UL Sunlight Resistant
• UL Direct Burial
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)
