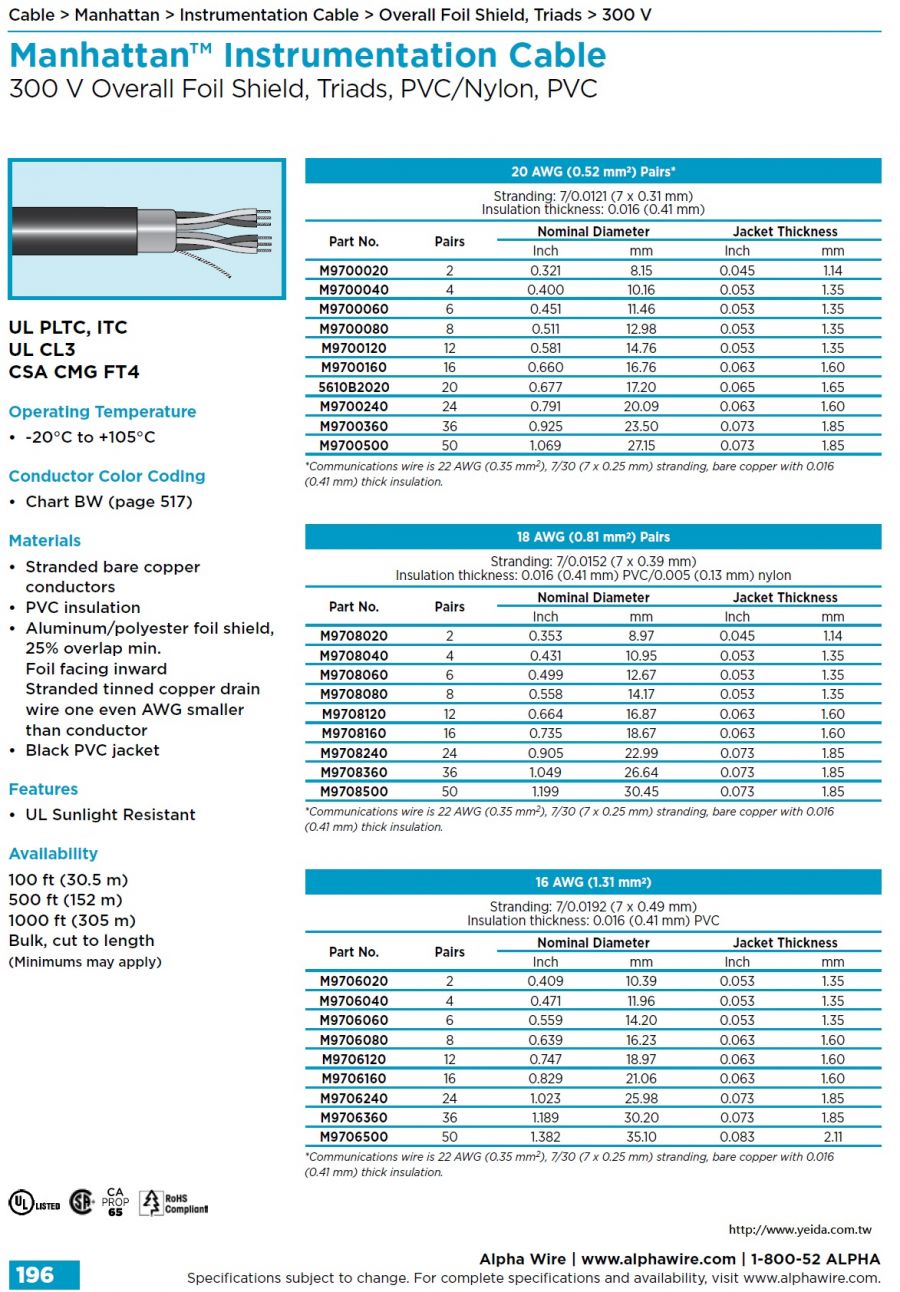

    ALPHA- MWP Instrumentation Cable• 300 V Overall Foil Shield, Multipair(Composite) , PVC/ PVC (Awg 20, 18, 16) + Awg22 複合式對型總鋁箔隔離儀表控制電纜

    商品編號: ALPHA-M9700020

    ALPHA- MWP Instrumentation Cable• 300 V Overall Foil Shield, Multipair(Composite) , PVC/ PVC (Awg 20, 18, 16) + Awg22 複合式對型總鋁箔隔離儀表控制電纜


    Manhattan™ Instrumentation Cable
    300V • Multipair • Foil Shield - Overall 105° C PLTC/ITC/CL3

     Stranded bare copper, ASTM B-8
    Insulation: Color coded PVC
    Shield: Aluminum/polyester foil
    Drain Wire: Stranded tinned copper Awg 22
    Ripcord: Nylon
    Jacket: Black PVC
    For: Process instrumentation and control. Analog and
            Class 1, Division 2 locations.
    Color Code: Black, white. digital signaling.
                           Alpha/numeric print on white conductor.
    Advantages: Overall shield plus twisted pairs provide
                            superior protection against electrostatic
                            and electromagnetic

    UL Listed Subject 13, 2250
    NEC Article 725
    NEC Article 727
    IEEE 383 70,000 BTU
    UL 1581
    ICEA T-29-520 210,000 BTU
    ICEA S-61-402
    CEC/CSA - (FT-4)
    Sunlight Resistant

    Manhattan™ Electrical Cable

    Signal transmission made reliable

    Reliable, durable cable is the centerpiece of any electrical system and Alpha Wire’s Manhattan brand has been a trusted and reliable source of cable for over 60 years. Whether you need something as simple as a power cord or a cable which can maintain audio-video signal integrity in a noisy environment, you’ll find the breadth and depth of products to ensure an optimum solution to your application.

    Manhattan Electrical Cables Brochure



    Types of Manhattan™ Electrical Cable
    • Audio/Video

      From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    • Computer

      For precise signal transmission in computers and control applications, we offer the widest range of shielded and unshielded configurations.

    • Instrumentation

      With our broad product portfolio of single and multiple pair shielded and unshielded products, you’ll be able to satisfy any application in any environment.

    • Thermocouple

      You can find the perfect thermocouple cable based on conductor combinations JX, KX, EX, and SX, as well as insulations suited for applications up to 649°C.

    • Control

      We offer UL style TC in a variety of conductor counts, gauges, shielding options, all with durable PVC/nylon insulation and PVC jackets.

    • Plenum

      We offer a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.

    • Coaxial

      For a complete range of 50, 75, 93, and 100 ohm coaxial, twinaxial, and triaxial cables, we offer a wide range of insulations and jackets meeting the requirements of military specifications and regulatory agencies such as UL and CSA.

    • Cords/Cordsets

      For consumer and industrial devices, business and communication machines, and medical and test equipment, our cords give you everything you need for reliable plugin power.

    • High Temperature

      Alpha Wire’s Manhattan brand of high-temperature cables are available for temperatures ranging from 150°C to 540°C.

    • Security & Data

      A complete product family of security and data cables, optimized for security video, data, and monitoring applications.

    Part # Type  Shielding Voltage AWG No OfElements


    Jacket Diameter
    M9700020 Composite FOIL 300 20+22 3 0.321 CA Prop 65, CSA CMG, CSA FT4, UL CL3, UL ITC, UL PLTC, UL SUN RES
