ALPHA-300 V (Awg 24, 22, 20, 18, 16) Foil Shield, Multiconductor, (-20°C to +75°C) PVC, Plenum Rated 天花板隔層鋁箔隔離电缆

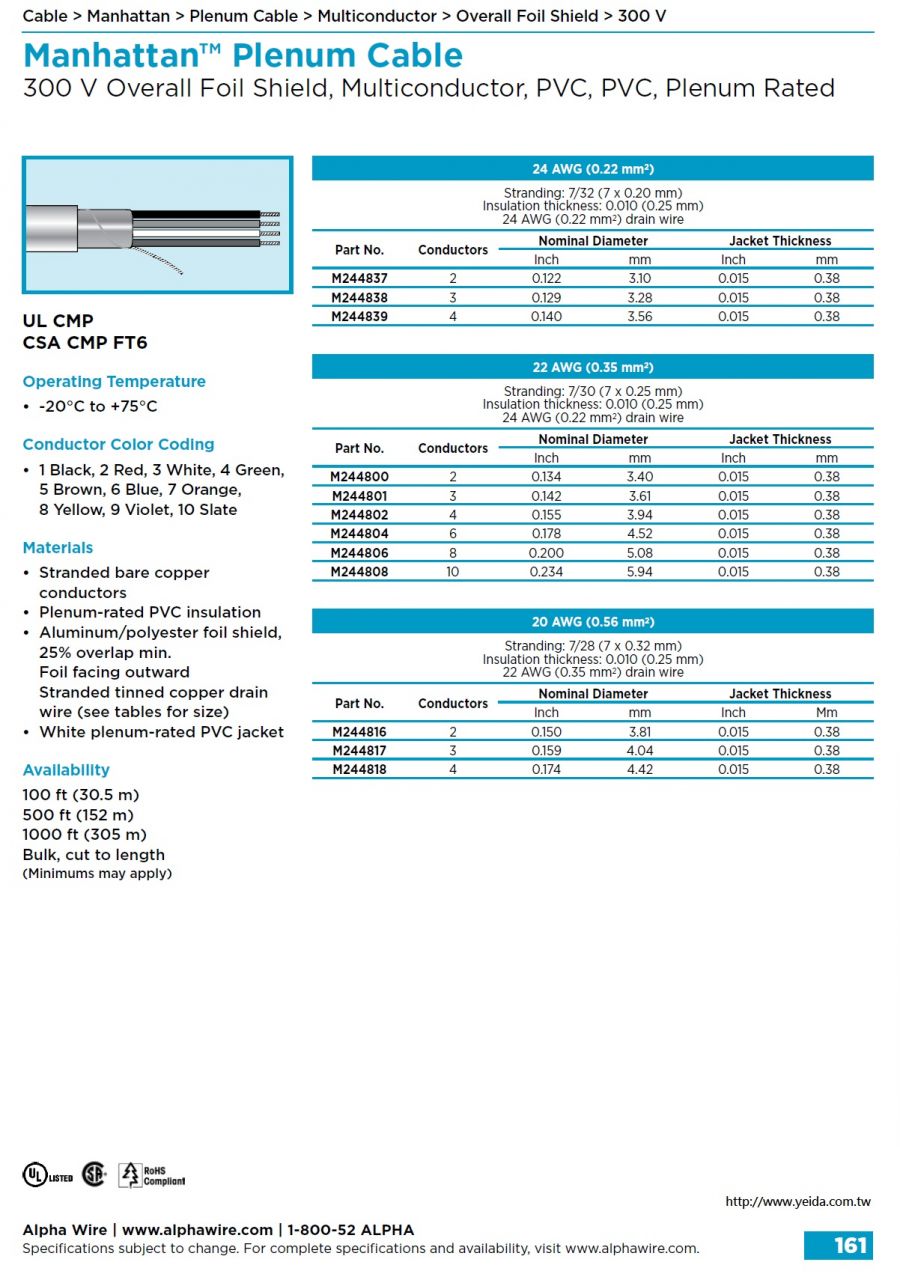

Manhattan™ Plenum Cable
300 V Overall Foil Shield, Multiconductor, PVC, PVC, Plenum Rated
UL CMP
CSA CMP FT6
Operating Temperature
• -20°C to +75°C Conductor Color Coding
• 1 Black, 2 Red, 3 White, 4 Green,
5 Brown, 6 Blue, 7 Orange,
8 Yellow, 9 Violet, 10 Slate Materials
• Stranded bare copper conductors
• Plenum-rated PVC insulation
• Aluminum/polyester foil shield, 25% overlap min. Foil facing outward
Stranded tinned copper drain wire (see tables for size)
• White plenum-rated PVC jacket Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)
整套适用于控制、计算机互连、保安、警报器和建筑能源管理系统的电缆,它们拥有不同的防火级绝缘和护套。
a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.
