    首頁 > > ALPHA-Manhattan™ Plenum Cable天花板隔層电缆

    ALPHA-300 V (Awg 22, 18) Foil Shield, Multiconductor, (-40°C to +125°C) FEP-PVDF, Plenum Rated 天花板隔層鋁箔隔離电缆
    看原圖
    		ALPHA-M413226

    商品編號: ALPHA-M413226

    ALPHA-300 V (Awg 22, 18) Foil Shield, Multiconductor, (-40°C to +125°C) FEP-PVDF, Plenum Rated 天花板隔層鋁箔隔離电缆

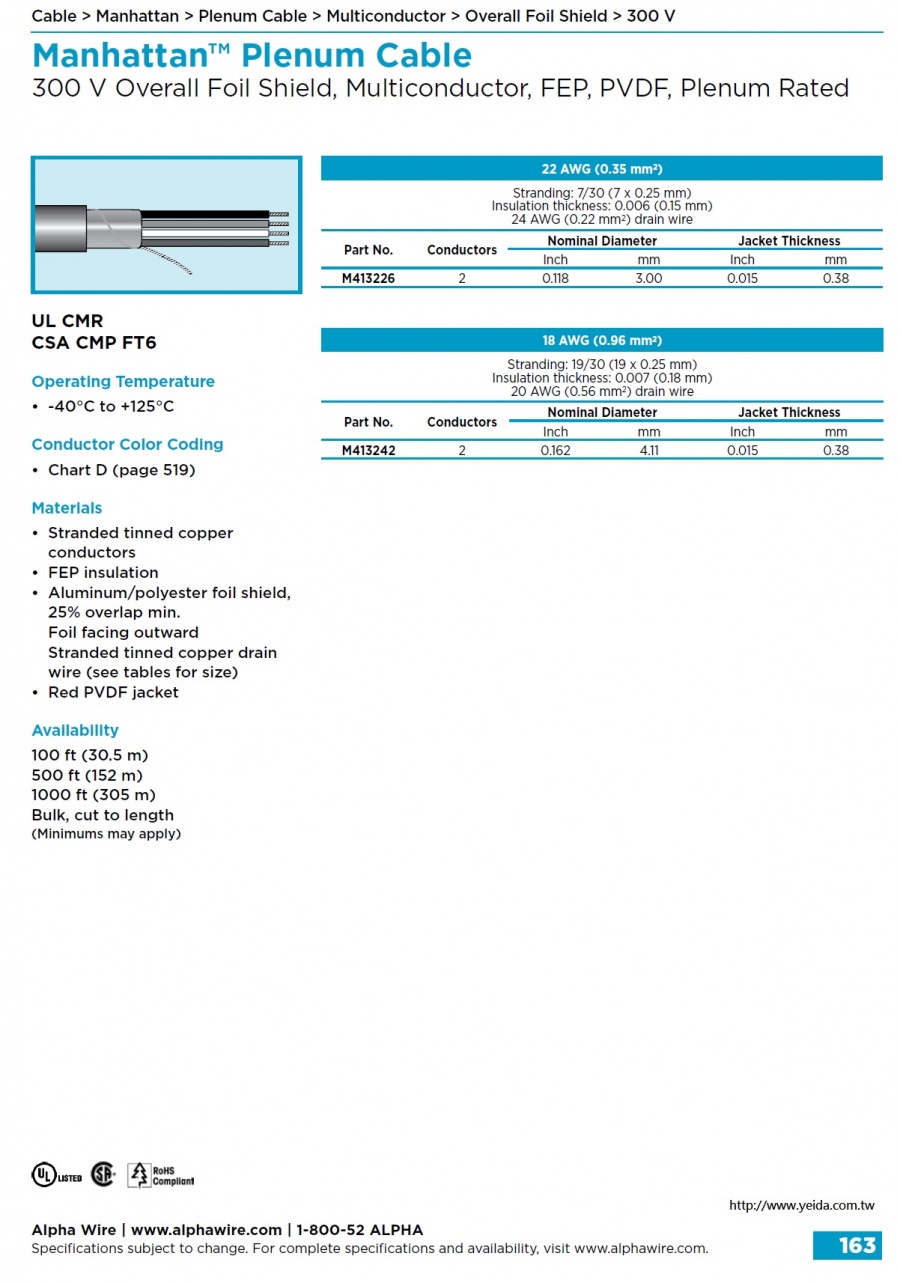

    Manhattan™ Plenum Cable
    300 V Overall Foil Shield, Multiconductor, FEP, PVDF, Plenum Rated
    UL CMR
    CSA CMP FT6


    Operating Temperature
    • -40°C to +125°C
    Conductor Color Coding
    • Chart D (page 519)
    Materials
    • Stranded tinned copper conductors
    • FEP insulation
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing outward
         Stranded tinned copper drain wire (see tables for size)
    • Red PVDF jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)




    整套适用于控制、计算机互连、保安、警报器和建筑能源管理系统的电缆，它们拥有不同的防火级绝缘和护套。

    a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.

    Part # Type Shielding Voltage AWG # of Elements

    　

    		 Jacket Material  Insulation  Material

    　

    		 Jacket Diameter

    　
    M244800 Multi-Conductor FOIL 300 22 2 PPVC PPVC 0.134 CSA CMP, CSA FT6, UL CMP
    M244801 Multi-Conductor FOIL 300 22 3 PPVC PPVC 0.142 CSA CMP, CSA FT6, UL CMP
    M244802 Multi-Conductor FOIL 300 22 4 PPVC PPVC 0.155 CSA CMP, CSA FT6, UL CMP
    M244804 Multi-Conductor FOIL 300 22 6 PPVC PPVC 0.185 CSA CMP, CSA FT6, UL CMP
    M244806 Multi-Conductor FOIL 300 22 8 PPVC PPVC 0.2 CSA CMP, CSA FT6, UL CMP
    M244808 Multi-Conductor FOIL 300 22 10 PPVC PPVC 0.234 CSA CMP, CSA FT6, UL CMP
    M244816 Multi-Conductor FOIL 300 20 2 PPVC PPVC 0.15 CSA CMP, CSA FT6, UL CMP
    M244817 Multi-Conductor FOIL 300 20 3 PPVC PPVC 0.159 CSA CMP, CSA FT6, UL CMP
    M244818 Multi-Conductor FOIL 300 20 4 PPVC PPVC 0.174 CSA CMP, CSA FT6, UL CMP
    M244837 Multi-Conductor FOIL 300 24 2 PPVC PPVC 0.122 CSA CMP, CSA FT6, UL CMP
    M244838 Multi-Conductor FOIL 300 24 3 PPVC PPVC 0.129 CSA CMP, CSA FT6, UL CMP
    M244839 Multi-Conductor FOIL 300 24 4 PPVC PPVC 0.14 CSA CMP, CSA FT6, UL CMP
    M413226 Multi-Conductor FOIL 300 22 2 PVDF FEP 0.118 CSA CMP, CSA FT6, UL CMP
    M613226 Multi-Conductor FOIL 300 22 2 FEP FEP 0.118 CSA CMP, CSA FT6, UL CMP
    M64800 Multi-Conductor FOIL 300 22 2 FEP FEP 0.108 CSA CMP, CSA FT6, UL CMP
    M64801 Multi-Conductor FOIL 300 22 3 FEP FEP 0.115 CSA CMP, CSA FT6, UL CMP
    M64802 Multi-Conductor FOIL 300 22 4 FEP FEP 0.125 CSA CMP, CSA FT6, UL CMP
    M64803 Multi-Conductor FOIL 300 22 5 FEP FEP 0.138 CSA CMP, CSA FT6, UL CMP
    M64804 Multi-Conductor FOIL 300 22 6 FEP FEP 0.151 CSA CMP, CSA FT6, UL CMP
    M64805 Multi-Conductor FOIL 300 22 7 FEP FEP 0.151 CSA CMP, CSA FT6, UL CMP
