    首頁 > > ALPHA-Manhattan™ Plenum Cable天花板隔層电缆

    ALPHA-300 V (Awg 22, 20, 18) Individually Foil Shield, Multipair, (-20°C to +75°C) PVC, Plenum Rated 天花板隔層個別隔離對型訊號傳輸电缆
    看原圖
    		ALPHA-M44473

    商品編號: ALPHA-M44473

    ALPHA-300 V (Awg 22, 20, 18) Individually Foil Shield, Multipair, (-20°C to +75°C) PVC, Plenum Rated 天花板隔層個別隔離對型訊號傳輸电缆

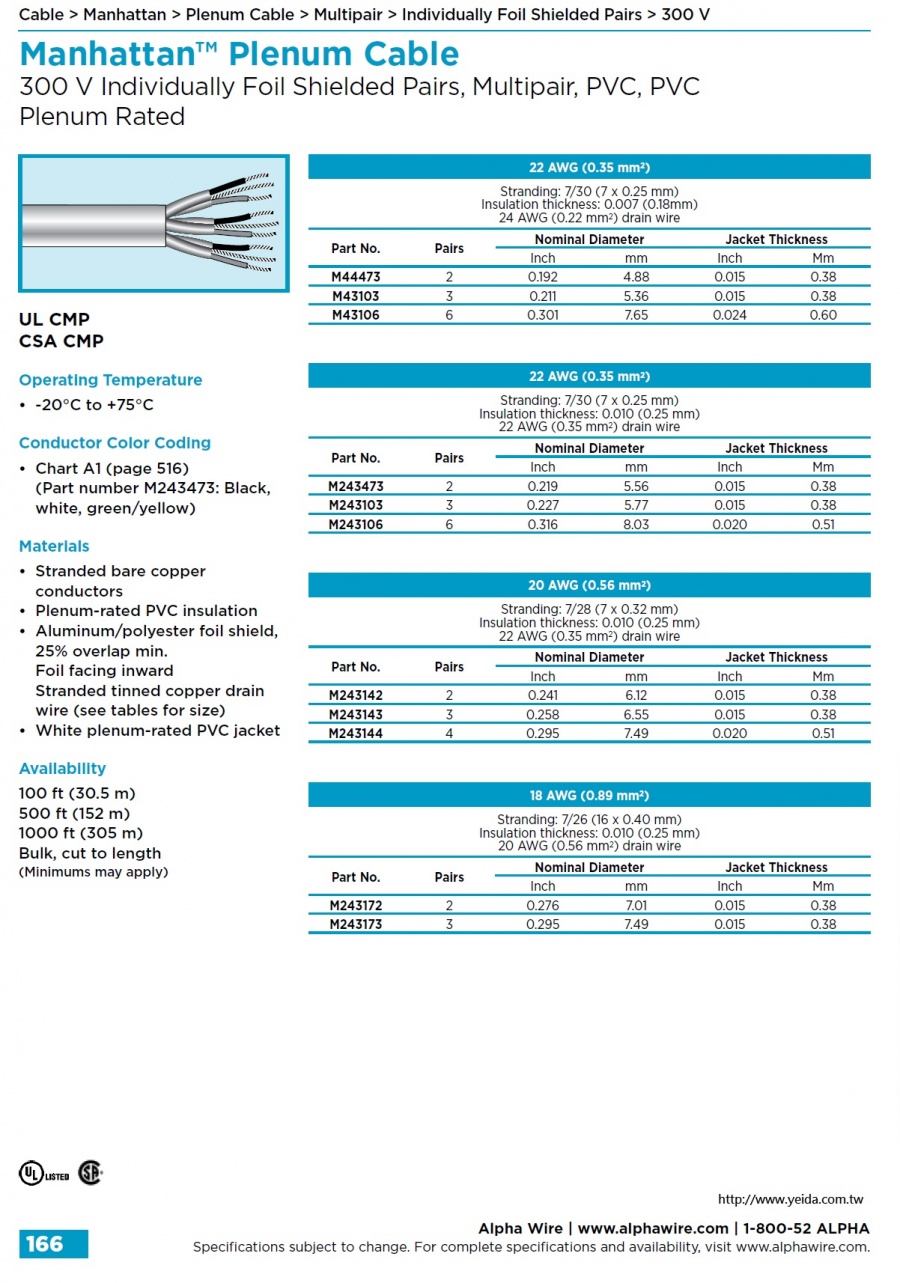

    Manhattan™ Plenum Cable
    300 V Individually Foil Shielded Pairs, Multipair, PVC, PVC
    Plenum Rated
    UL CMP
    CSA CMP


    Operating Temperature
    • -20°C to +75°C
    Conductor Color Coding
    • Chart A1 (page 516)
         (Part number M243473: Black, white, green/yellow)
    Materials
    • Stranded bare copper conductors
    • Plenum-rated PVC insulation
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
         Stranded tinned copper drain wire (see tables for size)
    • White plenum-rated PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)




    整套适用于控制、计算机互连、保安、警报器和建筑能源管理系统的电缆，它们拥有不同的防火级绝缘和护套。

    a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.

    Part # Type Shielding Voltage AWG # of Elements

    　

    		 Jacket Material  Insulation  Material

    　

    		 Jacket Diameter

    　
    M243103 Multi-Pair FOIL 300 22 3 PPVC PPVC 0.227 CSA CMP, UL CMP
    M243106 Multi-Pair FOIL 300 22 6 PPVC PPVC 0.316 CSA CMP, UL CMP
    M243142 Multi-Pair FOIL 300 20 2 PPVC PPVC 0.241 CSA CMP, UL CMP
    M243143 Multi-Pair FOIL 300 20 3 PPVC PPVC 0.258 CSA CMP, UL CMP
    M243144 Multi-Pair FOIL 300 20 4 PPVC PPVC 0.295 CSA CMP, UL CMP
    M243172 Multi-Pair FOIL 300 18 2 PPVC PPVC 0.276 CSA CMP, UL CMP
    M243173 Multi-Pair FOIL 300 18 3 PPVC PPVC 0.295 CSA CMP, UL CMP
    M243473 Multi-Pair FOIL 300 22 2 PPVC PPVC 0.219 CSA CMP, UL CMP
    M43103 Multi-Pair FOIL 300 22 3 PPVC FEP 0.211 CSA CMP, UL CMP
    M43106 Multi-Pair FOIL 300 22 6 PPVC FEP 0.301 CA Prop 65, CSA CMP, UL CMP
    M44473 Multi-Pair FOIL 300 22 2 PPVC FEP 0.192 CSA CMP, UL CMP
    M52893 Multi-Pair FOIL 300 24 1 PPVC FEP 0.155 CA Prop 65, CSA CMP, CSA FT6, UL CMP
    M52894 Multi-Pair FOIL 300 24 2 PPVC FEP 0.155 CA Prop 65, CSA CMP, CSA FT6, UL CMP
    M52895 Multi-Pair FOIL 300 24 3 PPVC FEP 0.164 CA Prop 65, CSA CMP, CSA FT6, UL CMP
    M52896 Multi-Pair FOIL 300 24 4 PPVC FEP 0.18 CA Prop 65, CSA CMP, CSA FT6, UL CMP
    M52897 Multi-Pair FOIL 300 24 5 PPVC FEP 0.197 CA Prop 65, CSA CMP, CSA FT6, UL CMP
    M52898 Multi-Pair FOIL 300 24 6 PPVC FEP 0.215 CA Prop 65, CSA CMP, CSA FT6, UL CMP
    M52900 Multi-Pair FOIL 300 24 9 PPVC FEP 0.252 CA Prop 65, CSA CMP, CSA FT6, UL CMP
