ALPHA-300 V (Awg 24) Overall Foil Shield, Multipair, (-80°C to +150°C) FEP-FEP, Plenum Rated 天花板隔層鋁箔隔離對型訊號傳輸鐵氟龍高溫电缆

ALPHA-M613190

商品編號: ALPHA-M613190

ALPHA-300 V (Awg 24) Overall Foil Shield, Multipair, (-80°C to +150°C) FEP-FEP, Plenum Rated 天花板隔層鋁箔隔離對型訊號傳輸鐵氟龍高溫电缆

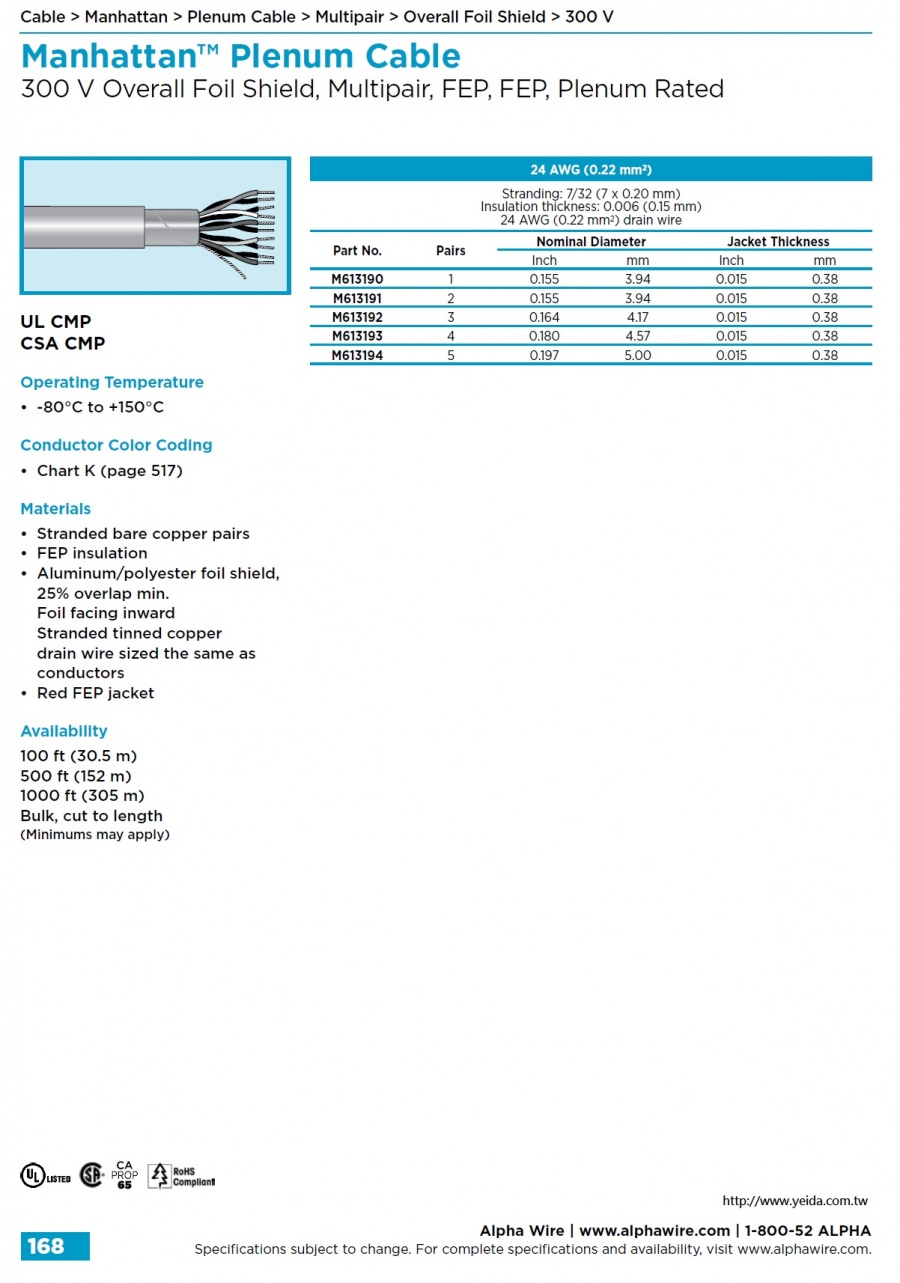

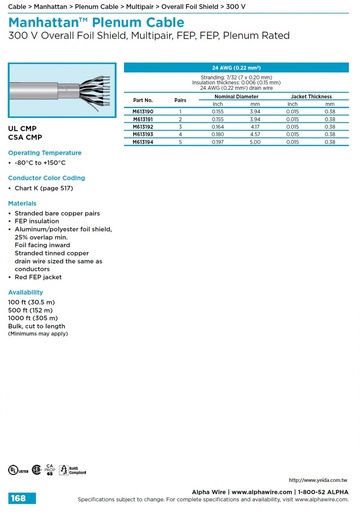

Manhattan™ Plenum Cable
300 V Overall Foil Shield, Multipair, FEP, FEP, Plenum Rated
UL CMP
CSA CMP

Operating Temperature
• -80°C to +150°C
Conductor Color Coding
• Chart K (page 517)
Materials
• Stranded bare copper pairs
• FEP insulation
• Aluminum/polyester foil shield, 25% overlap min. Foil facing inward
Stranded tinned copper drain wire sized the same as conductors
• Red FEP jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
(Minimums may apply)

整套适用于控制、计算机互连、保安、警报器和建筑能源管理系统的电缆，它们拥有不同的防火级绝缘和护套。

a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.

Type	Shielding	Voltage	AWG	# of Elements	Jacket Material	Insulation Material	Jacket Diameter
M613190	Multi-Pair	FOIL	300	24	1	FEP	FEP	0.155	CA Prop 65, CSA CMP, CSA FT6, UL CMP
M613191	Multi-Pair	FOIL	300	24	2	FEP	FEP	0.155	CA Prop 65, CSA CMP, CSA FT6, UL CMP
M613192	Multi-Pair	FOIL	300	24	3	FEP	FEP	0.164	CA Prop 65, CSA CMP, CSA FT6, UL CMP
M613193	Multi-Pair	FOIL	300	24	4	FEP	FEP	0.18	CA Prop 65, CSA CMP, CSA FT6, UL CMP
M613194	Multi-Pair	FOIL	300	24	5	FEP	FEP	0.197	CA Prop 65, CSA CMP, CSA FT6, UL CMP
