    首頁 > > ALPHA-Manhattan™ Plenum Cable天花板隔層电缆

    ALPHA-300 V (Awg 24, 22, 20, 18, 16) Foil Shield, Multiconductor, (-20°C to +150°C) FEP-FEP, Plenum Rated 天花板隔層鐵氟龍耐高溫鋁箔隔離电缆
    看原圖
    		ALPHA-M64837


    商品編號: ALPHA-M64837

    ALPHA-300 V (Awg 24, 22, 20, 18, 16) Foil Shield, Multiconductor, (-20°C to +150°C) FEP-FEP, Plenum Rated 天花板隔層鐵氟龍耐高溫鋁箔隔離电缆

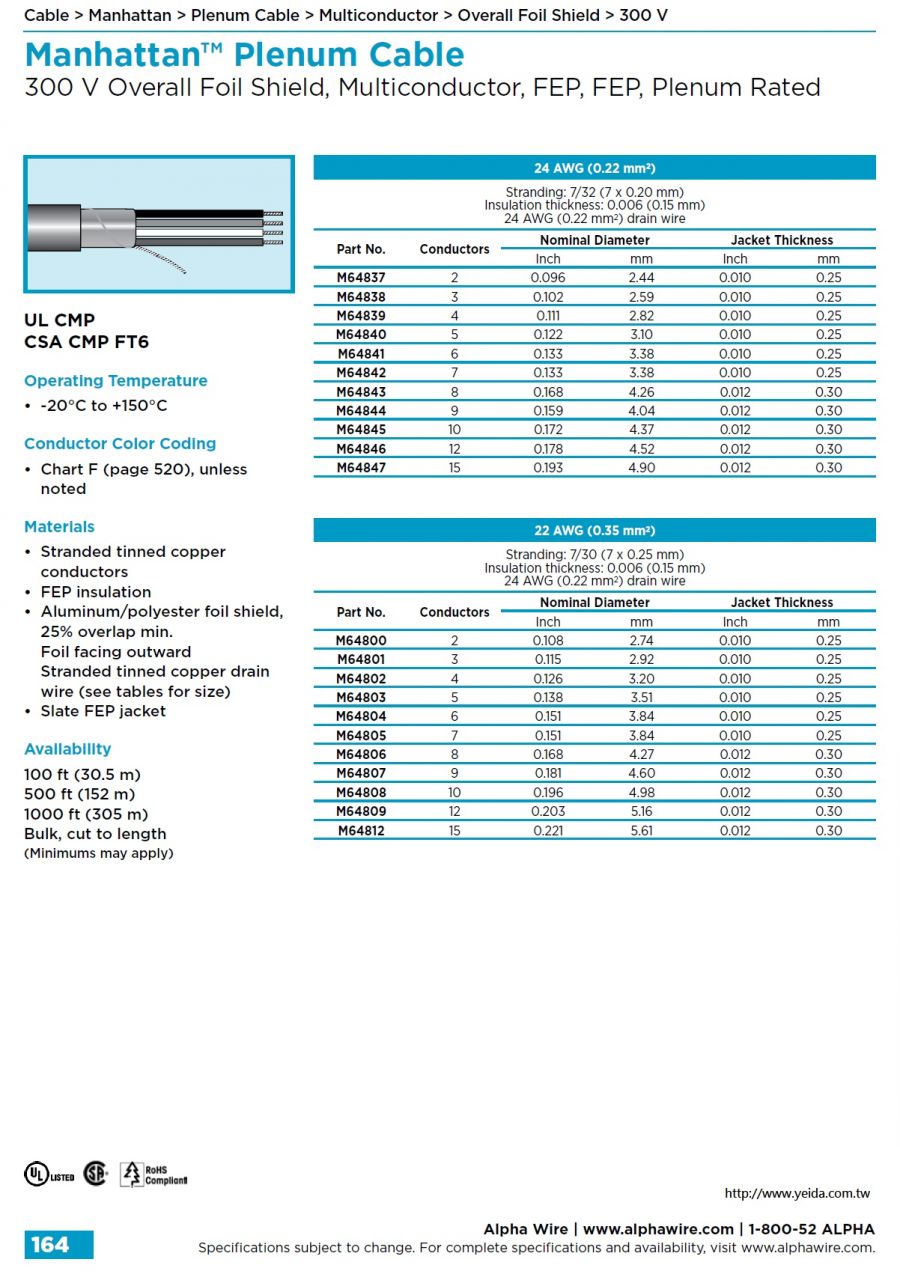

    Manhattan™ Plenum Cable
    300 V Overall Foil Shield, Multiconductor, FEP, FEP, Plenum Rated
    UL CMP
    CSA CMP FT6


    Operating Temperature
    • -20°C to +150°C
    Conductor Color Coding
    • Chart F (page 520), unless noted
    Materials
    • Stranded tinned copper conductors
    • FEP insulation
    • Aluminum/polyester foil shield, 25% overlap min. Foil facing outward
          Stranded tinned copper drain wire (see tables for size)
    • Slate FEP jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)


    整套适用于控制、计算机互连、保安、警报器和建筑能源管理系统的电缆，它们拥有不同的防火级绝缘和护套。

    a full range of cables for control, computer interconnections, security, alarms, and building energy management systems in a variety of plenum-rated insulations and jackets.
    Part # Type Shielding Voltage AWG # of Elements

    　

    		 Jacket Material  Insulation  Material

    　

    		 Jacket Diameter

    　
    M613226 Multi-Conductor FOIL 300 22 2 FEP FEP 0.118 CSA CMP, CSA FT6, UL CMP
    M613242 Multi-Conductor FOIL 300 18 2 FEP FEP 0.162 CSA CMP, CSA FT6, UL CMP
    M64800 Multi-Conductor FOIL 300 22 2 FEP FEP 0.108 CSA CMP, CSA FT6, UL CMP
    M64801 Multi-Conductor FOIL 300 22 3 FEP FEP 0.115 CSA CMP, CSA FT6, UL CMP
    M64802 Multi-Conductor FOIL 300 22 4 FEP FEP 0.125 CSA CMP, CSA FT6, UL CMP
    M64803 Multi-Conductor FOIL 300 22 5 FEP FEP 0.138 CSA CMP, CSA FT6, UL CMP
    M64804 Multi-Conductor FOIL 300 22 6 FEP FEP 0.151 CSA CMP, CSA FT6, UL CMP
    M64805 Multi-Conductor FOIL 300 22 7 FEP FEP 0.151 CSA CMP, CSA FT6, UL CMP
    M64806 Multi-Conductor FOIL 300 22 8 FEP FEP 0.168 CSA CMP, CSA FT6, UL CMP
    M64807 Multi-Conductor FOIL 300 22 9 FEP FEP 0.181 CSA CMP, CSA FT6, UL CMP
    M64808 Multi-Conductor FOIL 300 22 10 FEP FEP 0.196 CSA CMP, CSA FT6, UL CMP
    M64809 Multi-Conductor FOIL 300 22 12 FEP FEP 0.203 CSA CMP, CSA FT6, UL CMP
    M64812 Multi-Conductor FOIL 300 22 15 FEP FEP 0.221 CSA CMP, CSA FT6, UL CMP
    M64816 Multi-Conductor FOIL 300 20 2 FEP FEP 0.124 CSA CMP, CSA FT6, UL CMP
    M64817 Multi-Conductor FOIL 300 20 3 FEP FEP 0.132 CSA CMP, CSA FT6, UL CMP
    M64818 Multi-Conductor FOIL 300 20 4 FEP FEP 0.145 CSA CMP, CSA FT6, UL CMP
    M64820 Multi-Conductor FOIL 300 20 6 FEP FEP 0.175 CSA CMP, CSA FT6, UL CMP
    M64822 Multi-Conductor FOIL 300 20 8 FEP FEP 0.194 CSA CMP, CSA FT6, UL CMP
    M64824 Multi-Conductor FOIL 300 20 10 FEP FEP 0.228 CSA CMP, CSA FT6, UL CMP
    M64825 Multi-Conductor FOIL 300 18 2 FEP FEP 0.16 CSA CMP, CSA FT6, UL CMP
