    首頁 > > ALPHA-Manhattan™ Security and Data Cable安全監控資訊傳輸電線

    ALPHA- Manhattan™ Security and Data Cable (Awg 18, 20, 22, 24) 300 V Overall Foil Shield, Multipair, PVC, PVC 總鋁箔隔離安全監控儀表資訊傳輸控制电缆
    看原圖
    		ALPHA-M213191

    商品編號: ALPHA-M213191

    ALPHA- Manhattan™ Security and Data Cable (Awg 18, 20, 22, 24) 300 V Overall Foil Shield, Multipair, PVC, PVC 總鋁箔隔離安全監控儀表資訊傳輸控制电缆

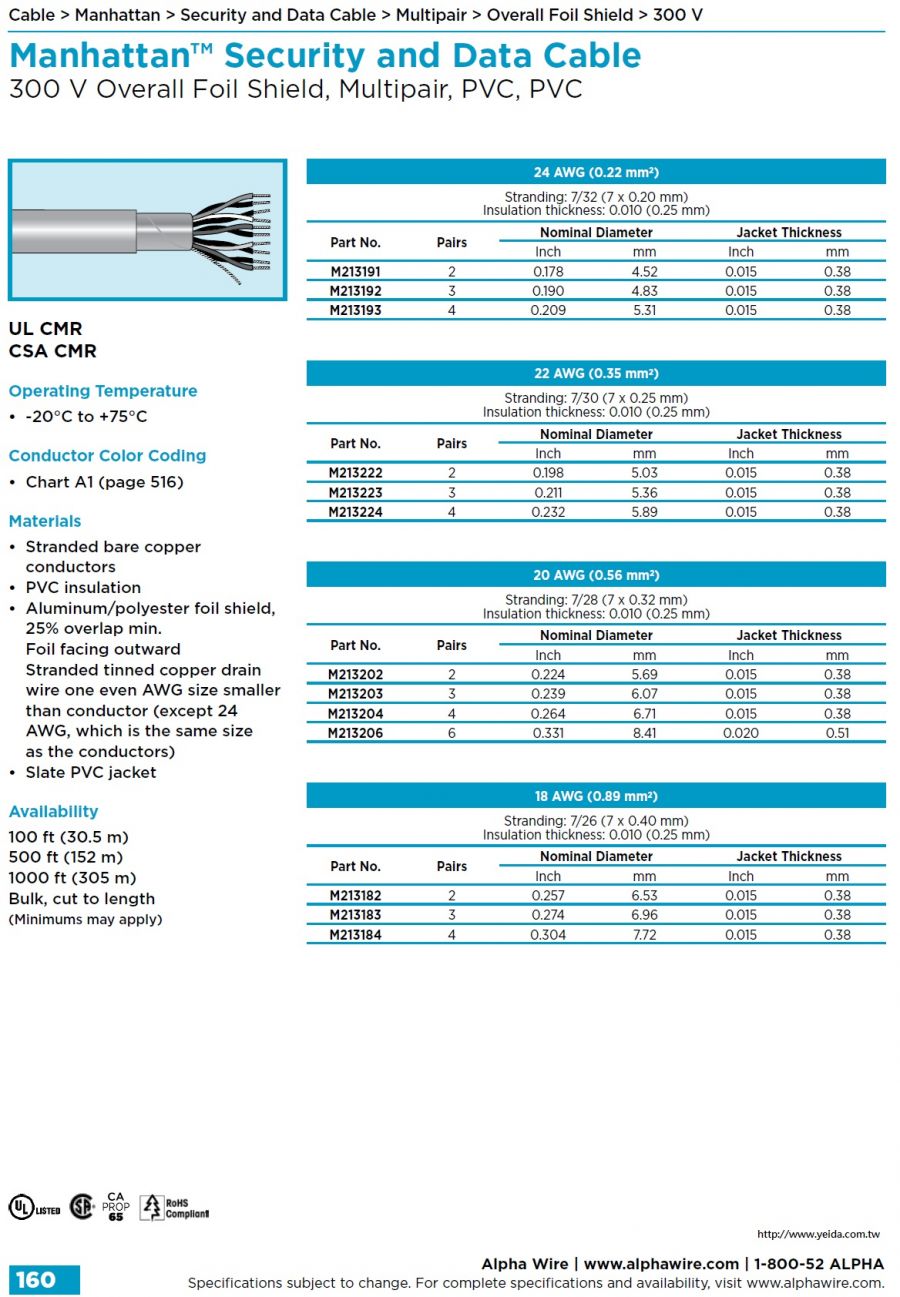

    Manhattan™ Security and Data Cable
    300 V Overall Foil Shield, Multipair, PVC, PVC
    UL CMR
    CSA CMR


    Operating Temperature
    • -20°C to +75°C
    Conductor Color Coding
    • Chart A1 (page 516)
    Materials
    • Stranded bare copper conductors
    • PVC insulation
    • Aluminum/polyester foil shield, 25% overlap min.
         Foil facing outward Stranded tinned copper drain
         wire one even AWG size smaller than conductor (except 24
         AWG, which is the same size as the conductors)
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)




    可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。

    Part # Cable Type　 Shielding Voltage AWG No Of Elements

    　

    		 Jacket Material　 Insulation Material Jacket Diameter　
    M213182 Pair FOIL 300 18 2 PVC PVC 0.257 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213183 Pair FOIL 300 18 3 PVC PVC 0.274 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213184 Pair FOIL 300 18 4 PVC PVC 0.304 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213191 Pair FOIL 300 24 2 PVC PVC 0.178 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213192 Pair FOIL 300 24 3 PVC PVC 0.19 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213193 Pair FOIL 300 24 4 PVC PVC 0.209 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213202 Pair FOIL 300 20 2 PVC PVC 0.224 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213203 Pair FOIL 300 20 3 PVC PVC 0.239 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213204 Pair FOIL 300 20 4 PVC PVC 0.264 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213206 Pair FOIL 300 20 6 PVC PVC 0.331 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213222 Pair FOIL 300 22 2 PVC PVC 0.198 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213223 Pair FOIL 300 22 3 PVC PVC 0.211 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213224 Pair FOIL 300 22 4 PVC PVC 0.232 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
