    ALPHA-Manhattan™ Security and Data Cable (Awg 16, 18, 20, 22) 300 V Unshielded, Multiconductor, PVC, PVC 安全監控儀表資訊傳輸控制电缆
    看原圖
    		ALPHA-M213302


    商品編號: ALPHA-M213302

    ALPHA-Manhattan™ Security and Data Cable (Awg 16, 18, 20, 22) 300 V Unshielded, Multiconductor, PVC, PVC 安全監控儀表資訊傳輸控制电缆

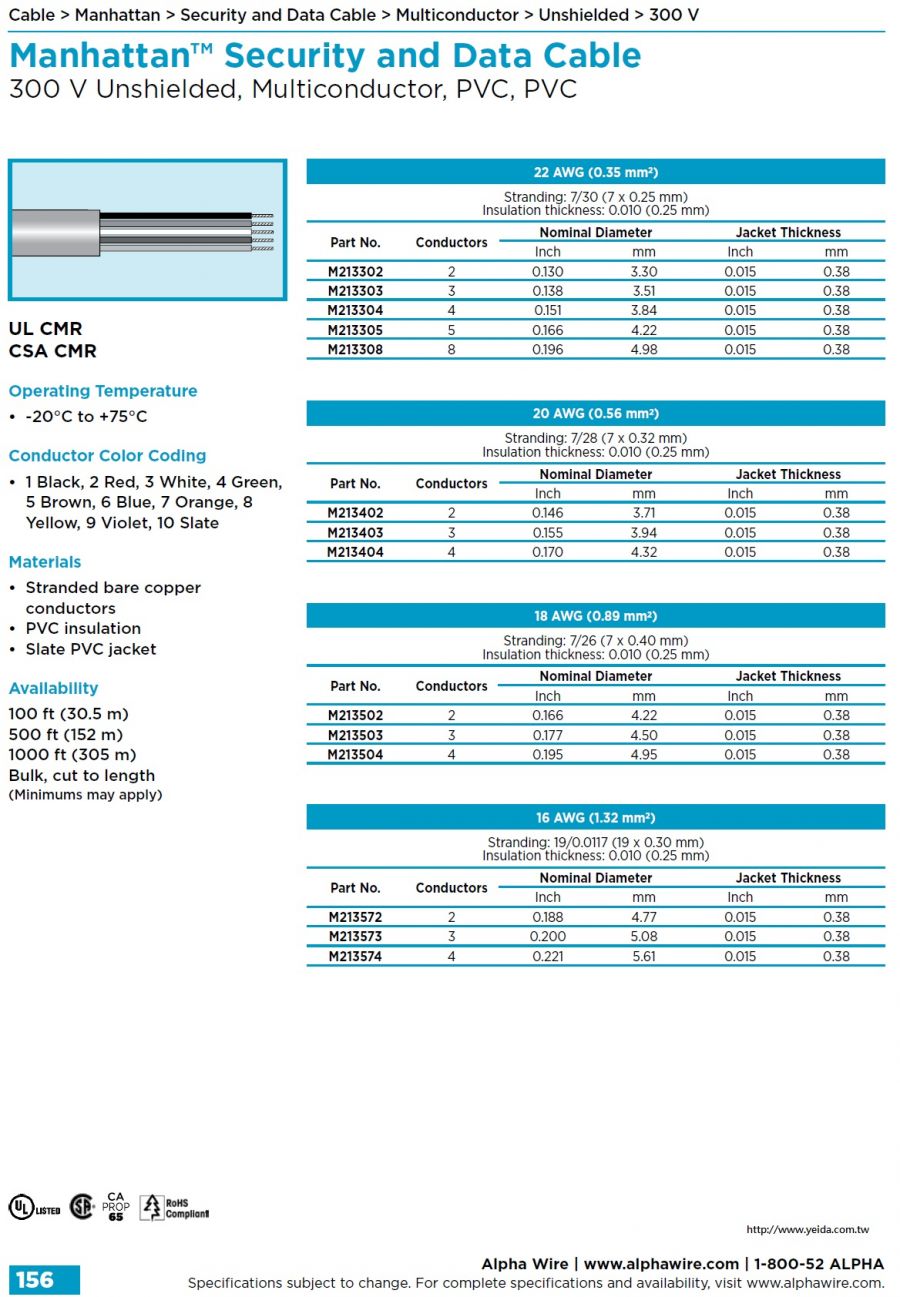

    Manhattan™ Security and Data Cable
    300 V Unshielded, Multiconductor, PVC, PVC
    UL CMR
    CSA CMR
    　

    Operating Temperature
    • -20°C to +75°C
    Conductor Color Coding
    • 1 Black, 2 Red, 3 White, 4 Green,
         5 Brown, 6 Blue, 7 Orange, 8
         Yellow, 9 Violet, 10 Slate
    Materials
    • Stranded bare copper conductors
    • PVC insulation
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)


    可靠、持久耐用的电缆是任何电气系统的核心，Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史，是深受信赖的可靠电缆。无论您需要的是一根电源线，还是在噪音环境中保持音视频信号完整性的电缆，您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室，我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。
    Part #

    　

    		 Type

    　

    		 Cable Shielding

    　

    		 Cable Voltage　 AWG No Of Elements Jacket Material Insulation Material CableJacket Diameter
    M213403 Conductor UNSHIELDED 300 20 3 PVC PVC 0.155 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M213404 Conductor UNSHIELDED 300 20 4 PVC PVC 0.17
    M213502 Conductor UNSHIELDED 300 18 2 PVC PVC 0.166
    M213503 Conductor UNSHIELDED 300 18 3 PVC PVC 0.177
    M213504 Conductor UNSHIELDED 300 18 4 PVC PVC 0.195
    M213572 Conductor UNSHIELDED 300 16 2 PVC PVC 0.188
    M213573 Conductor UNSHIELDED 300 16 3 PVC PVC 0.2
    M213574 Conductor UNSHIELDED 300 16 4 PVC PVC 0.221
    M213302 Conductor UNSHIELDED 300 22 2 PVC PVC 0.13
    M213303 Conductor UNSHIELDED 300 22 3 PVC PVC 0.138
    M213304 Conductor UNSHIELDED 300 22 4 PVC PVC 0.151
    M213305 Conductor UNSHIELDED 300 22 5 PVC PVC 0.166
    M213308 Conductor UNSHIELDED 300 22 8 PVC PVC 0.196
    M213402 Conductor UNSHIELDED 300 20 2 PVC PVC 0.146
