    ALPHA- Manhattan™ Security and Data Cable (Awg 18, 20, 22) 300 V Unshielded, Multipair, PVC, PVC 安全監控儀表資訊傳輸控制电缆
    看原圖

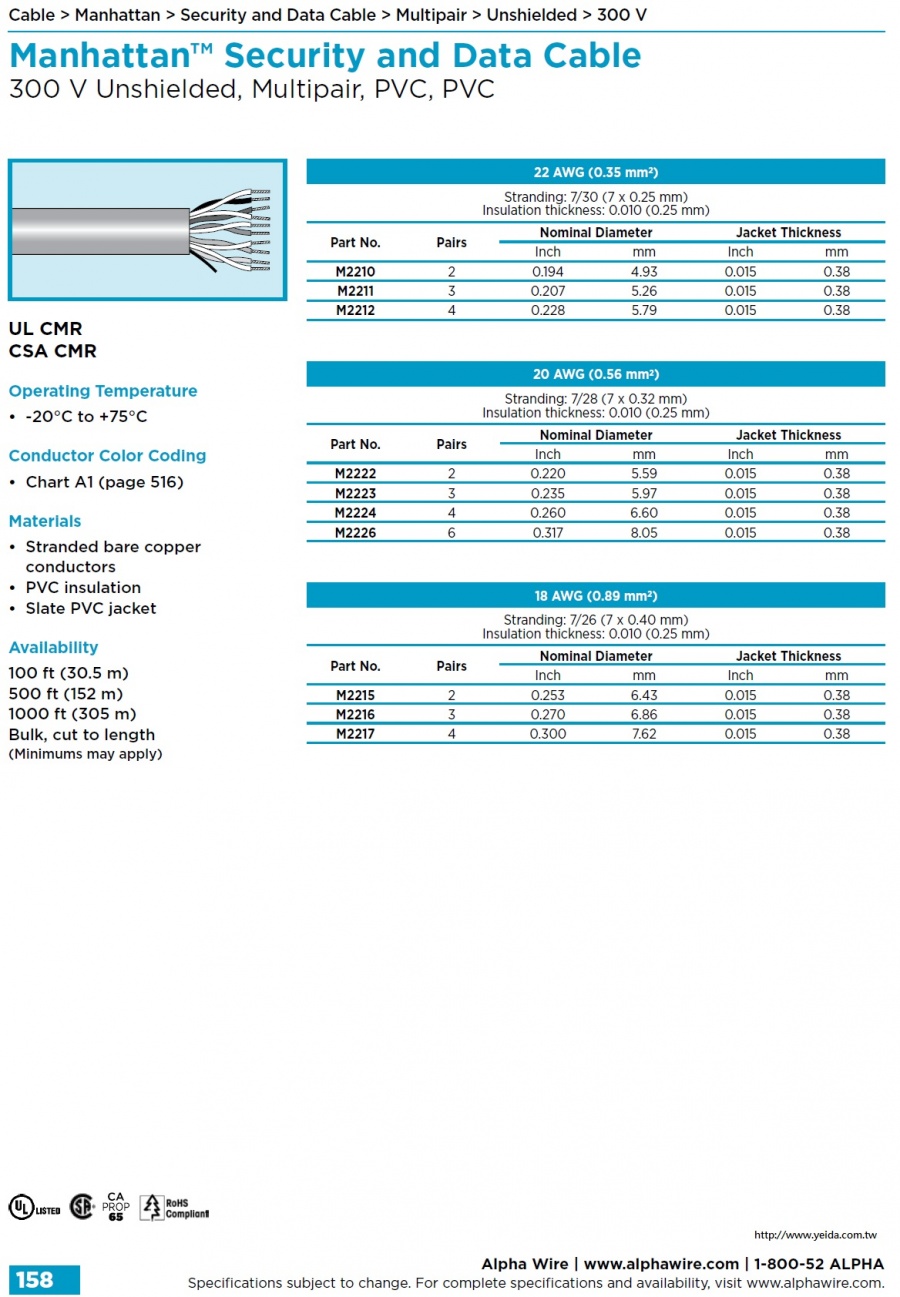

    ALPHA-M2210

    商品編號: ALPHA-M2210

    ALPHA- Manhattan™ Security and Data Cable (Awg 18, 20, 22) 300 V Unshielded, Multipair, PVC, PVC 安全監控儀表資訊傳輸控制电缆



    Manhattan™ Security and Data Cable
    300 V Unshielded, Multipair, PVC, PVC
    UL CMR
    CSA CMR


    Operating Temperature
    • -20°C to +75°C
    Conductor Color Coding
    • Chart A1 (page 516)
    Materials
    • Stranded bare copper conductors
    • PVC insulation
    • Slate PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)





    可靠、持久耐用的电缆是任何电气系统的核心,Alpha Wire 的 Manhattan™ 品牌拥有 60 多年的历史,是深受信赖的可靠电缆。无论您需要的是一根电源线,还是在噪音环境中保持音视频信号完整性的电缆,您都能找到恰当的产品来确保构建适合您应用的最佳解决方案。

    From intercom systems to broadcast studios, our range of audio/video cable allows you to tackle the toughest needs easily and reliably.

    从对讲机系统到广播播音室,我们一系列的音频/视频电缆可以让您轻松、可靠地解决最苛刻的需求。


    Part # Cable Type  Shielding Voltage AWG No Of Elements



    Jacket Material  Insulation Material Jacket Diameter
    M2210 Pair UNSHIELDED 300 22 2 PVC PVC 0.194 CA Prop 65, CSA CMR, REACH Regulation (EC 1907/2006), UL CMR
    M2211 Pair UNSHIELDED 300 22 3 PVC PVC 0.207
    M2212 Pair UNSHIELDED 300 22 4 PVC PVC 0.228
    M2215 Pair UNSHIELDED 300 18 2 PVC PVC 0.253
    M2216 Pair UNSHIELDED 300 18 3 PVC PVC 0.27
    M2217 Pair UNSHIELDED 300 18 4 PVC PVC 0.3
    M2222 Pair UNSHIELDED 300 20 2 PVC PVC 0.22
    M2223 Pair UNSHIELDED 300 20 3 PVC PVC 0.235
      M2224 Pair UNSHIELDED 300 20 4 PVC PVC 0.26
    M2226 Pair UNSHIELDED 300 20 6 PVC PVC 0.317
