    首頁 > > ALPHA-Thermocouple Wire 熱電偶補償導線

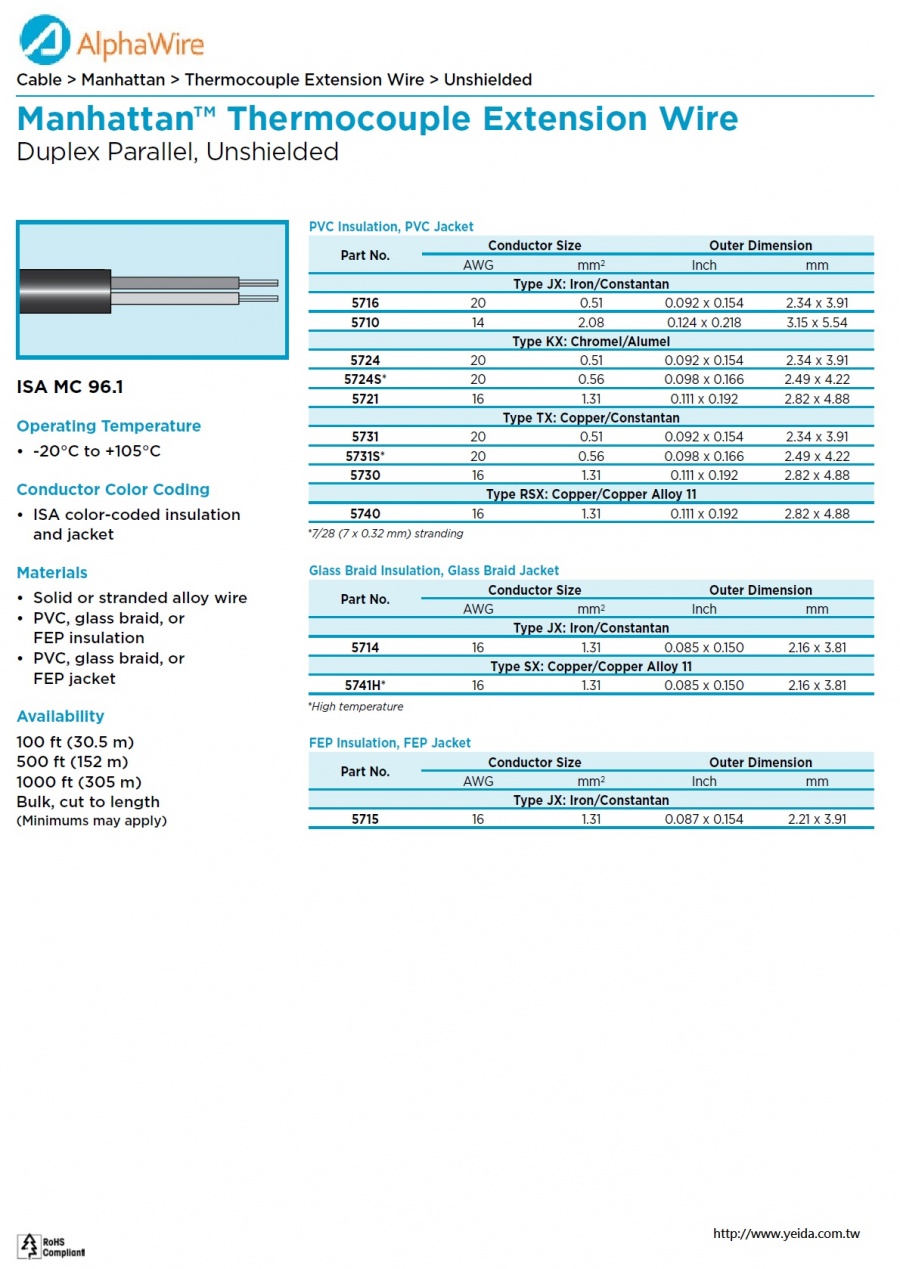

    ALPHA-Thermocouple Extension Wire Unshielded Type(JX, KX, TX,RSX) Duplex Parallel: PVC-PVCJacket 雙芯平行耐熱延長線級熱電偶補償導線
    看原圖
    		代碼 ALPHA-5724

    商品編號: ALPHA-5724

    ALPHA-Thermocouple Extension Wire Unshielded Type(JX, KX, TX,RSX) Duplex Parallel: PVC-PVCJacket 雙芯平行耐熱延長線級熱電偶補償導線


    Manhattan™ Thermocouple Grade Wire
    ISA MC 96.1
    　

    Operating Temperature
    • -20°C to +510°C
    Conductor Color Coding
    • ISA color-coded insulation and jacket
    Materials
    • Solid or stranded alloy wire
    • Braided fiberglass or FEP insulation
    • Braided fiberglass or FEP jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)




    You can find the perfect thermocouple cable based on conductor combinations JX, KX, EX, and SX, as well as insulations suited for applications up to 649°C. Count on Manhattan thermocouple cables for quality and accurate temperature measurement.

    您可以根据导线组合 JX、KX、EX 和 SX 找到理想的热电偶电缆以及高达 649°C 应用的绝缘。若要获得精准品质的温度测量，请信赖 Manhattan 热电偶电缆。



    Part # Type　 Shielding 　 Thermocouple Type AWG Stranding # of Cords

    　

    		 Insulation Material

    　

    		 Jacket Material 　
    5710 Duplex UNSHIELDED 　 JX 14 Solid 2 PVC PVC 　 　
    5714 Duplex UNSHIELDED 　 JX 16 Solid 2 Glass Braid Glass Braid 　 　
    5715 Duplex UNSHIELDED 　 JX 16 Solid 2 FEP FEP 　 　
    5716 Duplex UNSHIELDED 　 JX 20 Solid 2 PVC PVC 　 　
    5721 Duplex UNSHIELDED 　 KX 16 Solid 2 PVC PVC 　 　
    5724 Duplex UNSHIELDED 　 KX 20 Solid 2 PVC PVC 　 　
    5724S Duplex UNSHIELDED 　 KX 20 7/28 2 PVC PVC 　 　
    5730 Duplex UNSHIELDED 　 TX 16 Solid 2 PVC PVC 　 　
    5731 Duplex UNSHIELDED 　 TX 20 Solid 2 PVC PVC 　 　
    5731S Duplex UNSHIELDED 　 TX 20 7/28 2 PVC PVC 　 　
    5740 Duplex UNSHIELDED 　 RSX 16 Solid 2 PVC PVC 　 　
    5741H Duplex UNSHIELDED 　 SX 16 Solid 2 Glass Braid Glass Braid 　 　
    5762S Duplex UNSHIELDED 　 JX 20 7/28 2 Glass Braid Glass Braid 　 ANSI MC 96-1
    5763H Duplex UNSHIELDED 　 J 20 Solid 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230, CA Prop 65
    5766 Duplex UNSHIELDED 　 J 24 Solid 2 Glass Braid Glass Braid 　 　
    5767H Duplex UNSHIELDED 　 J 24 Solid 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230
    5769/1 Duplex UNSHIELDED 　 J 30 Solid 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230
    5772S Duplex UNSHIELDED 　 K 20 7/28 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230
    5773H Duplex UNSHIELDED 　 K 20 Solid 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230
    5776 Duplex UNSHIELDED 　 K 24 Solid 2 Glass Wrap Glass Braid
