    首頁 > > ALPHA-Thermocouple Wire 熱電偶補償導線

    ALPHA-Thermocouple Extension Wire Foil Shielded Individual and Overall, Twisted Pairs, Type(JX, KX, TX,EX) UL PLTC/ITC, 300 V, 105°C PVC- PVC Jacket 對型個別鋁箔隔離耐熱延長線級熱電偶補償導線
    看原圖
    		ALPHA-M9020011


    商品編號: ALPHA-M9020011

    ALPHA-Thermocouple Extension Wire Foil Shielded Individual and Overall, Twisted Pairs, Type(JX, KX, TX,EX) UL PLTC/ITC, 300 V, 105°C PVC- PVC Jacket 對型個別鋁箔隔離耐熱延長線級熱電偶補償導線

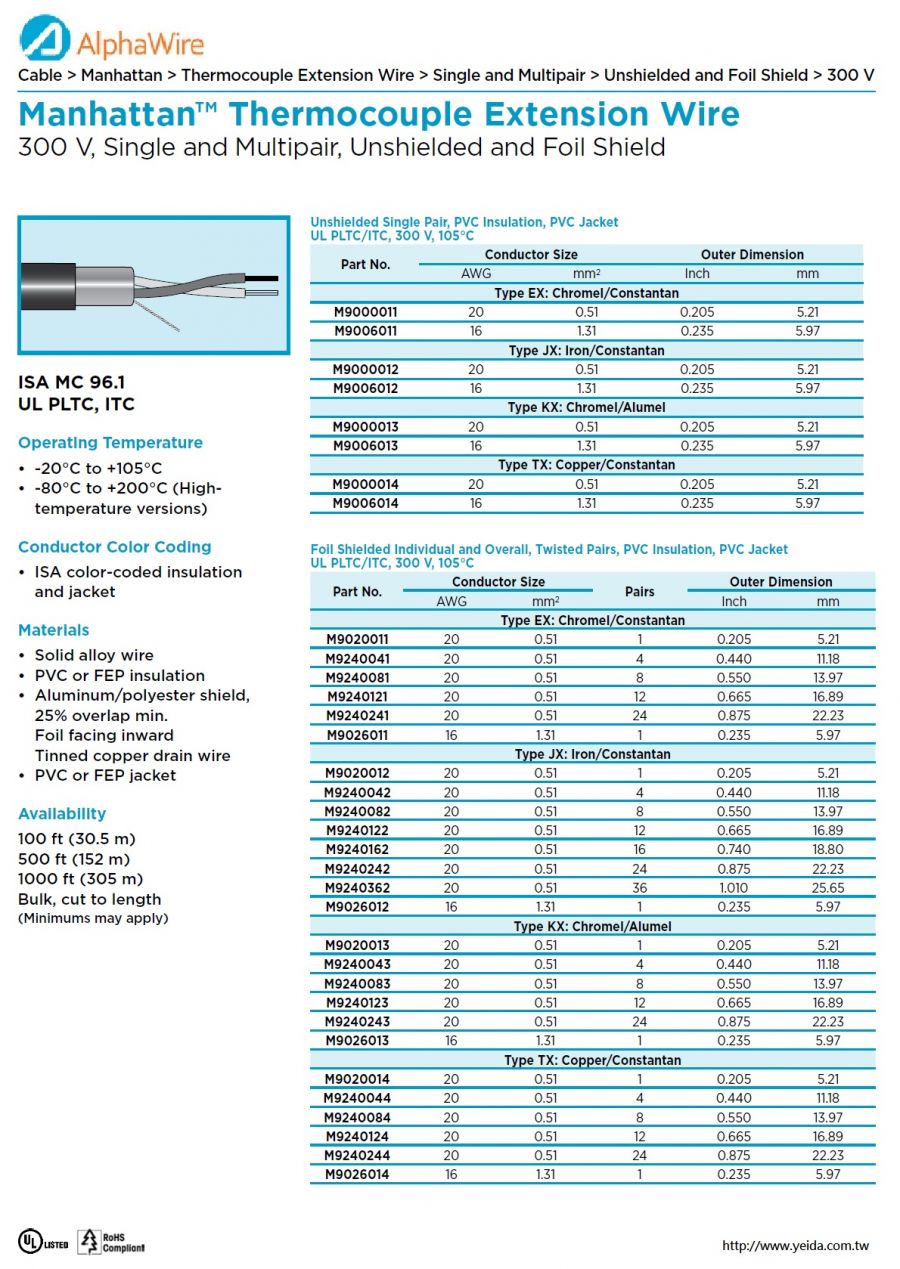

    Manhattan™ Thermocouple Extension Wire
    300 V, Single and Multipair, Unshielded and Foil Shield
    ISA MC 96.1
    UL PLTC, ITC


    Operating Temperature
    • -20°C to +105°C
    • -80°C to +200°C (Hightemperature versions)
    Conductor Color Coding
    • ISA color-coded insulation and jacket
    Materials
    • Solid alloy wire
    • PVC or FEP insulation
    • Aluminum/polyester shield, 25% overlap min.
         Foil facing inward Tinned copper drain wire
    • PVC or FEP jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)




    You can find the perfect thermocouple cable based on conductor combinations JX, KX, EX, and SX, as well as insulations suited for applications up to 649°C. Count on Manhattan thermocouple cables for quality and accurate temperature measurement.

    您可以根据导线组合 JX、KX、EX 和 SX 找到理想的热电偶电缆以及高达 649°C 应用的绝缘。若要获得精准品质的温度测量，请信赖 Manhattan 热电偶电缆


    Part # Type Shielding Voltage  Type AWG Stranding # of Elements　 Insulation Material Jacket Material

    　

    		 Jacket Diameter
    M9020011 Multi-Pair FOIL 300 EX 20 Solid 2 PVC PVC 0.235 ANSI MC 96-1-1982, IEEE 383, NEC Art. 501 Class 1 Div. 2, NEC Art. 725, NEC Art. 727, NEC PTLC/ITC, UL 1581, UL 2250
    M9020012 Multi-Pair FOIL 300 JX 20 Solid 2 PVC PVC 0.205
    M9020013 Multi-Pair FOIL 300 KX 20 Solid 2 PVC PVC 0.205
    M9020014 Multi-Pair FOIL 300 TX 20 Solid 2 PVC PVC 0.205
    M9026011 Multi-Pair FOIL 300 EX 16 Solid 2 PVC PVC 0.235
    M9026012 Multi-Pair FOIL 300 JX 16 Solid 2 PVC PVC 0.235
    M9026013 Multi-Pair FOIL 300 KX 16 Solid 2 PVC PVC 0.235
    M9026014 Multi-Pair FOIL 300 TX 16 Solid 2 PVC PVC 0.235
    M9240041 Multi-Pair FOIL 300 EX 20 Solid 4 PVC PVC 0.44
    M9240042 Multi-Pair FOIL 300 JX 20 Solid 4 PVC PVC 0.44
    M9240043 Multi-Pair FOIL 300 KX 20 Solid 4 PVC PVC 0.44
    M9240044 Multi-Pair FOIL 300 TX 20 Solid 4 PVC PVC 0.44
    M9240081 Multi-Pair FOIL 300 EX 20 Solid 8 PVC PVC 0.55
    M9240082 Multi-Pair FOIL 300 JX 20 Solid 8 PVC PVC 0.55
    M9240083 Multi-Pair FOIL 300 KX 20 Solid 8 PVC PVC 0.55
    M9240084 Multi-Pair FOIL 300 TX 20 Solid 8 PVC PVC 0.55
    M9240121 Multi-Pair FOIL 300 EX 20 Solid 12 PVC PVC 0.665
    M9240122 Multi-Pair FOIL 300 JX 20 Solid 12 PVC PVC 0.665
    M9240123 Multi-Pair FOIL 300 KX 20 Solid 12 PVC PVC 0.665
    M9240124 Multi-Pair FOIL 300 TX 20 Solid 12 PVC PVC 0.665
    M9240162 Multi-Pair FOIL 300 JX 20 Solid 16 PVC PVC 0.74
    M9240241 Multi-Pair FOIL 300 EX 20 Solid 24 PVC PVC 0.875
    M9240242 Multi-Pair FOIL 300 JX 20 Solid 24 PVC PVC 0.875
    M9240243 Multi-Pair FOIL 300 KX 20 Solid 24 PVC PVC 0.875
    M9240244 Multi-Pair FOIL 300 TX 20 Solid 24 PVC PVC 0.875
    M9240362 Multi-Pair FOIL 300 JX 20 Solid 36 PVC PVC 1.01
