    首頁 > > ALPHA-Thermocouple Wire 熱電偶補償導線

    ALPHA-Manhattan™ Thermocouple Grade Type(J, K, T) Duplex Parallel: FEP- FEP Jacket 平行雙芯鐵氟龍素線級熱電偶補償導線
    看原圖
    		ALPHA-M9160012


    商品編號: ALPHA-M9160012

    ALPHA-Manhattan™ Thermocouple Grade Type(J, K, T) Duplex Parallel: FEP- FEP Jacket 平行雙芯鐵氟龍素線級熱電偶補償導線

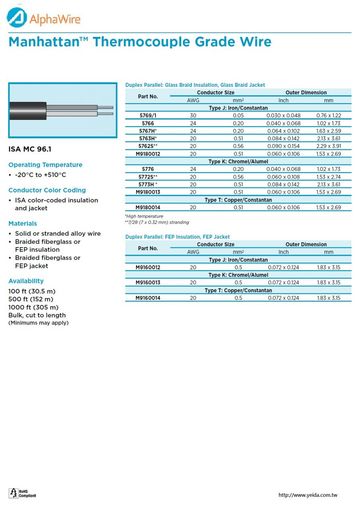

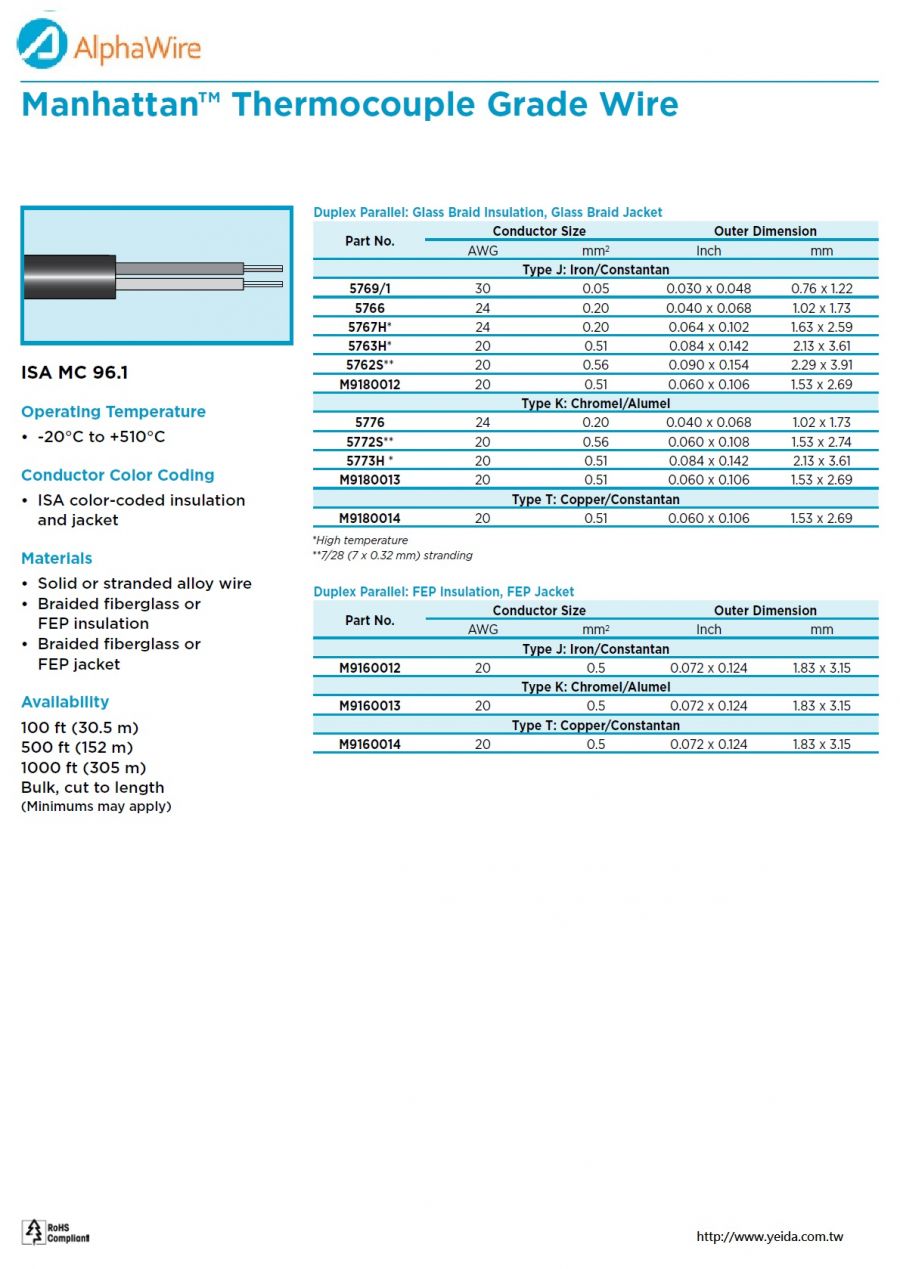

    Manhattan™ Thermocouple Grade Wire
    ISA MC 96.1
    　

    Operating Temperature
    • -20°C to +510°C
    Conductor Color Coding
    • ISA color-coded insulation and jacket
    Materials
    • Solid or stranded alloy wire
    • Braided fiberglass or FEP insulation
    • Braided fiberglass or FEP jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    (Minimums may apply)

    　 Part # Type　 Shielding 　 Thermocouple Type AWG Stranding # of Cords

    　

    		 Insulation Material

    　

    		 Jacket Material

    　

    		 Jacket Diameter
    5714 Duplex UNSHIELDED 　 JX 16 Solid 2 Glass Braid Glass Braid 　 　
    5741H Duplex UNSHIELDED 　 SX 16 Solid 2 Glass Braid Glass Braid 　 　
    5762S Duplex UNSHIELDED 　 JX 20 7/28 2 Glass Braid Glass Braid 　 ANSI MC 96-1
    5763H Duplex UNSHIELDED 　 J 20 Solid 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230, CA Prop 65
    5766 Duplex UNSHIELDED 　 J 24 Solid 2 Glass Braid Glass Braid 　 　
    5767H Duplex UNSHIELDED 　 J 24 Solid 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230
    5769/1 Duplex UNSHIELDED 　 J 30 Solid 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230
    5772S Duplex UNSHIELDED 　 K 20 7/28 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230
    5773H Duplex UNSHIELDED 　 K 20 Solid 2 Glass Braid Glass Braid 　 ANSI MC 96-1, ASTM E 230
    M9180012 Duplex UNSHIELDED 　 J 20 Solid 2 Glass Braid Glass Braid .164 x .109 ANSI MC 96-1-195
    M9180013 Duplex UNSHIELDED 　 K 20 Solid 2 Glass Braid Glass Braid .164 x .109 ANSI MC 96-1-195
    M9180014 Duplex UNSHIELDED 　 T 20 Solid 2 Glass Braid Glass Braid .164 x .109 ANSI MC 96-1-195
    5715 Duplex UNSHIELDED 　 JX 16 Solid 2 FEP FEP 　 　
    M9160012 Duplex UNSHIELDED 　 J 20 Solid 2 FEP FEP .072 x .124 ANSI MC 96-1-1975
    M9160013 Duplex UNSHIELDED 　 K 20 Solid 2 FEP FEP .072 x .124 ANSI MC 96-1-1975
    M9160014 Duplex UNSHIELDED 　 T 20 Solid 2 FEP FEP .072 x .124 ANSI MC 96-1-1975
