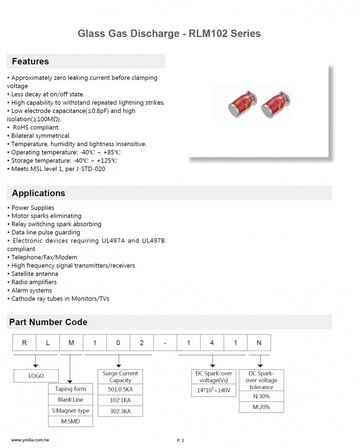

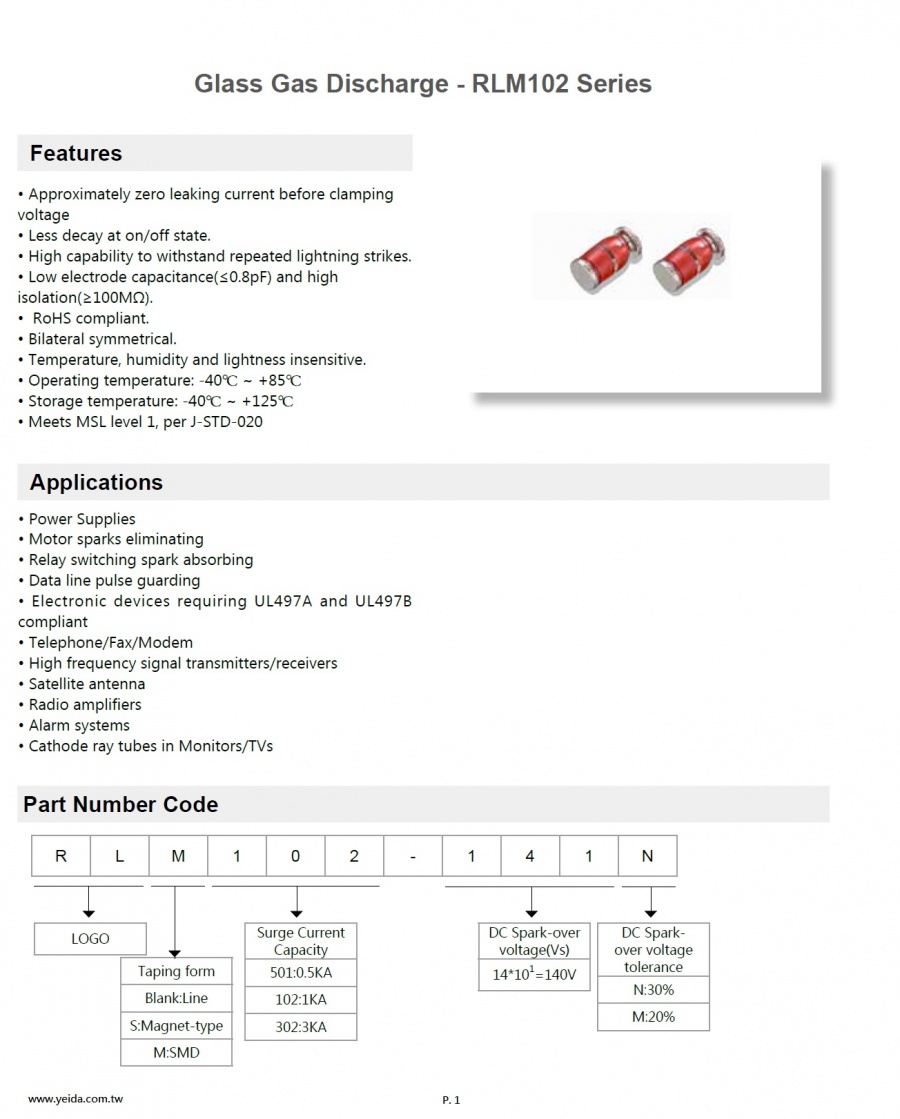

Glass Gas Discharge - RLM102 Series 玻璃放電管

• Low electrode capacitance(≤0.8pF) and high
isolation(≥100MΩ).
• RoHS compliant.
• Bilateral symmetrical.
• Temperature, humidity and lightness insensitive.
• Operating temperature: -40℃ ~ +85℃
• Storage temperature: -40℃ ~ +125℃
• Meets MSL level 1, per J-STD-020

•接近於零洩漏電流箝位前
電壓
•減少衰減的開/關狀態。
•高能力承受反复雷擊。
•低極間電容（≤0.8pF）和高
隔離（大於100MΩ）。
•符合RoHS標準。
•雙側對稱。
•溫度，濕度和亮度不敏感。
•工作溫度：-40℃〜+85℃
•儲存溫度：-40℃〜+125℃
•符合MSL1級，每J-STD-020

Features
Applications
• Power Supplies
• Motor sparks eliminating
• Relay switching spark absorbing

• Data line pulse guarding
• Electronic devices requiring UL497A and UL497B
compliant
• Telephone/Fax/Modem
• High frequency signal transmitters/receivers
• Satellite antenna
• Radio amplifiers
• Alarm systems
• Cathode ray tubes in Monitors/TVs

Test Observance Lab
Troubled with surge requirements.
*Products being developed can’t meet UL standards.
*Need to protect equipment from indirect lightning surges in the field.
At the Mitsubishi Materials ceramic factory, customers can come and observe
testhing of their product with the latest impulse voltage and current
generators that can duplicate the test requirements of the various worldwide
standards agencies. From these tests we can recommend the best solution to
help you pass requirements.
