    首頁 > > YRUILON-Glass Gas Discharge Tubes 玻璃放電管

    TVS/ESD Arrays - RLSD92QxxxV Series TVS/ESD 陣列
    看原圖
    		YRUILON-RLSD92Q051V

    商品編號: YRUILON-RLSD92Q051V

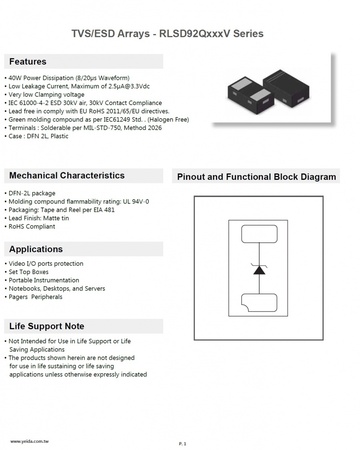

    TVS/ESD Arrays - RLSD92QxxxV Series TVS/ESD 陣列



    TVS/ESD Arrays - RLSD92QxxxV Series TVS/ESD 陣列

    Features

    • 40W Power Dissipation (8/20μs Waveform)
    • Low Leakage Current, Maximum of 2.5μA@3.3Vdc
    • Very low Clamping voltage
    • IEC 61000-4-2 ESD 30kV air, 30kV Contact Compliance
    • Lead free in comply with EU RoHS 2011/65/EU directives.
    • Green molding compound as per IEC61249 Std. . (Halogen Free)
    • Terminals : Solderable per MIL-STD-750, Method 2026
    • Case : DFN 2L, Plastic

    Mechanical Characteristics
    • DFN-2L package
    • Molding compound flammability rating: UL 94V-0
    • Packaging: Tape and Reel per EIA 481
    • Lead Finish: Matte tin
    • RoHS Compliant


    Applications
    • Video I/O ports protection
    • Set Top Boxes
    • Portable Instrumentation
    • Notebooks, Desktops, and Servers
    • Pagers Peripherals

    Life Support Note
    • Not Intended for Use in Life Support or Life
    Saving Applications
    • The products shown herein are not designed
    for use in life sustaining or life saving
    applications unless otherwise expressly indicated

    Warehouse Storage Conditions of Products

    Storage Conditions:
    1. Storage Temperature: -10°C~+40°C
    2. Relative Humidity:≤75%RH
    3. Keep away from corrosive atmosphere and sunlight.
    4. Period of Storage: 1 year

    型號/PDF Ppk(W) Rrwm(V) Vc(V) ESD Contact(kV) ESD Air(kV) 8x20μs(A) Cj(pF) IR(μA) Package
    RLSD92Q051V 40 5 9.8 15KV 8KV 4 1 35 DFN-2L
    RLSD92Q051VT 200 5 11/14 15KV 8KV 5/15 1 160 DFN-2L
    RLSD92Q031C 40 3.3 10 15KV 8KV 6 2.5 25 DFN-2L
    RLSD92Q051C 40 5 10 15KV 8KV 4 1 15 DFN-2L
    RLSD92Q051CT 200 3.3 11/14 15KV 8KV 5/15 1 70 DFN-2L
    RLSD92A031V 40 3.3 10 15KV 8KV 6 2.5 50 SOD-923
    RLSD92A051V 40 5 12 15KV 8KV 5 1 35 SOD-923
    RLSD92A071V 40 7 15 15KV 8KV 4 1 30 SOD-923
    RLSD92A121V 40 12 23 15KV 8KV 3 1 18 SOD-923
    RLSD92A151V 40 15 30 15KV 8KV 2 1 15 SOD-923
    RLSD92A031C 100 3.3 12.5 15KV 8KV 1 2.5 30 SOD-923
    RLSD92A051C 100 5 9.8 15KV 8KV 1 1 15 SOD-923
    RLSD72A031V 100 3.3 7.5 15KV 8KV 10 125 180 SOD-723
    RLSD72A051V 100 5 9.8 15KV 8KV 8.5 10 110 SOD-723
    RLSD72A081V 100 8 13.4 15KV 8KV 7.5 10 70 SOD-723
    RLSD72A121V 100 12 20 15KV 8KV 6.7 1 46 SOD-723
    RLSD72A151V 100 15 24 15KV 8KV 6 1 35 SOD-723
    RLSD72A241V 100 24 43 15KV 8KV 4.5 1 25 SOD-723
    RLSD72A361V 100 36 52 15KV 8KV 3 1 18 SOD-723
    RLSD72A051C 100 5 12/15 15KV 8KV 1/4 0.5 30 SOD-723
