Switching spark gap - 2RK-5 Series 過壓保護元件 - HID開關放電管

YRUILON-2RK-5

商品編號: YRUILON-2RK-5

Switching spark gap - 2RK-5 Series 過壓保護元件 - HID開關放電管

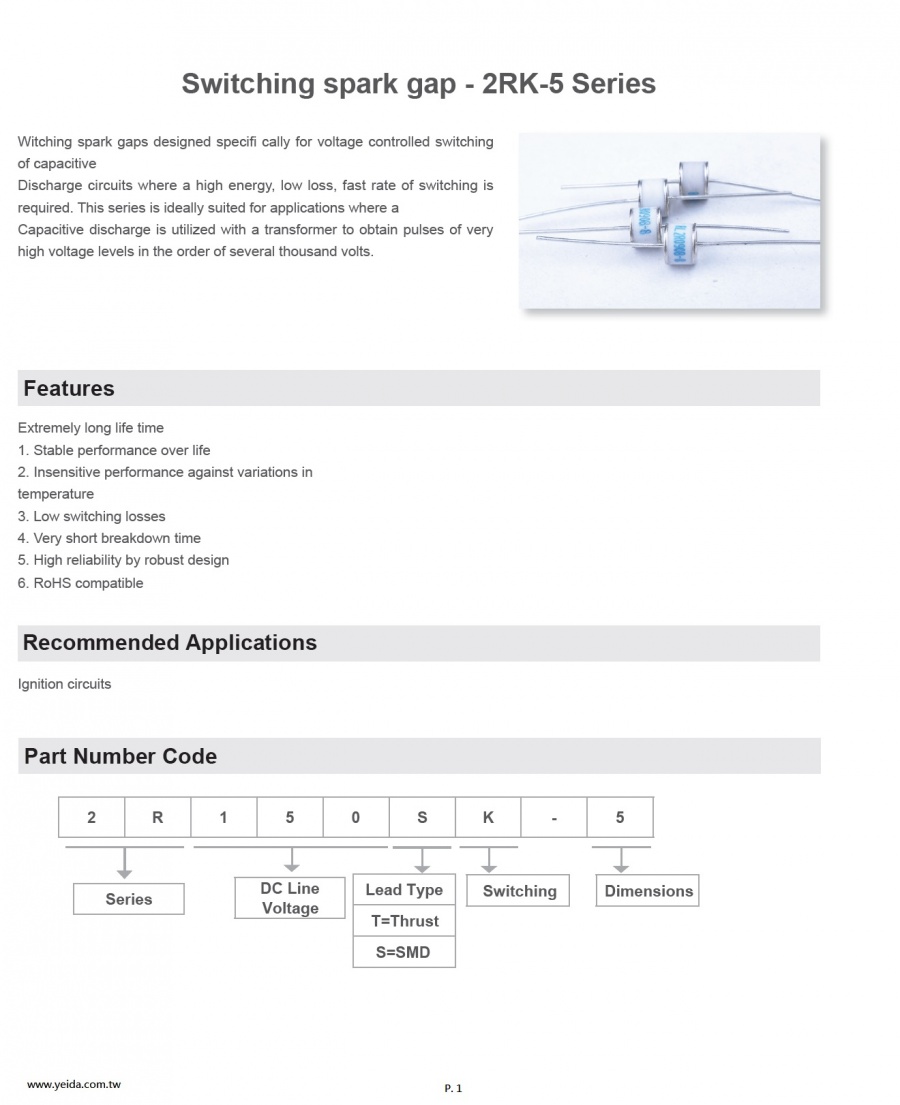

Switching spark gap - 2RK-5 Series HID開關放電管

Witching spark gaps designed specifi cally for voltage controlled switching
of capacitive
Discharge circuits where a high energy, low loss, fast rate of switching is
required. This series is ideally suited for applications where a
Capacitive discharge is utilized with a transformer to obtain pulses of very
high voltage levels in the order of several thousand volts.

Features

Extremely long life time
1. Stable performance over life
2. Insensitive performance against variations in
temperature
3. Low switching losses
4. Very short breakdown time
5. High reliability by robust design
6. RoHS compatible

Recommended Applications
Ignition circuits

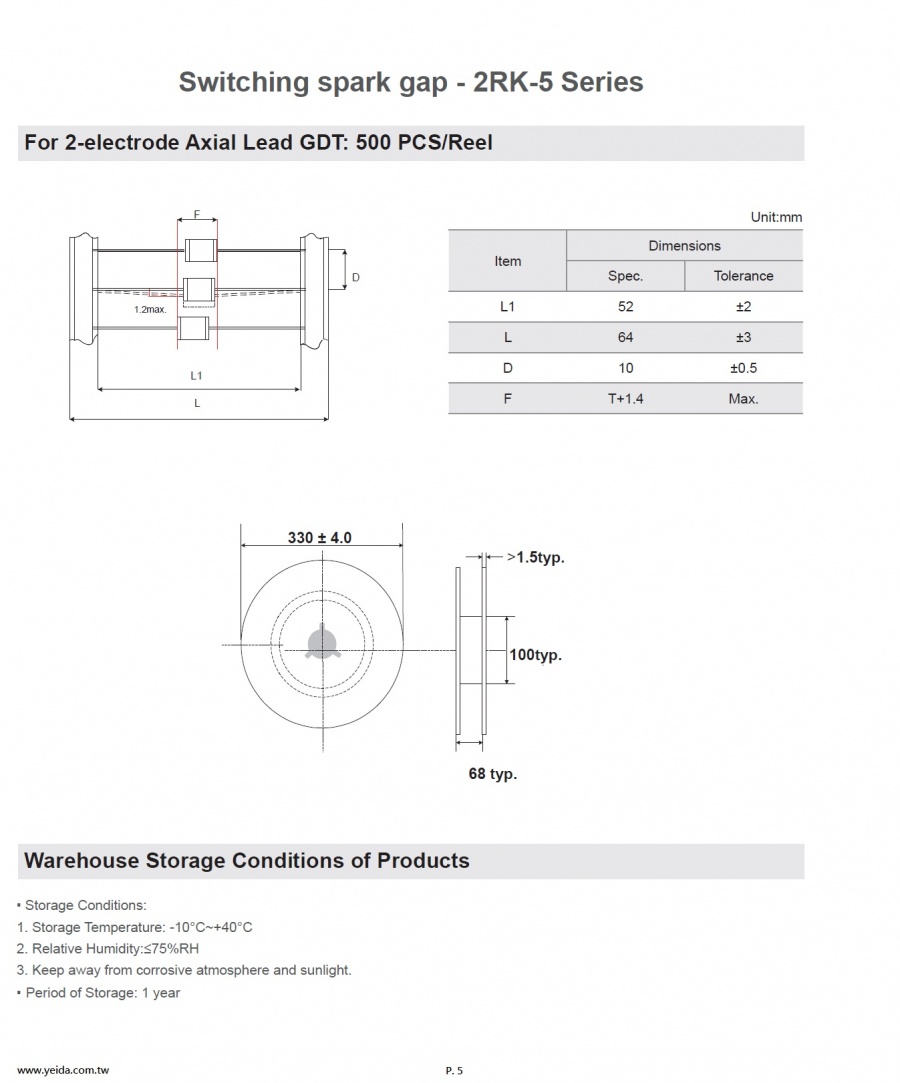

Warehouse Storage Conditions of Products

· Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight.
· Period of Storage: 1 year

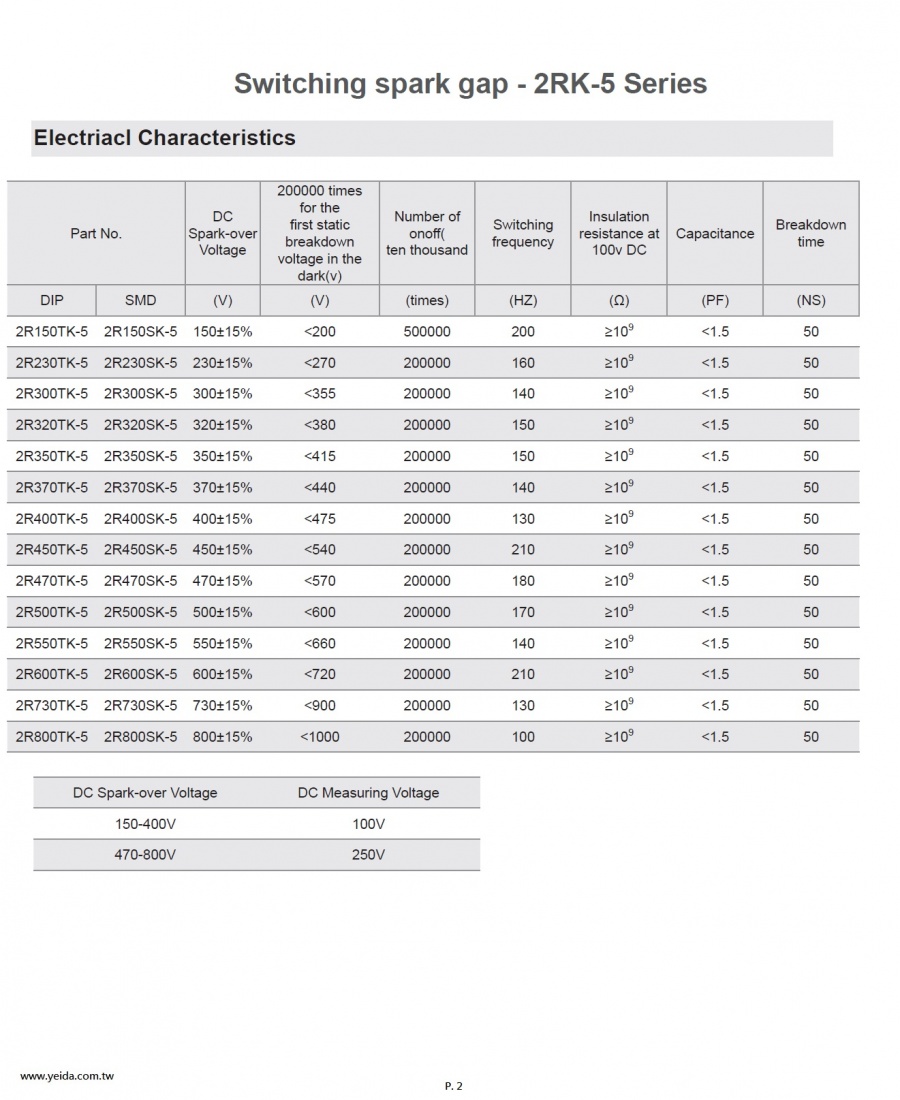

型號/PDF	100V/S(V)	Fequency(Hz)	Oerations(Times)	IRohm(GΩ)	Cj(pF)	Package
2R150SK-5	150	500000	200	≥109	<1.5	50
2R230SK-5	230	200000	160	≥109	<1.5	50
2R300SK-5	300	200000	140	≥109	<1.5	50
2R320SK-5	320	200000	150	≥109	<1.5	50
2R350SK-5	350	200000	150	≥109	<1.5	50
2R370SK-5	370	200000	140	≥109	<1.5	50
2R400SK-5	400	200000	130	≥109	<1.5	50
2R450SK-5	450	200000	210	≥109	<1.5	50
2R470SK-5	470	200000	180	≥109	<1.5	50
2R500SK-5	500	200000	170	≥109	<1.5	50
2R550SK-5	550	200000	140	≥109	<1.5	50
2R600SK-5	600	200000	210	≥109	<1.5	50
2R730SK-5	730	200000	130	≥109	<1.5	50
2R800SK-5	800	200000	100	≥109	<1.5	50
2R150SK-8	150	2000000	200	≥109	<1.5	50
型號/PDF	100V/S(V)	Fequency(Hz)	Oerations(Times)	IRohm(GΩ)	Cj(pF)	Package
2R230SK-8	230	400000	160	≥109	<1.5	50
2R300SK-8	300	400000	140	≥109	<1.5	50
2R320SK-8	320	400000	150	≥109	<1.5	50
2R350SK-8	350	400000	150	≥109	<1.5	50
2R370SK-8	370	400000	140	≥109	<1.5	50
2R400SK-8	400	400000	130	≥109	<1.5	50
2R450SK-8	450	400000	210	≥109	<1.5	50
2R470SK-8	470	400000	180	≥109	<1.5	50
2R500SK-8	500	400000	170	≥109	<1.5	50
2R550SK-8	550	400000	140	≥109	<1.5	50
2R600SK-8	600	400000	210	≥109	<1.5	50
2R730SK-8	730	400000	130	≥109	<1.5	50
2R800SK-8	800	400000	100	≥109	<1.5	50
2R150K-8S
