UL1015 Style PVC Shipboard (Boat) Wire 美規海洋遊艇船舶電線
UL1015 船舶電線
說明:
導體:軟銅絞線或鍍錫絞線。
絕緣:以顏色分類之PVC。
特性:
溫度等級:105℃。
電壓等級:600V AC, 750V DC。
通過UL VW-1及CSA FT1, FT2 耐燃試驗。
通過UL 60℃耐油試驗。
適用場所:
遊艇船舶內部設備配線使用。
UL1015 Style PVC Insulated Wire
Description:
Conductor : Strand soft bare or tinned copper
Insulation : Colour coded PVC
Characteristics:
Rated Temperature: 105℃
Rating: 600V AC, 750V DC
Passes UL VW-1 & CSA FT1, FT2 flame test
Passes UL at in 60℃ oil resistant test
Applications:
For shipboard internal wiring of appliances

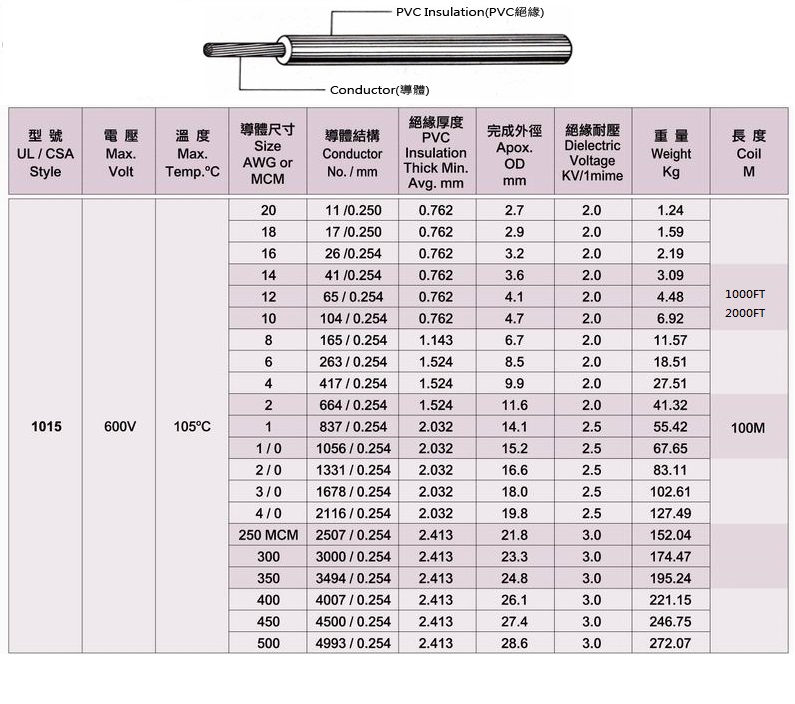

UL Style
&
CSA Type
|
Conductor AWG
|
Insulation Thickness(mm)
|
Overall Diameter(mm)
|
insulation material
|
Conductor Resistance at 20℃
(ohm/Kft)
|
Standard Put-up
|
AWG
|
No./AWG
|
Ft/Coil
|
M/Coil
|
UL 1015
CSA I A
(Stranded)
|
26
|
7/35
|
0.76
|
2.00±0.10
|
PVC
|
45.80
|
2000
|
610
|
24
|
11/35
|
2.17±0.10
|
28.70
|
2000
|
610
|
22
|
17/35
|
2.32±0.10
|
18.10
|
2000
|
610
|
20
|
21/34
|
2.47±0.10
|
11.40
|
2000
|
610
|
18
|
34/34
|
2.67±0.10
|
7.15
|
2000
|
610
|
16
|
26/30
|
3.07±0.10
|
4.44
|
2000
|
610
|
14
|
41/30
|
3.47±0.10
|
2.78
|
1000
|
305
|
12
|
65/30
|
3.95±0.10
|
1.75
|
1000
|
305
|
10
|
105/30
|
5.15±0.10
|
1.08
|
1000
|
305
|
UL 1015
CSA I A
(OS-1)
|
22
|
7/30
|
0.76
|
2.35±0.10
|
PVC
|
18.10
|
2000
|
610
|
20
|
7/28
|
2.50±0.10
|
11.4
|
2000
|
610
|
18
|
7/27
|
2.70±0.10
|
7.15
|
2000
|
610
|
UL 1015
CSA I A
(Solid)
|
26
|
1/26
|
0.76
|
2.00±0.10
|
PVC
|
43.50
|
2000
|
610
|
24
|
1/24
|
2.10±0.10
|
27.30
|
2000
|
610
|
22
|
1/22
|
2.20±0.10
|
17.20
|
2000
|
610
|
20
|
1/20
|
2.40±0.10
|
10.70
|
2000
|
610
|
18
|
1/18
|
2.60±0.10
|
6.77
|
2000
|
610
|
16
|
1/16
|
2.90±0.10
|
4.26
|
2000
|
610
|
14
|
1/14
|
3.20±0.10
|
2.68
|
1000
|
305
|
