    1000A Paired - Thermocouple(JX)

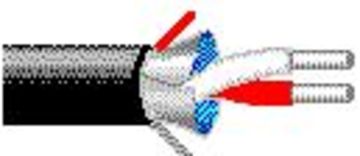

    看原圖
    Belden-1000A

    商品編號: Belden-1000A

    1000A Paired - Thermocouple(JX)
    J Type Awg16 1對 熱偶補償導線

    DESCRIPTION:
    16 AWG pairs, solid conductors, iron & constantan, overall 100% Beldfoil® shield, PVC insulation, PVC jacket.
    PHYSICAL CHARACTERISTICS :

    CONDUCTOR :
    Number of Pairs: 1
    Total Number of Conductors: 2
    AWG: 16
    Stranding: Solid
    Conductor Material: Iron & Constantan

    INSULATION :
    Insulation Material: PVC - Polyvinyl Chloride
    Nom. Insulation Wall Thickness: .017 in.
    Insulation Diameter: .085 in.
    Pair Color Code Chart:
    Number  Color
     1  White & Red


    OUTER SHIELD :
    Outer Shield Material Trade Name: Beldfoil®
    Outer Shield Type: Tape
    Outer Shield Material: Aluminum Foil-Polyester Tape
    Outer Shield %Coverage: 100 %

    OUTER SHIELD DRAIN WIRE :
    Outer Shield Drain Wire AWG: 18
    Outer Shield Drain Wire Stranding: 16x30
    Outer Shield Drain Wire Conductor Material: TC - Tinned Copper

    OUTER JACKET :

    Outer Jacket Material: PVC - Polyvinyl Chloride
    Outer Jacket Ripcord: Yes

    OVERALL NOMINAL DIAMETER :
    Overall Nominal Diameter: .248 in.
    MECHANICAL CHARACTERISTICS :
    Operating Temperature Range: -30°C To +105°C
    UL Temperature Rating: 105°C
    Bulk Cable Weight: 36 lbs/1000 ft.
    Max. Recommended Pulling Tension: 83 lbs.
    Min. Bend Radius (Install): 2.5 in.
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :

    APPLICABLE STANDARDS :
    NEC/(UL) Specification: CMG, PLTC, ITC
    CEC/C(UL) Specification: CMG
    ANSI Specification: MC 96.1-1982 Type JX

    FLAME TEST :
    UL Flame Test: UL1685 FT4 Loading
    CSA Flame Test: FT4

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N
    ELECTRICAL CHARACTERISTICS :
    Nom. Inductance: .18 µH/ft
    Nom. Capacitance Conductor to Shield @ 1 KHz: 51 pF/ft
    Nom. Capacitance Conductor to Conductor @ 1 KHz: 25 pF/ft
    Nom. Conductor DC Resistance @ 20 Deg. C:
    Description  Nom. Conductor DC Resistance @ 20 Deg. C (Ω/1000 ft)
     IRON  24
     CONSTANTAN  121

    Nominal Outer Shield DC Resistance @ 20 Deg. C: 38 Ω/1000 ft
    Max. Operating Voltage - Other: 300 V RMS
    PUT-UPS AND COLORS:
    Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
     1000A 0101000  2 #16 PVC FS PVC  1000  42  BLACK  C
     1000A 01010000  2 #16 PVC FS PVC  10000  420  BLACK  C Z
