    1023A Paired - Thermocouple Extension Cable(TX)
    看原圖
    Belden-1023A

    商品編號: Belden-1023A

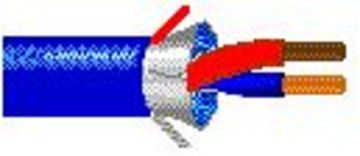

    1023A Paired - Thermocouple Extension Cable(TX) T Type Awg16 1對
    熱偶補償導線

    DESCRIPTION:
    16 AWG pairs solid conductors, overall Beldfoil shield (100% coverage), PVC insulation, PVC jacket.


    PHYSICAL CHARACTERISTICS :


    CONDUCTOR :
    Number of Pairs: 1
    Total Number of Conductors: 2
    AWG: 16
    Stranding: Solid
    Conductor Material: Copper & Constantan

    INSULATION :
    Insulation Material: PVC - Polyvinyl Chloride
    Nom. Insulation Wall Thickness: .017 in.
    Insulation Diameter: .085 in.
    Pair Color Code Chart:

    Number Color
    1 Blue & Red



    OUTER SHIELD :
    Outer Shield Material Trade Name: Beldfoil®
    Outer Shield Type: Tape
    Outer Shield Material: Aluminum Foil-Polyester Tape
    Outer Shield %Coverage: 100 %

    OUTER SHIELD DRAIN WIRE :
    Outer Shield Drain Wire AWG: 18
    Outer Shield Drain Wire Stranding: 16x30
    Outer Shield Drain Wire Conductor Material: TC - Tinned Copper

    OUTER JACKET :

    Outer Jacket Material: PVC - Polyvinyl Chloride

    OVERALL NOMINAL DIAMETER :
    Overall Nominal Diameter: .248 in.
    MECHANICAL CHARACTERISTICS :

    Operating Temperature Range: -30°C To +105°C
    Non-UL Temperature Rating: 105°C
    Bulk Cable Weight: 38 lbs/1000 ft.
    Max. Recommended Pulling Tension: 85 lbs.
    Min. Bend Radius (Install): 2.5 in.
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :


    APPLICABLE STANDARDS :
    NEC/(UL) Specification: CMG, PLTC, ITC
    CEC/C(UL) Specification: CMG
    EU CE Mark (Y/N): Yes
    EU RoHS Compliant (Y/N): Yes
    EU RoHS Compliance Date (mm/dd/yyyy):: 04/01/2005
    ANSI Specification: MC 96.1-1982 Type TX

    FLAME TEST :
    UL Flame Test: UL1685 FT4 Loading
    CSA Flame Test: FT4
    ICEA Flame Test: T-29-520

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N
    ELECTRICAL CHARACTERISTICS :

    Nom. Inductance: .18 µH/ft
    Nom. Capacitance Conductor to Shield @ 1 KHz: 51 pF/ft
    Nom. Capacitance Conductor to Conductor @ 1 KHz: 25 pF/ft
    Nom. Conductor DC Resistance @ 20 Deg. C:

    Description Nom. Conductor DC Resistance @ 20 Deg. C (Ω/1000 ft)
    CHROMEL 10
    CONSTANTAN 121


    Nominal Outer Shield DC Resistance @ 20 Deg. C: 38 Ω/1000 ft
    Max. Operating Voltage - Other: 300 V RMS
    PUT-UPS AND COLORS:

    Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
    1023A 01310000 2 #16 PVC FS PVC 10000 470 BLUE, DARK C Z
