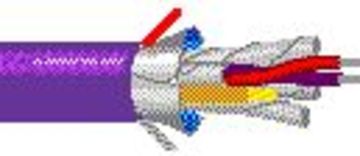

    1112A Paired - Thermocouple(EX)-4P
    看原圖
    		Belden-1112A

    商品編號: Belden-1112A

    11    12A Paired - Thermocouple(EX)-4P Awg 20 4對 E Type 個別隔離熱偶補償導線

    DESCRIPTION:
    20 AWG pairs, solid conductors, chromel & constantan, individually shielded, overall 100% Beldfoil® shield, PVC insulation, PVC jacket.


    PHYSICAL CHARACTERISTICS :


    CONDUCTOR :
    Number of Pairs: 4
    Number of Conductors: 1
    Total Number of Conductors: 9
    AWG: 20, 22
    Multi-Pairs/Conductors:

    Number of Pairs/Conductors AWG Stranding Conductor Material Conductor Diameter (in.)
    2 Pairs 20 Solid Chromel
    2 Pairs 20 Solid Constantan
    1 Conductor 22 7x30 BC - Bare Copper


    Stranding: Solid, 7x30
    Conductor Material: Chromel & Constantan, BC - Bare Copper

    INSULATION :
    Insulation Material: PVC - Polyvinyl Chloride
    Nom. Insulation Wall Thickness: .016 in.
    Lay Length: 2.5 in.
    Twists/ft.: 4.8

    INNER SHIELD :
    Inner Shield Material Trade Name: Beldfoil®
    Inner Shield Type: Tape
    Inner Shield Material: Aluminum Foil-Polyester Tape
    Inner Shield % Coverage: 100 %
    Inner Shield Drain Wire AWG: 22
    Inner Shield Drain Wire Stranding: 7x30
    Inner Shield Drain Wire Conductor Material: TC - Tinned Copper

    OVERALL CABLING :
    Overall Cabling Lay Length: 5.9 in.

    OUTER SHIELD :
    Outer Shield Material Trade Name: Beldfoil®
    Outer Shield Type: Tape
    Outer Shield Material: Aluminum Foil-Polyester Tape
    Outer Shield %Coverage: 100 %

    OUTER SHIELD DRAIN WIRE :
    Outer Shield Drain Wire AWG: 20
    Outer Shield Drain Wire Stranding: 7x28
    Outer Shield Drain Wire Conductor Material: TC - Tinned Copper

    OUTER JACKET :

    Outer Jacket Material: PVC - Polyvinyl Chloride

    OVERALL NOMINAL DIAMETER :
    Overall Nominal Diameter: .383 in.
    MECHANICAL CHARACTERISTICS :

    Operating Temperature Range: -30°C To +105°C
    Non-UL Temperature Rating: 105°C
    Bulk Cable Weight: 97 lbs/1000 ft.
    Max. Recommended Pulling Tension: 159 lbs.
    Min. Bend Radius (Install): 4.1 in.
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :


    APPLICABLE STANDARDS :
    NEC/(UL) Specification: CMG, PLTC, ITC
    CEC/C(UL) Specification: CMG
    CSA Specification: FT4
    IEEE Specification: 1202

    FLAME TEST :
    UL Flame Test: UL1685 FT4 Loading

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N
    ELECTRICAL CHARACTERISTICS :

    Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 10.6 Ω/1000 ft
    Nominal Outer Shield DC Resistance @ 20 Deg. C: 6.8 Ω/1000 ft
    Max. Operating Voltage - Other: 300 V RMS
    NOTES :

    Notes: Chromel & Constantan = "Constantan is a Hoskins Manufacturing Company trademark."
