    3112A Paired - Thermocouple Extension Cable(KX)-1P
    看原圖
    		Belden-3112A

    商品編號: Belden-3112A

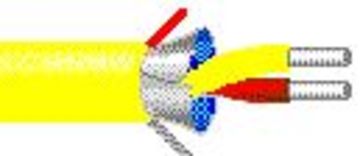

    3112A Paired - Thermocouple Extension Cable(KX)-1P 1對 K Type     熱偶補償導線

    DESCRIPTION:
    20 AWG pairs solid conductors, PVC insulation, overall Beldfoil® shield (100% coverage), PVC jacket.


    PHYSICAL CHARACTERISTICS :


    CONDUCTOR :
    Number of Pairs: 1
    Total Number of Conductors: 2
    AWG: 20
    Stranding: Solid
    Conductor Material: Chromel & Alumel

    INSULATION :
    Insulation Material: PVC - Polyvinyl Chloride
    Nom. Insulation Wall Thickness: .016 in.
    Lay Length: 2.0 in.
    Twists/ft.: 6.0
    Pair Color Code Chart:

    Number Color
    1 Yellow & Red



    OUTER SHIELD :
    Outer Shield Material Trade Name: Beldfoil®
    Outer Shield Type: Tape
    Outer Shield Material: Aluminum Foil-Polyester Tape
    Outer Shield %Coverage: 100 %

    OUTER SHIELD DRAIN WIRE :
    Outer Shield Drain Wire AWG: 22
    Outer Shield Drain Wire Stranding: 7x28
    Outer Shield Drain Wire Conductor Material: TC - Tinned Copper

    OUTER JACKET :

    Outer Jacket Material: PVC - Polyvinyl Chloride
    Outer Jacket Ripcord: Yes

    OVERALL NOMINAL DIAMETER :
    Overall Nominal Diameter: .206 in.
    MECHANICAL CHARACTERISTICS :

    Operating Temperature Range: -30°C To +105°C
    Non-UL Temperature Rating: 105°C
    Bulk Cable Weight: 26 lbs/1000 ft.
    Max. Recommended Pulling Tension: 40 lbs.
    Min. Bend Radius (Install): 2.1 in.
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :


    APPLICABLE STANDARDS :
    NEC/(UL) Specification: CMG, PLTC, ITC
    CEC/C(UL) Specification: CMG
    CSA Specification: FT4
    IEEE Specification: 1202
    EU RoHS Compliant (Y/N): Yes
    EU RoHS Compliance Date (mm/dd/yyyy):: 04/01/2005
    ANSI Specification: MC 96.1-1982 Type KX

    FLAME TEST :
    UL Flame Test: UL1685 FT4 Loading
    ICEA Flame Test: T-29-520

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N
    ELECTRICAL CHARACTERISTICS :

    Nom. Conductor DC Resistance @ 20 Deg. C:

    Description Nom. Conductor DC Resistance @ 20 Deg. C (Ω/1000 ft)
    CHROMEL 400.4
    ALUMEL 161.1


    Nominal Outer Shield DC Resistance @ 20 Deg. C: 10.6 Ω/1000 ft
    Max. Operating Voltage - Other: 300 V RMS
    NOTES :

    Notes: Chromel & Alumel = "Chromel and Alumel are Hoskins Manufacturing Company trademarks."
    PUT-UPS AND COLORS:

    Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
    3112A 0045000 1 FS PR #20 PVC KX 5000 135 YELLOW C Z
