    首頁 > > Thermocouple-ExtensionWire

    328-2021K 20-2C STR THERMOCOUPLE TYPE K DUPLEX GLS BRD/GLS BRD JKT 482C CONT補償導線
    看原圖
    		YANX-328-2021K


    商品編號: YAnx-328-2021K
    328-2021K 20-2C STR THERMOCOUPLE TYPE K DUPLEX GLS BRD/GLS BRD JKT 482C CONT補償導線

    Common Specifications
    Common commercially available thermocouples are specified by ISA (Instrument Society of America) types. Type E, J, K, and T are base-metal thermocouples and can be used up to about 1000°C (1832°F). Type S, R, and B are noble-metal thermocouples and can be used up to about 2000°C (3632°F).

    The following table provides a summary of basic thermocouple properties. For more detailed specifications of individual thermocouples, please consult the sensor manufacturer.

    ISA Material
    (+ & -)    		 Temperature Range
    °C
    (°F)    		 Sensitivity@
    25°C (77°F)
    µV/°C
    (µV/°F)    		 Error* App.**
    E Chromel & Constantan
    (Ni-Cr & Cu-Ni)    		 -270~1000
    (-450~1800)    		 60.9
    (38.3)    		 LT:±1.67°C(±3°F)
    HT:±0.5%    		 I,O
    J Iron & Constantan
    (Fe & Cu-Ni)    		 -210~1200
    (-350~2200)    		 51.7
    (28.7)    		 LT:±2.2~1.1°C(±4~2°F)
    HT:±0.375~0.75%    		 I,O,R,V
    K Chromel & Alumel
    (Ni-Cr & Ni-Al)    		 -270~1350
    (-450~2500)    		 40.6
    (22.6)    		 LT:±2.2~1.1°C(±4~2°F)
    HT:±0.375~0.75%    		 I,O
    T Copper & Constantan
    (Cu & Cu-Ni)    		 -270~400
    (-450~750)    		 40.6
    (22.6)    		 LT:±1~2%
    HT:±1.5% or ±0.42°C(±0.75°F)    		 I,O,R,V
    R Platinum & 87% Platinum/ 13% Rhodium
    (Pt & Pt-Rh)    		 -50~1750
    (-60~3200)    		 6
    (3.3)    		 LT:±2.8°C(±5°F)
    HT:±0.5%    		 I,O
    S Platinum & 90% Platinum/ 10% Rhodium
    (Pt & Pt-Rh)    		 -50~1750
    (-60~3200)    		 6
    (3.3)    		 LT:±2.8°C(±5°F)
    HT:±0.5%    		 I,O
    B 70% Platinum/ 30% Rhodium & 94% Platinum/ 6% Rhodium
    (Pt-Rh & Pt-Rh)    		 -50~1750
    (-60~3200)    		 6
    (3.3)    		 LT:±2.8°C(±5°F)
    HT:±0.5%    		 I,O
    *: LT = Low temperature range, HT = High temperature range
    **: I = Inert media, O = Oxidizing media, R = Reducing media, V = Vacuum
      Constantan, Alumel, and Chromel are trade names of their respective owners.
    　

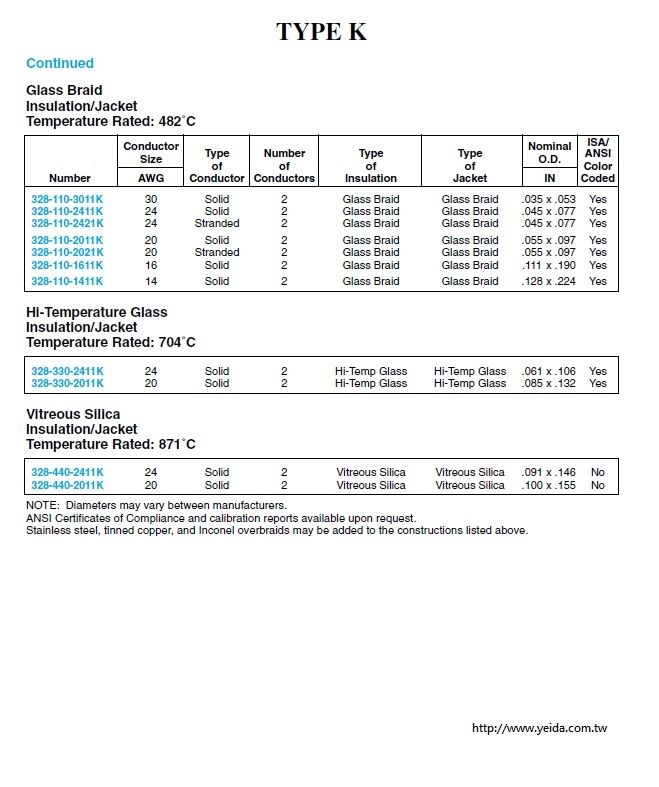

    Description 20-2C STR THERMOCOUPLE TYPE K DUPLEX GLS BRD/GLS BRD JKT 482C CONT

    Attributes
    Gauge: 20 AWG (AMERICAN WIRE GAUGE)
    CONDUCTOR: Count 2 CONDUCTOR
    Cond. Type STRANDED CONDUCTOR
    THERMOCOUPLE: YES - THIS IS A THERMOCOUPLE WIRE
    Therm. Type CHROMEL/ALUMEL TYPE K
    Insulation Material: GL-BRD-GLASS BRAID
    SCREEN/SHIELD: NO SHIELD
    Jacketing Material: GL-BRD-GLASS BRAID
    ARMOR: NO ARMOR
    Temperature Rating: 482 DEGREES CENTIGRADE
    Voltage Rating: 300 VOLTS AC
    Conductor Size AWG 20
    No. of Conductors 2
    Nominal O.D. (in.) 0.055 x 0.097
    Type of Conductor Stranded
    Type of Insulation Glass braid
    Type of Jacket Glass braid
    Unspsc Code 26121628
