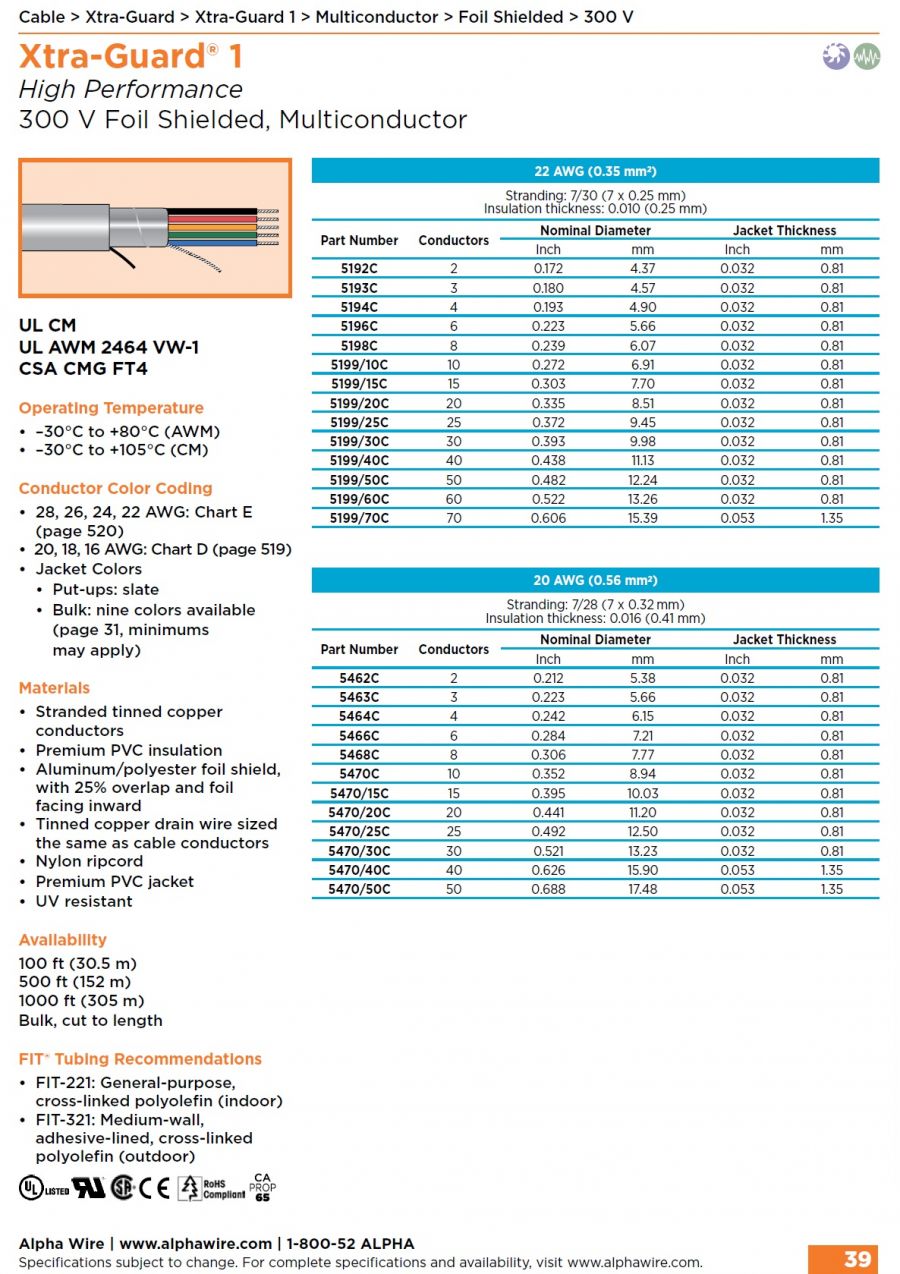

    ALPHA 5192C Xtra-Guard® 1, Awg22 to 20 Foil Shielded, Multiconductor 300V UL CM, 2464 VW-1, CSA CMG FT4 多芯高性能鋁箔隔離控制电缆
    看原圖
    		ALPHA-5192C

    商品編號: ALPHA-5192C , google,yahoo, 工業4.0

    ALPHA5170 Xtra-Guard® 1, Awg22 to 20 Foil Shielded, Multiconductor 300V UL CM, 2464 VW-1, CSA CMG FT4 多芯高性能鋁箔隔離電腦控制電缆

    Alpha5192C , Alpha5193C, Alpha5194C , Alpha5196C , Alpha5198C , Alpha5199/10C, Alpha5199/15C, Alpha5199/50C, Alpha5462C, Alpha5463C, Alpha5464C, Alpha5466C, Alpha5468C, Alpha5470C,Alpha5470/15C, Alpha5470/20C, Alpha5470/50C, Alpha5470/30C, Alpha5470/25C, Alpha5470/40C



    Xtra-Guard® 1 High Performance

    300 V Foil Shielded, Multiconductor
    UL CM UL AWM 2464 VW-1
    CSA CMG FT4


    Operating Temperature
    • –30°C to +80°C (AWM)
    • –30°C to +105°C (CM)
    Conductor Color Coding
    • 28, 26, 24, 22 AWG: Chart E (page 520)
    • 20, 18, 16 AWG: Chart D (page 519)
    • Jacket Colors
    • Put-ups: slate
    • Bulk: nine colors available
        (page 31, minimums may apply)
    Materials
    • Stranded tinned copper conductors
    • Premium PVC insulation
    • Aluminum/polyester foil shield,
         with 25% overlap and foil facing inward
    • Tinned copper drain wire sized
         the same as cable conductors
    • Nylon ripcord
    • Premium PVC jacket
    • UV resistant
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    　

    FIT® Tubing Recommendations
    • FIT-221: General-purpose, cross-linked polyolefin (indoor)
    • FIT-321: Medium-wall,
         adhesive-lined, cross-linked polyolefin (outdoor)

    Xtra-Guard ® 1 – 坚韧的高性能聚氯乙烯电缆 Ultraviolet LightEMI Noise

    • 高性能电缆，适用于一般用途
    • 独特的优质聚氯乙烯绝缘层和护套，便于在狭窄空间布线
    • 耐油，符合 UL 耐油级别 I 和第 43 类
    • 可抵抗高达 105 摄氏度的环境温度
    • 与 Alpha高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性能
      Part # Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
    Alpha5192C Conductor  FOIL  300  22  2  0.172  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5193C Conductor  FOIL  300  22  3  0.18  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5194C Conductor  FOIL  300  22  4  0.193  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5196C Conductor  FOIL  300  22  6  0.223  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5198C Conductor  FOIL  300  22  8  0.239  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5199/10C Conductor  FOIL  300  22  10  0.272  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5199/15C Conductor  FOIL  300  22  15  0.303  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5199/20C Conductor  FOIL  300  22  20  0.335  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5199/25C Conductor  FOIL  300  22  25  0.372  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5199/30C Conductor  FOIL  300  22  30  0.393  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5199/40C Conductor  FOIL  300  22  40  0.438  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5199/50C Conductor  FOIL  300  22  50  0.482  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5199/60C Conductor  FOIL  300  22  60  0.522  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5199/70C Conductor  FOIL  300  22  70  0.606  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 10002, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
      Part # Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
    Alpha5462C Conductor  FOIL  300  20  2  0.212  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5463C Conductor  FOIL  300  20  3  0.223  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5464C Conductor  FOIL  300  20  4  0.242  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5466C Conductor  FOIL  300  20  6  0.284  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5468C Conductor  FOIL  300  20  8  0.306  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5470/15C Conductor  FOIL  300  20  15  0.395  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5470/20C Conductor  FOIL  300  20  20  0.441  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5470/25C Conductor  FOIL  300  20  25  0.492  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5470/30C Conductor  FOIL  300  20  30  0.521  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5470/40C Conductor  FOIL  300  20  40  0.626  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5470/50C Conductor  FOIL  300  20  50  0.688  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1
    Alpha5470C Conductor  FOIL  300  20  10  0.352  CA Prop 65, CE, CSA CMG, CSA FT4, IEC 60332-1, IEC 60332-2, UL 60C OIL, UL AWM 1569, UL AWM 2464, UL CM, UL SUN RES, UL VW-1

    Alpha5192C , Alpha5193C, Alpha5194C , Alpha5196C , Alpha5198C , Alpha5199/10C, Alpha5199/15C, Alpha5199/50C, Alpha5462C, Alpha5463C, Alpha5464C, Alpha5466C, Alpha5468C, Alpha5470C,Alpha5470/15C, Alpha5470/20C, Alpha5470/50C, Alpha5470/30C, Alpha5470/25C, Alpha5470/40C
