    首頁 > > ALPHA-Xtra-Guard® 1 Multiconductor (UNSHIELDED) 多芯高性能無隔離控制电缆

    ALPHA-5073C PVC-PVC Awg16 x 3C 300V CA Prop 65, CE, CSA CMG, FT4, UL AWM 1569, UL 2464, CM, VW/1 Xtra-Guard® 1 高性能电缆
    看原圖

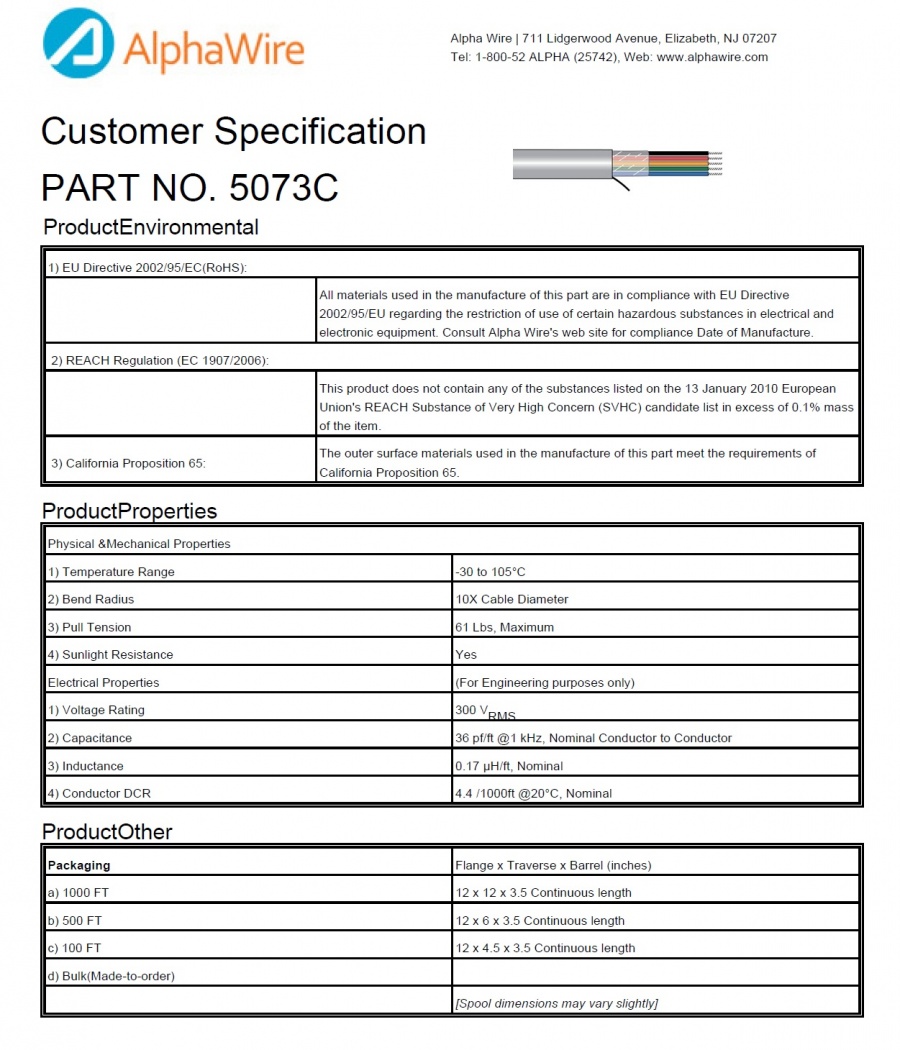

    		ALPHA-5073C

    商品編號: ALPHA-5073C

    ALPHA-5073C PVC-PVC Awg16 x 3C 300V CA Prop 65, CE, CSA CMG, FT4, UL AWM 1569, UL 2464, CM, VW/1 Xtra-Guard® 1 高性能电缆

    部件号 Type Shielding Voltage AWG # of Elements Jacket Diameter Applicable Specifications
    5073C Conductor UNSHIELDED 300 16 3 0.264 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1

    Xtra-Guard® 1 - High performance in a tough PVC cable Ultraviolet LightEMI Noise

    • High-performance cable for general-purpose applications
    • Features a unique, premium-grade PVC insulation and jacket for easier routing of cable in small spaces
    • Provides resistance to oils per UL Oil Res I and Class 43
    • Designed for use in ambient temperatures up to 105°C
    • Provides exceptional protection against EMI interference when Supra-Shield is specified



    　 Part # Type　 Shielding Voltage　 AWG # of Elements

    　

    		 Jacket Diameter
    5070/40C Conductor UNSHIELDED 300 18 40 0.688 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5070/50C Conductor UNSHIELDED 300 18 50 0.758 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5070/60C Conductor UNSHIELDED 300 18 60 0.881 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5070C Conductor UNSHIELDED 300 18 10 0.384 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5072/1C Conductor UNSHIELDED 300 16 2 0.25 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5072C Conductor UNSHIELDED 300 16 2 0.25 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5073/1C Conductor UNSHIELDED 300 16 3 0.264 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5073C Conductor UNSHIELDED 300 16 3 0.264 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5074C Conductor UNSHIELDED 300 16 4 0.288 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5076C Conductor UNSHIELDED 300 16 6 0.343 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5078C Conductor UNSHIELDED 300 16 8 0.372 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5080/15C Conductor UNSHIELDED 300 16 15 0.488 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5080/20C Conductor UNSHIELDED 300 16 20 0.547 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5080/25C Conductor UNSHIELDED 300 16 25 0.656 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5080/30C Conductor UNSHIELDED 300 16 30 0.694 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5080/40C Conductor UNSHIELDED 300 16 40 0.775 CA Prop 65, CE, CSA CMG, CSA FT4, UL - VW-1, UL AWM 1569, UL AWM 2464, UL CM
    5080/50C Conductor UNSHIELDED 300 16 50 0.917 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5080C Conductor UNSHIELDED 300 16 10 0.432 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 1569, UL AWM 2464, UL CM, UL VW/1
    5201C Conductor UNSHIELDED 300 24 7 0.263 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2343, UL CM, UL VW/1
    5202C Conductor UNSHIELDED 300 24 12 0.313 CA Prop 65, CE, CSA CMG, CSA FT4, UL AWM 10002, UL AWM 2343, UL CM, UL VW/1
