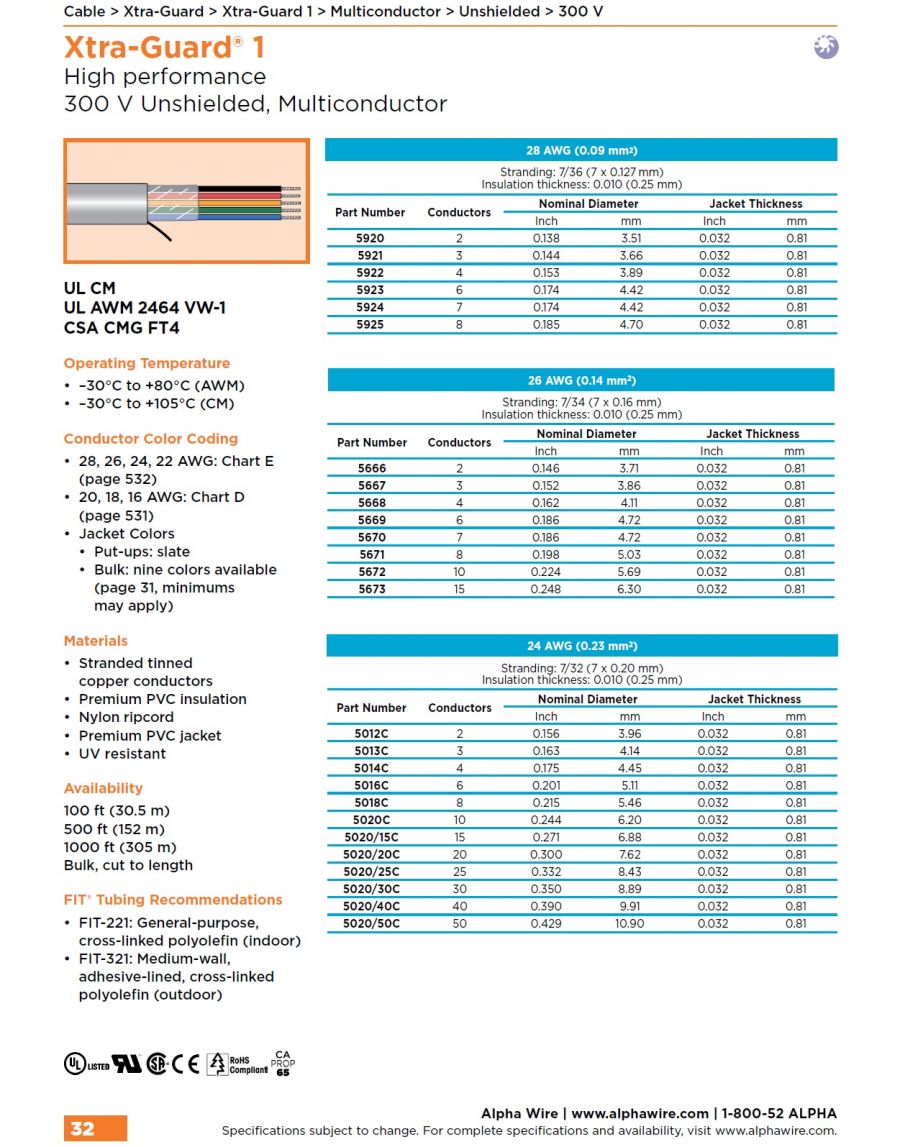

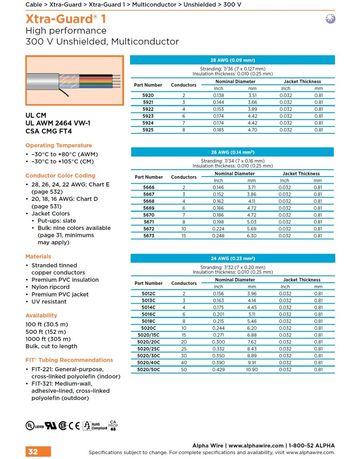

Xtra-Guard® 1 High performance
300 V Unshielded, Multiconductor
UL CM UL AWM 2464 VW-1 CSA CMG FT4
　

Operating Temperature
• –30°C to +80°C (AWM)
• –30°C to +105°C (CM)
Conductor Color Coding
• 28, 26, 24, 22 AWG: Chart E (page 532)
• 20, 18, 16 AWG: Chart D (page 531)
• Jacket Colors
• Put-ups: slate
• Bulk: nine colors available (page 31, minimums may apply)
Materials
• Stranded tinned copper conductors
• Premium PVC insulation
• Nylon ripcord
• Premium PVC jacket
• UV resistant
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
　

FIT® Tubing Recommendations
• FIT-221: General-purpose, cross-linked polyolefin (indoor)
• FIT-321: Medium-wall, adhesive-lined, cross-linked polyolefin (outdoor)

Xtra-Guard® 1 - High performance in a tough PVC cable  High-performance cable for general-purpose applications Features a unique, premium-grade PVC insulation and jacket for easier routing of cable in small spaces Provides resistance to oils per UL Oil Res I and Class 43 Designed for use in ambient temperatures up to 105°C Provides exceptional protection against EMI interference when Supra-Shield is specified Xtra-Guard® 1 高性能电缆 　 Xtra-Guard ® 1 – 坚韧的高性能聚氯乙烯电缆  高性能电缆，适用于一般用途 独特的优质聚氯乙烯绝缘层和护套，便于在狭窄空间布线 耐油，符合 UL 耐油级别 I 和第 43 类 可抵抗高达 105 摄氏度的环境温度 与 Alpha高性能屏蔽系统 Supra-Shield® 结合使用时，具有优异的抗电磁干扰/射频干扰性能
